In the era of experience economy, ABXLED redefines the value of the floor with innovative technology and launches a high-load-bearing interactive floor tile LED screen solution, upgrading the traditional floor into an intelligent business platform that integrates display, interaction, and traffic diversion!
—— Every step is a business opportunity, turning the floor into an intelligent interactive space!
| ABXLED DF Series Floor led screen Specification | |||||
| ITEM | UNIT | RD-1.9 | RD-2.5 | RD-2.9 | RD-3.9 |
| Pixel Pitch | mm | 1.95 | 2.5 | 2.976 | 3.91 |
| Pixel Matrix Per | Pixel/sqm | 262144 | 160000 | 112896 | 65536 |
| Module Pixel structure | N/A | SMD1515 | SMD1515 | SMD1515 | SMD1921 |
| Brightness | nits | 800-Nits | 800-3000Nits | 800-3000Nits | 800-3000Nits |
| Scan | N/A | 1/32 | 1/25 | 1/42 | 1/32 |
| LED Module Resolution | Pixel | 128*128 | 96×96 | 84×84 | 64×64 |
| Power Con. (Max / Avg) | W/sqm | 800/240 | |||
| Module Dimension | mm | 250x250 | |||
| Cabinet Dimension | mm | 500x500x90 /500x1000x90 | |||
| Cabinet Weight | kg | 14.8kg/25.8KG | |||

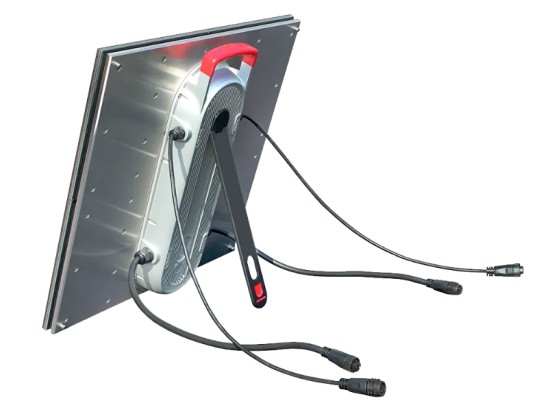

| Service Access | N/A | Rear | |||
| View angle | N/A | 160°/ 140° | |||
| Refresh Rate | Hz | 3840 | |||
| Grey Scale (bit) | bit | 14~16 | |||
| IP Rate | IP | IP31/65 | |||
| Life span | hrs | 100000 hrs | |||
| Working Temperature | ℃ | -30 ~ +60 ℃ | |||
| Storage Temperature | ℃ | -30 ~ +60 ℃ | |||
| Power Supply | V | AC100-240V(50-60Hz) | |||
| Color temperature | N/A | 3000-10000 K(adjustable) | |||
The revolutionary commercial value of floor LED screens
1. Immersive scene marketing
92% of consumers will actively participate in interactive content on the ground
Retail space applications can extend the length of stay by 3-5 times
Brand memory increased by 400% vs. traditional advertising
2. New dimension of space value-added
√ Mall atrium: advertising revenue $150-180/㎡/month
√ Brand flagship store: store conversion rate increased by 250%
√ Exhibition venue: interactive experience satisfaction reached 98%
3. Data empowerment management
Heat map analysis of customer flow
Scan code interaction to obtain user portraits
Advertising effect can be accurately quantified
Eight technological breakthroughs of ABXLED floor tile LED screen

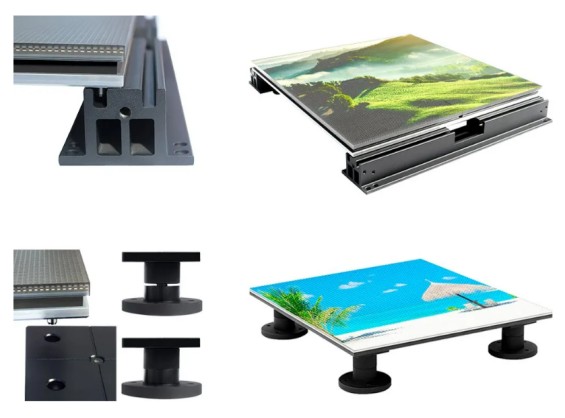

Super strong load-bearing design
2 tons/㎡ load capacity (twice the industry standard)
Can add military-grade tempered glass surface layer, Mohs hardness reaches 8 levels

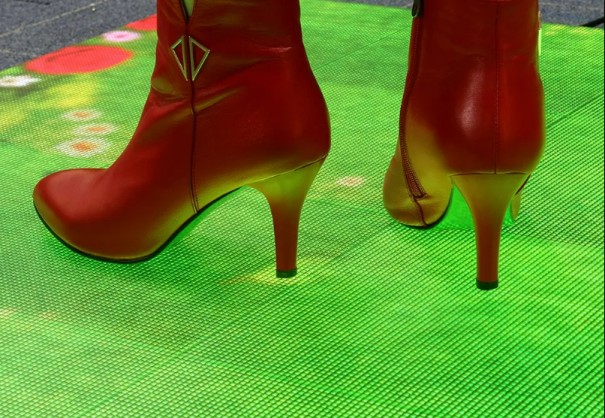

Perfect interactive experience
Millisecond touch response (delay <5ms)
Supports multi-person interaction (up to 16 touch points)

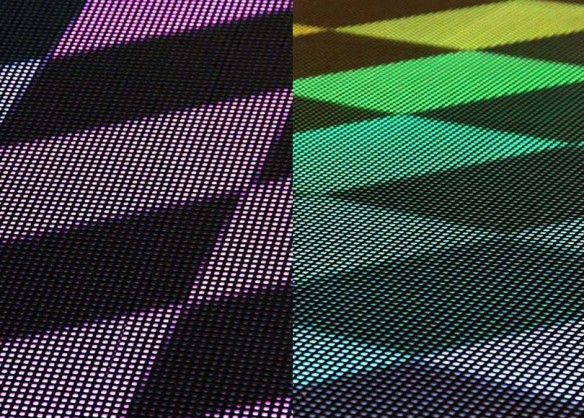

Excellent display performance
P2.5, P2.97, P3.91 high-density pixels optional
Intelligent management system
Remote cluster control (thousands of screens synchronized)
Timed scene automatic switching
All-environment adaptation

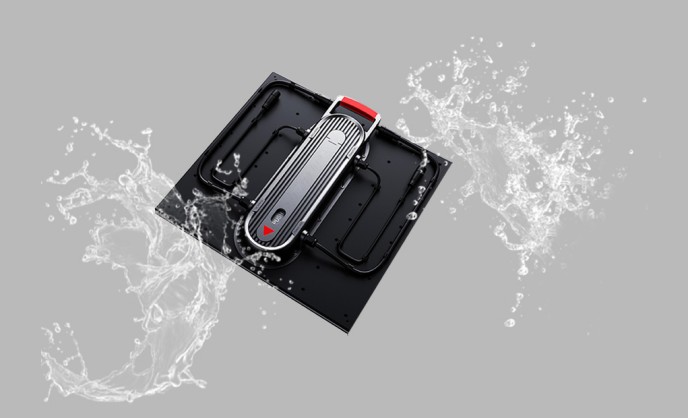

IP65 waterproof grade (washable)
-30℃~60℃ wide temperature working
High efficiency and energy saving
Power consumption per ㎡ <200W (50% power saving)
Optional solar power supply
Convenient maintenance

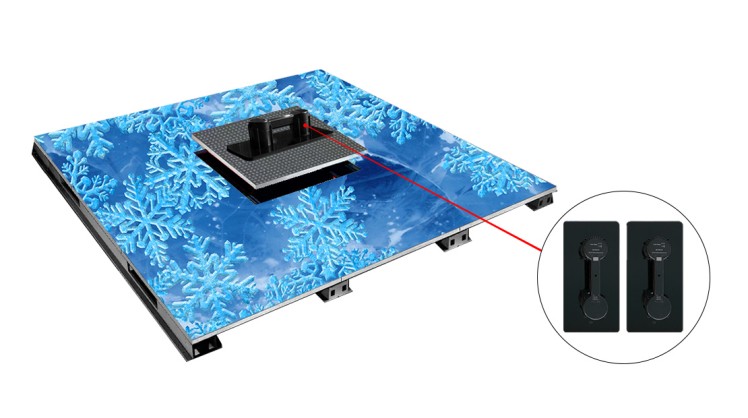

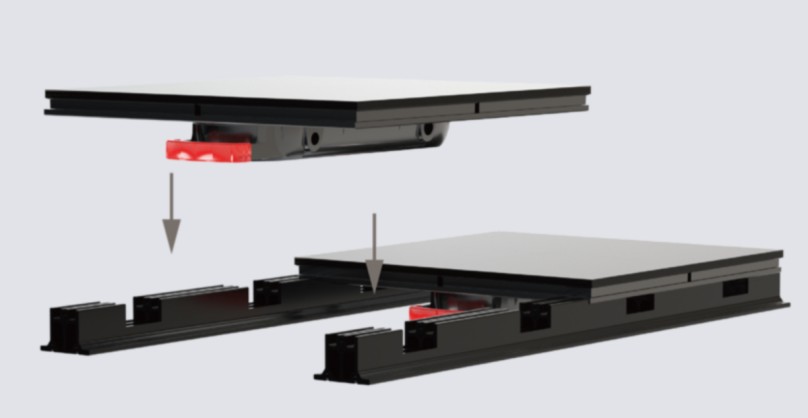

Modular quick-disassembly design (single block replacement <3 minutes)
Fault self-diagnosis system
Content ecology
Provide interactive template library (including AR games)
Customized development by professional team
ABXLED's unique brand advantage
✅ Floor tile screen expert: 8 years of focus on floor display technology
✅ National standard setter: main author of "Technical Specifications for Interactive Floor Tile Screens"
✅ Military-grade quality: passed 1 million stampede tests
✅ Global landmark cases: serving top projects such as the Beijing Winter Olympics and the Dubai World Expo
✅ Full-chain service: escort from structural design to content development
