ABXLED Oi series 960x960 Outdoor LED display
The ABXLED Oi Series is a premium fixed-installation outdoor LED display engineered for exceptional visual performance and long-term reliability. Utilizing high-brightness SMD packaging technology, it delivers vivid, smooth imagery while withstanding demanding outdoor environments through robust construction and advanced thermal management.
- Product Details
- Technical Specification
Key Features
1.Superior Visual Performance
· High-brightness SMD technology ensures vibrant, clear content display
· Premium driver ICs deliver exceptional color uniformity and contrast
· High refresh rates and grayscale performance eliminate motion blur
· Consistent brightness levels maintain visibility in direct sunlight
2.Robust Cabinet Construction
· Heat-treated iron framework enhances durability and heat resistance
· High structural hardness withstands extreme weather conditions
· Excellent wind and cold resistance for year-round operation
· Lightweight yet sturdy design simplifies installation
3. Efficient Thermal Management
· Quad aerofoil fan system per cabinet ensures immediate heat dissipation
· High-capacity ventilation: 6.6 m³/min airflow
· Rapid air circulation: 25 complete air changes per minute
· Maintains optimal operating temperatures in all conditions
4. All-Weather Reliability
· IP65 certified dustproof and waterproof protection
· Advanced UV resistance prevents color degradation
· Stable operation through rain, snow, and temperature extremes
· ABXLED proprietary protection technology ensures consistent performance
5. Seamless Viewing Experience
· Precision engineering enables flawless screen splicing
· 140° wide viewing angle (horizontal and vertical)
· Uninterrupted large-scale video displays
· Natural image reproduction from any viewing position
6. User-Friendly Design
· Integrated handles for easy cabinet handling and positioning
· Compact structure simplifies transportation and installation
· Maintenance-accessible components reduce service time
Technical Specifications
· Protection Rating: IP65
· Viewing Angle: 140° (H/V)
· Cooling System: 4 aerofoil fans per cabinet
· Ventilation Capacity: 6.6 m³/min airflow
· Construction: Heat-treated iron frame
Applications

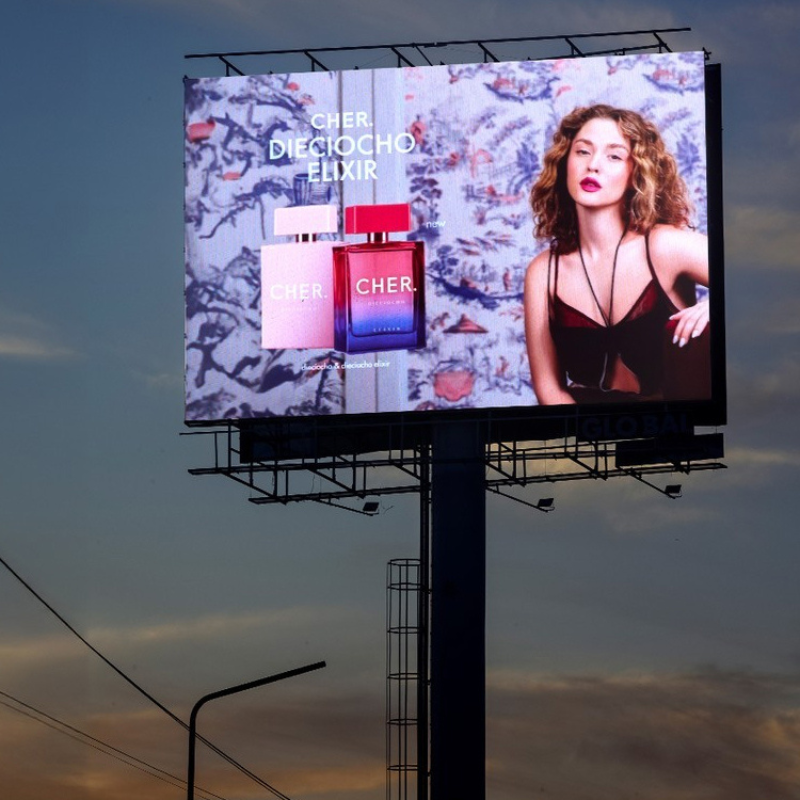

· Outdoor advertising billboards

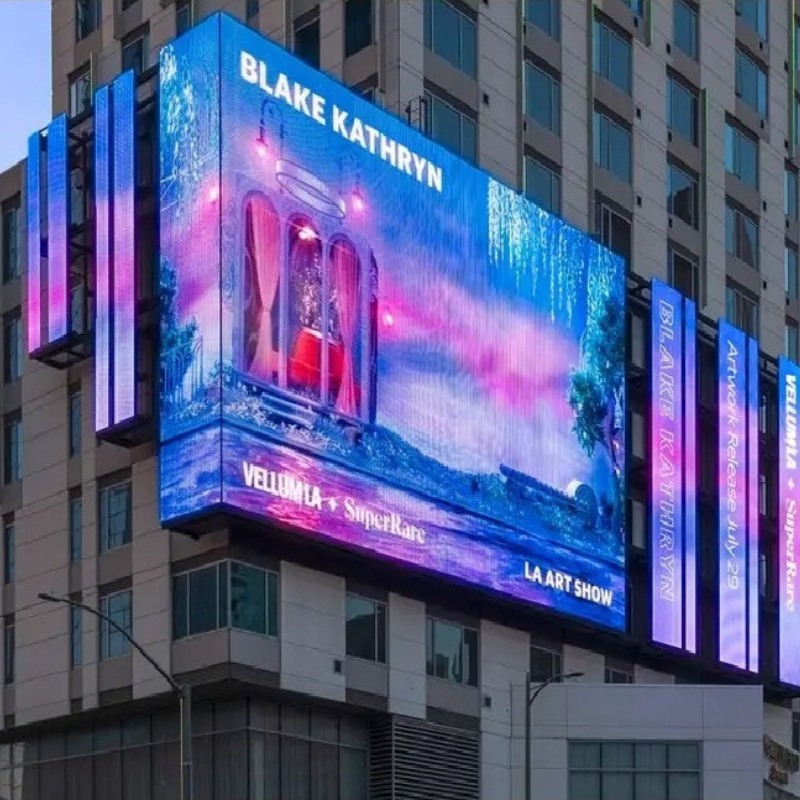

· Building facade displays
· Sports venue scoreboards
· Public information displays
· Transportation hub signage
Why Choose ABXLED Oi Series?
· Reliability: Engineered for continuous outdoor operation
· Clarity: High brightness and contrast ensure content visibility
· Durability: Robust construction withstands environmental challenges
· Efficiency: Advanced cooling system extends product lifespan
· Versatility: Suitable for various outdoor fixed-installation scenarios
The ABXLED Oi Series combines professional-grade construction with outstanding visual performance, providing a dependable outdoor display solution that maintains image quality and operational stability over years of service.
Outdoor Fixed Installation LED Display Parameter(960x960)
| TEME | UNIT | Oi-P3-960 | Oi-P4-960 | Oi-P5-960 | Oi-P6-960 | Oi-P8-960 | Oi-P10-960 |
| Pixel Pitch (mm) | mm | P3.076 | P4 | P5 | P6.67 | P8 | P10 (2S) |
| Pixel Configuration | N/A | SMD1415 | SMD1921 | SMD1921 | SMD3535 | SMD3535 | SMD3535 |
| Density (Pixels/㎡) | Pixel/sqm | 105625 | 62,500 | 40,000 | 22,500 | 15,625 | 10,000 |
| Module Resolution (Pixels) | Pixels | 104x52 | 80x40 | 64x32 | 48x24 | 40x20 | 32x16 |
| Module Size (mm) | mm | 320x160 | 320x160 | 320x160 | 320x160 | 320x160 | 320x160 |
| Driving Mode (Duty) | N/A | 1/13 | 1/10 | 1/8 | 1/6 | 1/5 | 1/2 |
| Cabinet Size (mm) | mm | 960x960 | 960x960 | 960x960 | 960x960 | 960x960 | 960x960 |
| Cabinet Weight (KG) | KG | 30 | 30 | 30 | 30 | 30 | 30 |
| Brightness (CD/㎡) | CD/㎡ | 5,500 | 5,500 | 5,500 | 5,500 | 5,500 | 6,000 |
| Viewing Angle (°) | (°) | 140 | 140 | 140 | 140 | 140 | 140 |
| Gray Grade (Bits) | Bits | 14 | 14 | 14 | 14 | 14 | 14 |
| Operation Power | V | AC100-240V 50-60Hz | |||||
| Max. Power Consumption (W/㎡) | W/㎡ | 900 | 900 | 836 | 840 | 760 | 850 |
| Avg. Power Consumption (W/㎡) | W/㎡ | 300 | 300 | 280 | 280 | 260 | 285 |
| Frame Frequency (Hz) | Hz | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 |
| Refresh Frequency (Hz) | Hz | ≥3840 | ≥3840 | ≥3840 | ≥3840 | ≥3840 | ≥3840 |
| Working Temperature (ºC) | (ºC) | -20～+60 | -20～+60 | -20～+60 | -20～+60 | -20～+60 | -20～+60 |
| Protection Grade | IP | IP65 | |||||
| Color temperature | N/A | 3000-10000 K(adjustable) | |||||
ABXLED Oi series Outdoor Fixed Installation LED Screen( Curved 1280x960mm )
| TEME | UNIT | Oi-P3-1280 | Oi-P4-1280 | Oi-P5-1280 | Oi-P6-1280 | Oi-P8-1280 | Oi-P10-1280 |
| Pixel Pitch (mm) | mm | P3.076 | P4 | P5 | P6.67 | P8 | P10 |
| Pixel Configuration | N/A | SMD1415 | SMD1921 | SMD1921 | SMD3535 | SMD3535 | SMD3535 |
| Density (Pixels/㎡) | Pixel/sqm | 105625 | 62,500 | 40,000 | 22,500 | 15,625 | 10,000 |
| Module Resolution (Pixels) | Pixels | 104x52 | 80x40 | 64x32 | 48x24 | 40x20 | 32x16 |
| Module Size (mm) | mm | 320x160 | 320x160 | 320x160 | 320x160 | 320x160 | 320x160 |
| Driving Mode (Duty) | N/A | 1/13 | 1/10 | 1/8 | 1/6 | 1/5 | 1/2 |
| Cabinet Size (mm) | mm | 1280x960 | 1280x960 | 1280x960 | 1280x960 | 1280x960 | 1280x960 |
| Cabinet Weight (KG) | KG | 40 | 40 | 40 | 40 | 40 | 40 |
| Brightness (CD/㎡) | CD/㎡ | 5,500 | 5,500 | 5,500 | 5,500 | 5,500 | 6,000 |
| Viewing Angle (°) | (°) | 140 | 140 | 140 | 140 | 140 | 140 |
| Gray Grade (Bits) | Bits | 14 | 14 | 14 | 14 | 14 | 14 |
| Operation Power | V | AC100-240V 50-60Hz | |||||
| Max. Power Consumption (W/㎡) | W/㎡ | 900 | 900 | 836 | 840 | 760 | 850 |
| Avg. Power Consumption (W/㎡) | W/㎡ | 300 | 300 | 280 | 280 | 260 | 285 |
| Frame Frequency (Hz) | Hz | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 |
| Refresh Frequency (Hz) | Hz | ≥3840 | ≥3840 | ≥3840 | ≥3840 | ≥3840 | ≥3840 |
| Working Temperature (ºC) | (ºC) | -20～+60 | -20～+60 | -20～+60 | -20～+60 | -20～+60 | -20～+60 |
| Protection Grade | IP | IP65 | |||||
| Color temperature | N/A | 3000-10000 K(adjustable) | |||||
