ABXLED SA 960 Series Football Stadium outdoor LED display screen big LED vdieo wall Pitch P3 P4 P5 P6 P8 P10 LED Boards Advertising
The ABXLED SA 960 Series is a professional stadium perimeter LED display, engineered to meet FIFA & UEFA standards. Featuring front & rear service, soft mask protection, and a 90° upright frame, it delivers safety, reliability, and energy efficiency for major sports venues.
- Product Details
- Technical Specification
Product Overview:
The Professional Choice for Stadium Perimeters
Meet the ABXING SA 960 Series, the high-performance LED display solution built specifically for the demanding environment of stadium trackside advertising. Combining rigorous safety features, effortless maintenance, and compliance with international standards, it is designed to enhance the spectator experience while ensuring operational excellence for venue managers.
Engineered for Performance & Compliance
1. Meets FIFA & UEFA Standards
The SA 960 Series is designed and manufactured in accordance with the strict requirements of FIFA and UEFA, guaranteeing the quality, safety, and performance needed for the world's most prestigious sporting events.
2. Front & Rear Service for Easy Maintenance

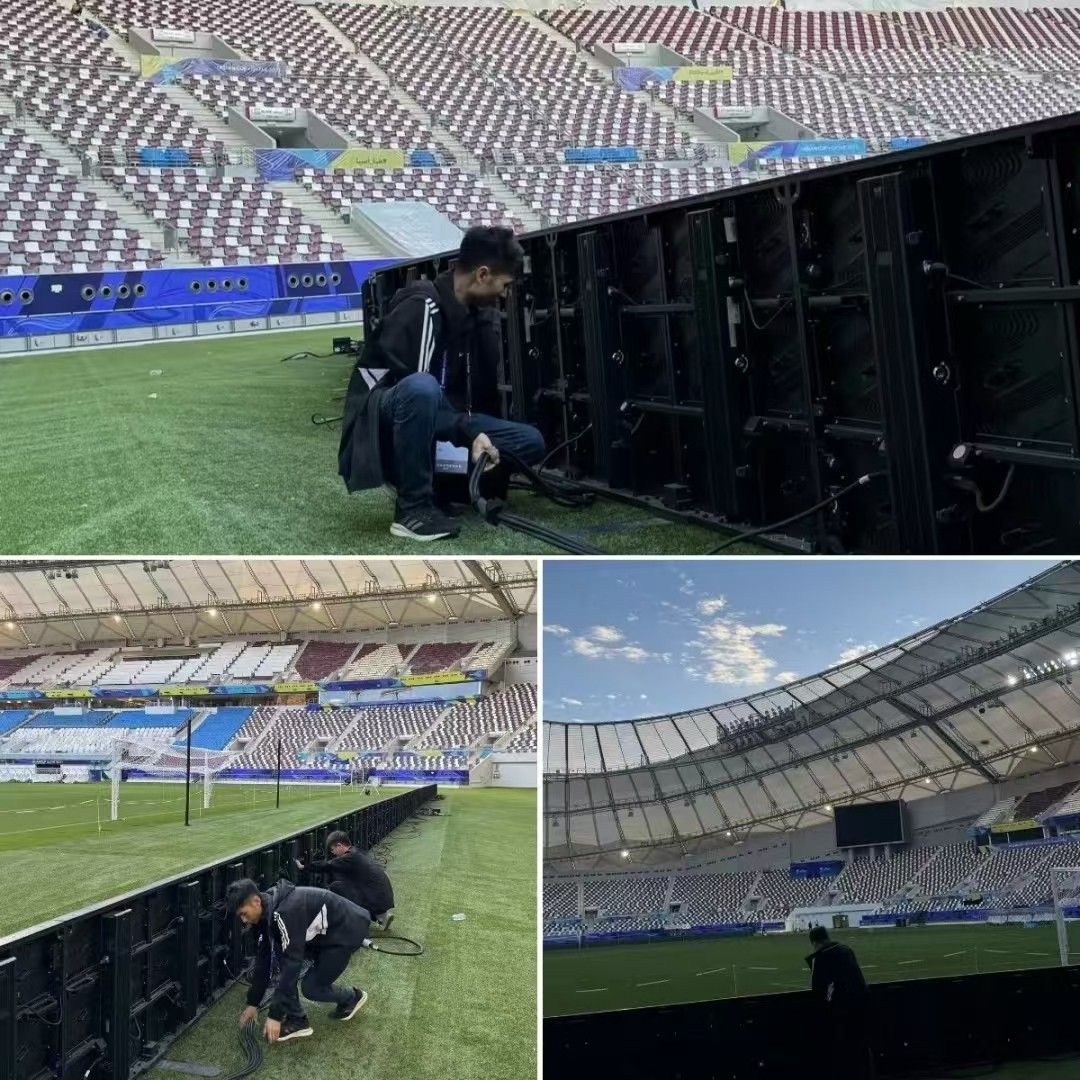

Maximize uptime and minimize costs with our dual-access service design. The LED panels can be installed, assembled, and disassembled quickly and easily from both the front and rear, significantly reducing maintenance time and labor.
3. Enhanced Safety with Soft Mask Protection
Prioritize athlete safety with integrated soft mask protection. This critical feature provides a cushioned surface, perfectly safeguarding both players and the display itself from impact during the heat of the game.
4. Optimized Viewing with 90° Upright Frame
Our innovative 90-degree upright, non-adjustable support frame is engineered to provide the ideal viewing angle for every seat in the stadium, ensuring clear, unobstructed sightlines for all audience members.

Innovative & Safety-Centric Design Solutions
1.Safe Passage Design for Emergencies
In case of an emergency, specific sections of the LED display can be quickly folded down to create a safe, wide passage, allowing for rapid and orderly evacuation from the field.
2.Seamless Corner Integration
We pride ourselves on a revolutionary foldable corner design. Our perimeter screens are innovatively engineered to seamlessly connect at the corners, creating a perfectly continuous and fit display that wraps flawlessly around the entire stadium track.
3.Energy-Efficient Operation
Constructed with an aluminum chassis that offers exceptional heat dissipation and a long service life, the SA 960 Series is significantly more energy-efficient than traditional displays. This advanced design greatly reduces your long-term operating costs and environmental footprint.
Robust Hardware & Installation Features
1.480x320mm Sealed Aluminum LED Panel
· Durable Construction: Features a full-sealed aluminum chassis designed to robustly protect internal components from moisture and dust.
· Tool-Free Installation: The innovative edge-lock mechanism allows for quick and secure panel mounting without the need for screws, speeding up setup and maintenance.
2. Rotatable & Compact Cabinet System
· Space-Saving Frame: The support frame can be rotated and hidden, facilitating easier storage and transportation.
· Ergonomic Handling: A dedicated, humanized handle design makes each compact cabinet easy to move and maneuver.
· Gap-Free Assembly: The precision cabinet structure ensures easy, seamless installation without visible gaps for a professional, continuous display surface.
ABXLED SA 960 Series Stadium LED screen technical specification
| ITEM | UNIT | SA-P4-960 | SA-P5-960 | SA-P6-960 | SA-P8-960 | SA-P10-960 |
| Pixel Pitch (mm) | mm | P4.4 | P5.7 | P6.67 | P8 | P10 |
| Pixel Configuration | N/A | SMD1921 | SMD1921 | SMD2727 | SMD2727 | SMD2727 |
| Density (Pixels/㎡) | Pixel/sqm | 50625 | 30,625 | 22,500 | 15,625 | 10,000 |
| Module Resolution (Pixels) | Pixels | 80x40 | 64x32 | 72x48 | 60x40 | 48x32 |
| Module Size (mm) | mm | 480*320 | 480*320 | 480*320 | 480*320 | 480*320 |
| Driving Mode (Duty) | N/A | 1/10 | 1/8 | 1/6 | 1/5 | 1/2 |
| Cabinet Size | mm | 960x960 | 960x960 | 960x960 | 960x960 | 960x960 |
| Cabinet Weight | KG | 34 | ||||
| Maintenance Method | Front/Rear | |||||
| Brightness (CD/㎡) | CD/㎡ | 6,000 | 6,000 | 6,000 | 6,000 | 6,000 |
| Viewing Angle | (°) | 140 | 140 | 140 | 140 | 140 |
| Gray Grade | Bits | 14 | 14 | 14 | 14 | 14 |
| Operation Power | V | AC100-240V 50-60Hz | ||||
| Max. Power Consumption (W/㎡) | W/㎡ | 800 | ||||
| Avg. Power Consumption (W/㎡) | W/㎡ | 240 | ||||
| Frame Frequency (Hz) | Hz | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 |
| Refresh Frequency (Hz) | Hz | ≥3840 | ≥3840 | ≥3840 | ≥3840 | ≥3840 |
| Working Temperature (ºC) | (ºC) | -30~+60 | ||||
| Protection Grade | IP | IP65 | ||||
| Color temperature | N/A | 3000-10000 K(adjustable) | ||||
