ABXLED OA Series – All-Weather Outdoor LED Billboard: IP66 Waterproof, Fanless Cooling, and Fully Sealed Aluminum Chassis for Dusty and Humid Environments
Key Benefits
The ABXLED OA Series is built to withstand the harshest outdoor environments, featuring IP66 waterproof protection on both front and rear, a fully sealed die-casting aluminum module chassis, and a fanless cooling design that ensures reliable operation in dusty, humid, and extreme conditions. The high-strength aluminum alloy panel weighs only 26kg with an 83mm ultra-slim profile – 50% lighter than traditional steel models – reducing structural load and simplifying installation. The common cathode power supply scheme reduces heat generation, while the module casing is directly exposed to air for superior heat dissipation – eliminating the need for air conditioners. With pixel pitches P10–P4.44, refresh rates up to 7680Hz, and naked-eye 3D capability, the OA Series delivers reliable, high-quality visuals in any weather condition – from coastal saltwater environments to desert heat and humid tropical climates.
Main Features
- IP66 High Protection: Fully sealed die-casting aluminum module chassis – front and rear waterproof and dustproof.
- Fanless Cooling Design: Silent operation – superior heat dissipation – no air conditioners required.
- Ultra-Light 26kg Panel: 50% lighter than steel – reduces structural load.
-
Common Cathode Energy-Saving: Reduces heat generation and power consumption.
-
Naked-Eye 3D Capability: Seamless right angles or curves – striking 3D visuals.
-

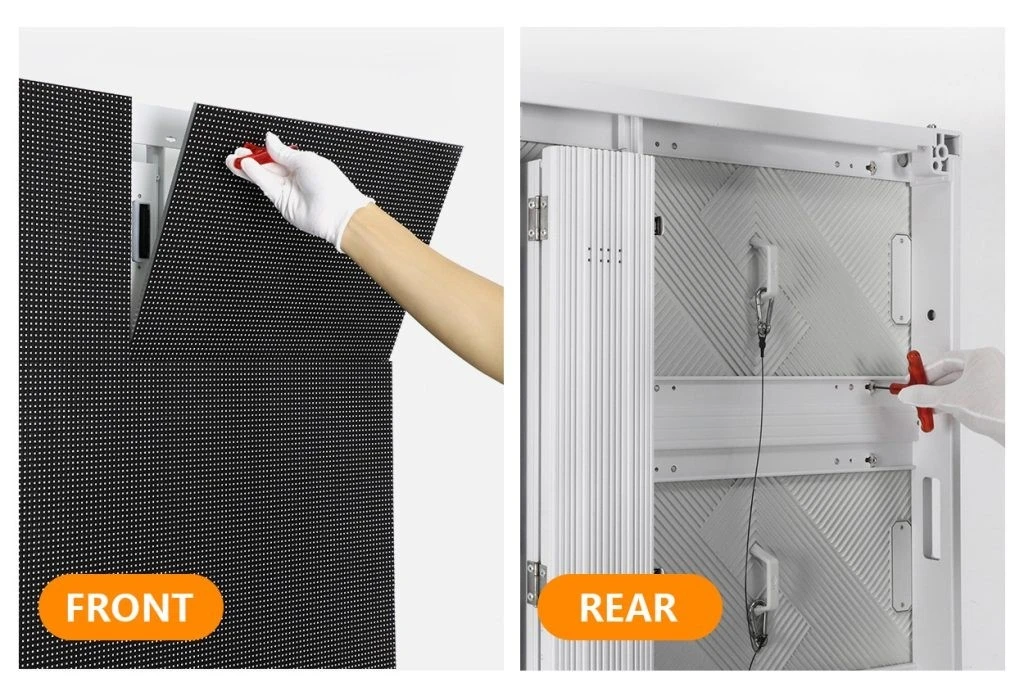

Front & Rear Maintenance: Quick service with wrenches – minimal labor.
-
Multiple Pixel Pitches: P10, P8, P6.667, P5.7, P4.44.
-
High Refresh Rate: 3840Hz–7680Hz – flicker-free.
-
Standard Cabinet Sizes: 960×960mm, 960×1280mm, 960×640mm.
Technical Specifications
|
Parameter |
Specification |
|
Protection |
IP66 (front & rear) |
|
Cooling |
Fanless |
|
Panel Weight |
26kg |
|
Panel Depth |
83mm |
|
Pixel Pitches |
P10, P8, P6.667, P5.7, P4.44 |
|
Refresh Rate |
3840Hz, 7680Hz |
|
Energy Technology |
Common cathode |
Application Scenarios
- Coastal and seaside locations
- Desert and extreme heat regions
-
Humid tropical climates
-
Dusty industrial environments
-
High-traffic public areas
Optional Accessories & Custom Options
- Custom cabinet sizes
-
Naked-eye 3D curved equipment
-
Free LOGO printing
-
Extended warranty
Project Cases

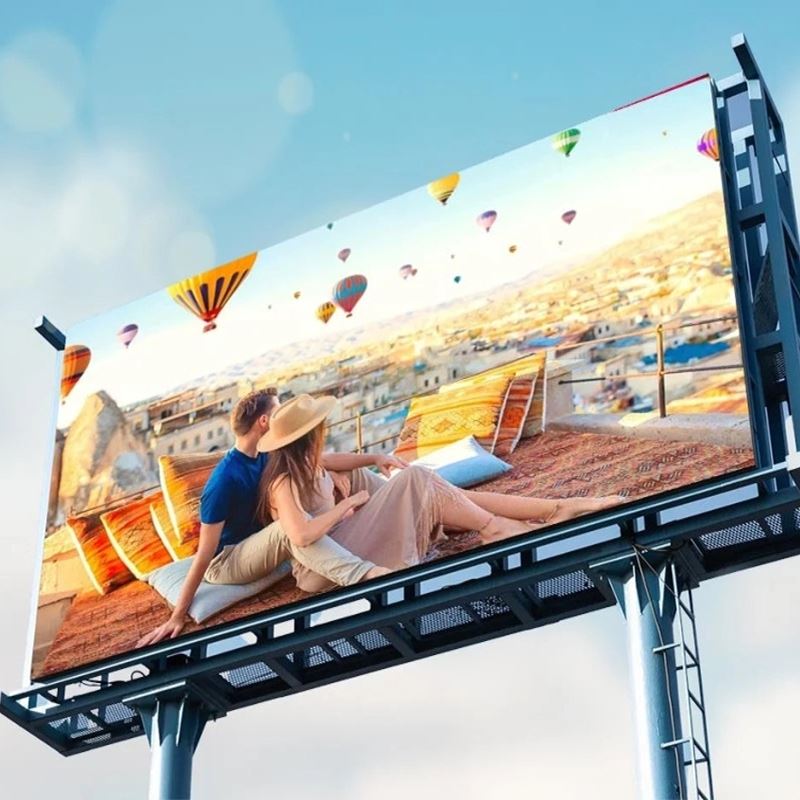

This single-pillar outdoor LED billboard is built for scenic and highway advertising scenarios. The large display presents a bright travel-themed image featuring a couple enjoying the view of hot air balloons over a historic town, showcasing outstanding colour saturation and delicate picture details. The high-bright LED panel maintains clear visuals under strong natural daylight, catching the attention of passing travellers and vehicles. Supported by a solid galvanized steel framework with reliable waterproof protection, this screen is ideal for tourism promotion and lifestyle brand campaigns. It delivers vivid immersive visuals to effectively convey travel-related brand messages.
FAQ
Q1: What is the protection rating?
IP66 front and rear.
Q2: How is cooling managed?
Fanless design – no air conditioners required.
Q3: Is the display suitable for coastal locations?
Yes – aluminum construction and IP66 protection.
Q4: What is the panel weight?
26kg – 50% lighter than steel.
Product Reference Photo
Product Reference Video
