ABXLED SD 960 Series – Engineering Excellence: Magnesium Alloy Cabinet, Adjustable Bracket, Energy Saving >50%, and IP65 Protection for Sports Perimeter Displays
Key Benefits
The ABXLED SD 960 Series is engineered for the most demanding sports and outdoor advertising environments. The magnesium alloy cabinet provides exceptional strength-to-weight ratio with excellent heat dissipation – ensuring reliable performance in any climate. The standard 960×960mm dimension and universal 320×160mm module (compatible with P4–P10) enable low-cost product upgrades by simply replacing the module. The adjustable triangular mounting bracket supports multiple elevation angles (90°, 85°, 80°, 75°, 70°, 65°) – meeting the viewing angle requirements of different venues. The R/GB separate power supply technology delivers >50% energy savings and reduces operating temperature by approximately 16°C compared to conventional displays – eliminating the need for air conditioning. The silicone top cover, soft protective cotton, and high-brimmed soft mask provide two-way protection for athletes and the screen. With IP65 waterproof protection, dual signal redundancy backup, and multi-installation capability (stacking, hanging, billboard), the SD 960 Series delivers the engineering precision, safety, and operational efficiency that professional sports venues demand.
Main Features
- Magnesium Alloy Cabinet: Lightweight, durable, excellent heat dissipation.
- Standard 960×960mm Size: Industry-standard perimeter display dimension.
-
320×160mm Universal Module: Compatible with P4, P5, P6.6, P8, P10 – low upgrade costs.
-

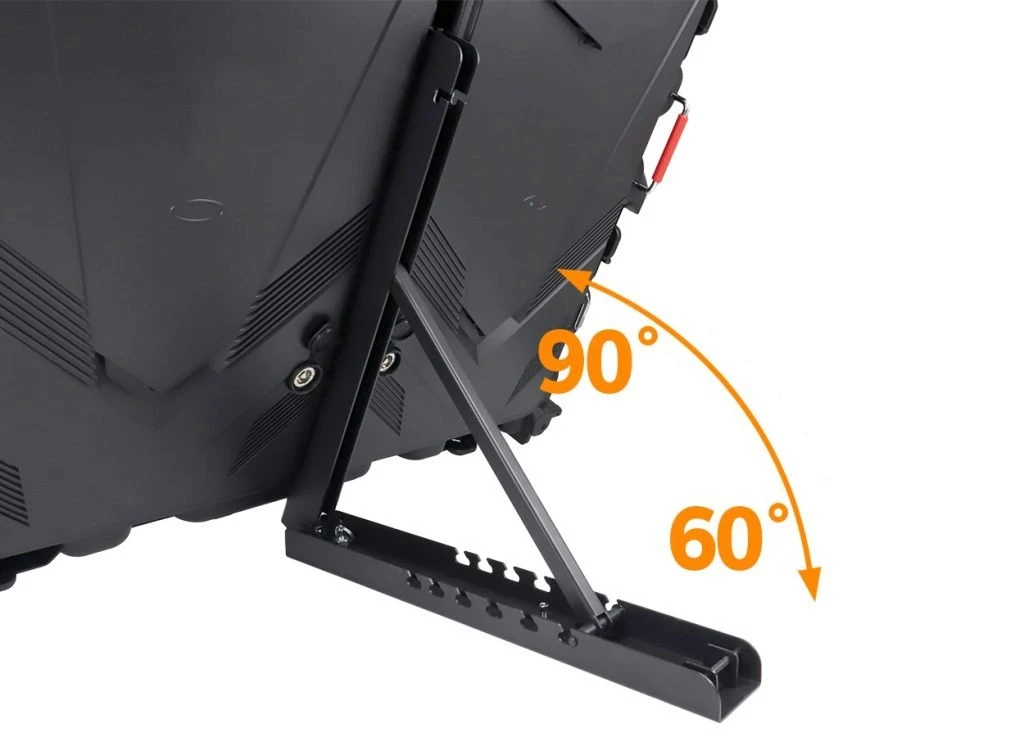

Adjustable Supporting Bracket: Foldable triangular design – 90°, 85°, 80°, 75°, 70°, 65° elevation adjustment.
-

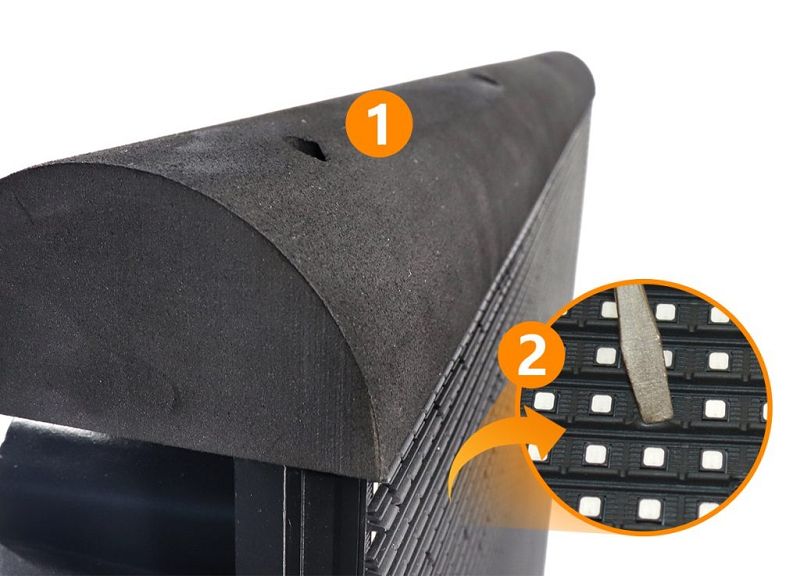

Reasonable Safety Design: Soft protective cotton, high-brimmed soft mask, silicone top cover – two-way protection.
-
Energy Saving >50%: R/GB separate power supply – accurate current distribution.
-
Temperature Reduction: ~16°C lower than conventional displays – no air conditioning required.
-
IP65 Waterproof: Front side protection – reliable in all outdoor environments.
-
Dual Signal Redundancy Backup (Optional): Ensures on-site playback safety.
-

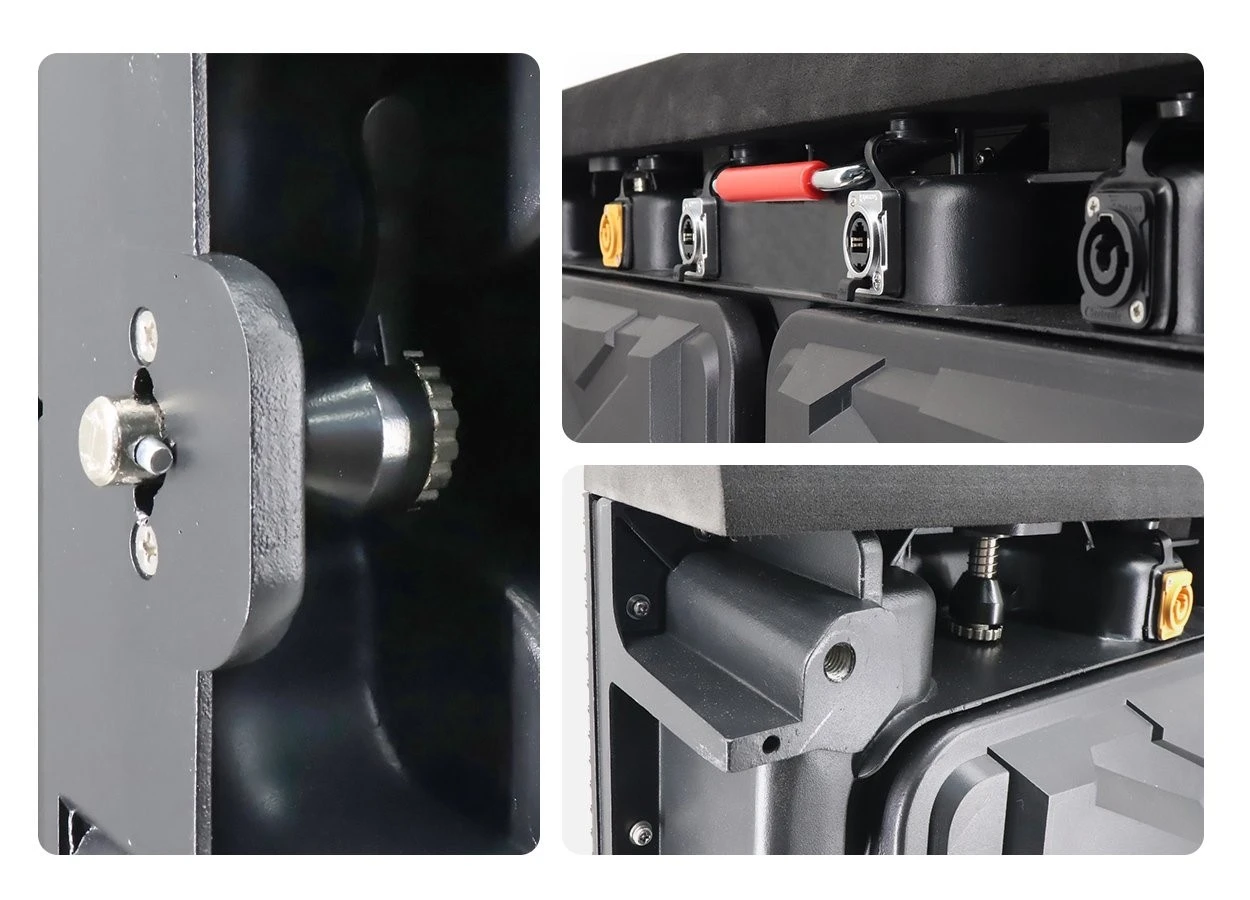

Openable Back Cover: Quick maintenance access.
-
Multi Installation Way: Stacking, hanging, outdoor billboard – "Transformer" of sports LED displays.
Technical Specifications
|
Parameter |
Specification |
|
Cabinet Size |
960×960mm |
|
Cabinet Material |
Magnesium alloy |
|
Module Size |
320×160mm |
|
Pixel Pitches |
P4, P5, P6.6, P8, P10 |
|
Protection |
IP65 (front) |
|
Energy Savings |
>50% |
|
Temperature Reduction |
~16°C |
|
Bracket Angles |
90°, 85°, 80°, 75°, 70°, 65° |
|
Maintenance |
Rear service – openable back cover |
|
Installation |
Stacking, hanging, billboard |
Application Scenarios
- Sports stadiums and arenas
- Indoor and outdoor sports venues
-
Advertising billboards
-
Hanging installations for large venues
-
Commercial advertising in high-traffic areas
Optional Accessories & Custom Options
- Dual signal redundancy backup
-
Silicone top cover
-
Hanging bar
-
Standing structure
-
Custom pixel pitch configurations
-
Spare module kits, power supplies, controller cards
-
Extended warranty
Project Cases

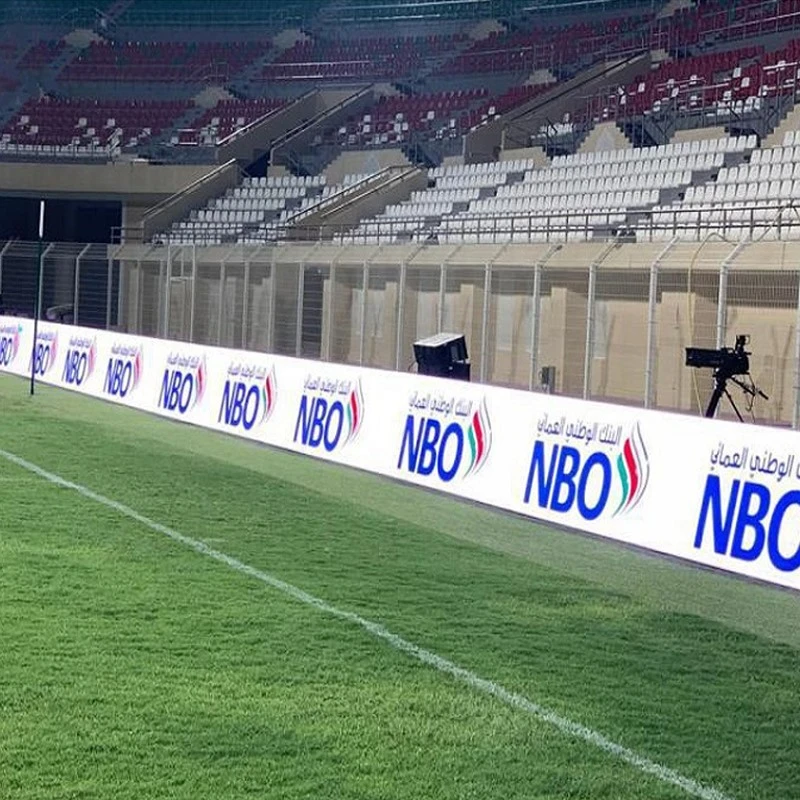

This perimeter LED advertising screen is installed around the football pitch in a large stadium. The long continuous display presents the NBO brand logo and Arabic text, delivering clear and stable advertisement content for audiences and broadcast cameras. Designed specifically for sports venues, it features high refresh rate, wide viewing angle and anti-collision cabinet structure, adapting well to intense match environments. The system supports quick content switching to show multiple sponsor ads during games. It is a premium solution for sports marketing in Middle Eastern stadiums, offering high brand exposure and enriching the commercial value of live sports events.
FAQ
Q1: What is the cabinet material?
Magnesium alloy – lightweight, durable, excellent heat dissipation.
Q2: What is the energy savings?
>50% through R/GB separate power supply.
Q3: What is the temperature reduction?
~16°C lower than conventional displays.
Q4: What bracket angles are supported?
90°, 85°, 80°, 75°, 70°, 65°.
Q5: Is dual signal redundancy available?
Yes – optional feature for playback safety.
