Shenzhen ABXLED Industrial Co., Ltd. is one of the leading manufacturers and suppliers of indoor video wall in China. We are committed to providing high quality customized products with competitive price. If you're going to wholesale advanced indoor video wall, welcome to get quotation from our factory.
Indoor LED Wall Panels – Comprehensive Applications Across Retail, Corporate, Education, Healthcare, Entertainment, and Public Spaces
Key Benefits
Indoor LED wall panels have become indispensable visual communication tools across virtually every industry and setting. From retail stores and corporate lobbies to houses of worship, healthcare facilities, and broadcast studios, these versatile displays deliver ultra-high resolution, seamless visuals, and vibrant colors that captivate audiences and convey information effectively. The modular design enables scalability – you can assemble panels to create displays of virtually any size, from small meeting room screens to large-format video walls. Front-service capabilities with magnetic LED modules simplify maintenance, eliminating the need for rear access and reducing downtime. With multiple pixel pitch options (P1.25–P5) and flexible installation methods (wall-mounted, ground-stacked, hanging), indoor LED walls adapt seamlessly to any environment – making them the preferred choice for businesses seeking high-impact visual communication.
Main Features
- Modular Scalability: LED panels are assembled to create displays of any size – customized to fit specific spaces and requirements.

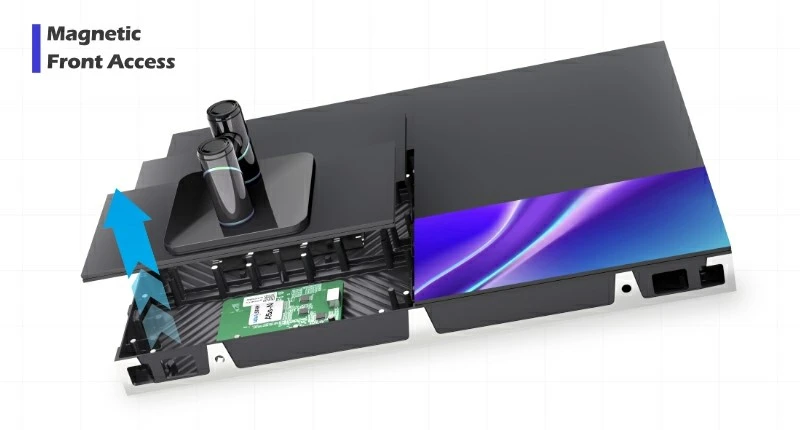

- Front Service & Magnetic Modules: Tool-free, front-access maintenance – no rear space needed, minimal downtime.
- Multiple Pixel Pitches: Available from P1.25 (ultra-fine) to P5 – match resolution to viewing distance and application.
- High-Definition Visual Performance: Impressive resolution, vivid colors, and dynamic contrast ratios – crystal-clear imagery.

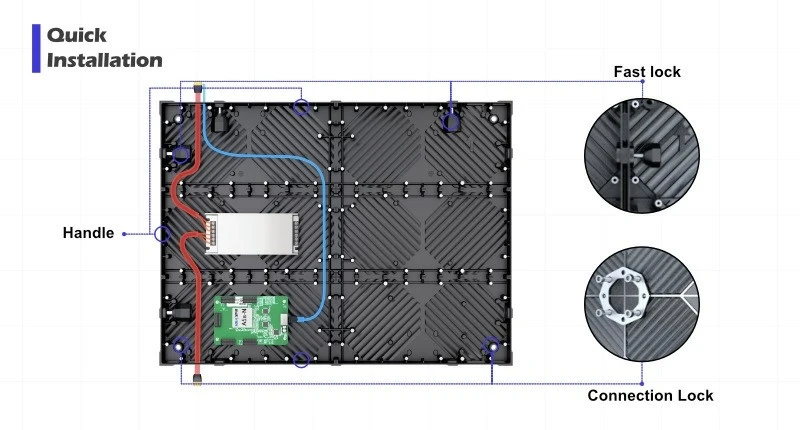

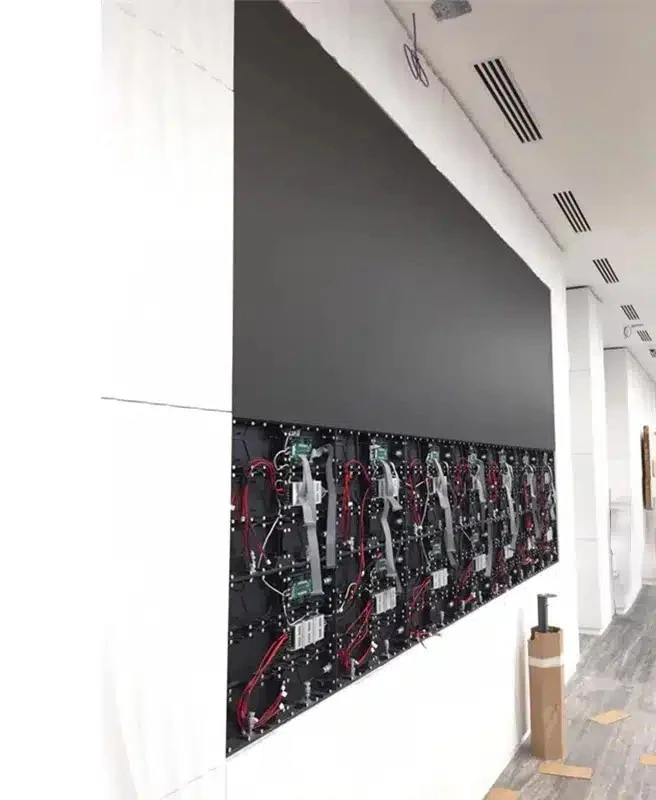

- Versatile Installation Options: Wall-mounted (sleek integration), ground-stacked (impactful freestanding), or hanging (creative overhead displays).
-
Standardized Module & Cabinet Sizes: 320×160mm modules; cabinet options include 640×640mm, 640×480mm, and custom configurations.
-
Cost-Effective Design: Uses widely available components – delivers high performance without premium pricing.
-

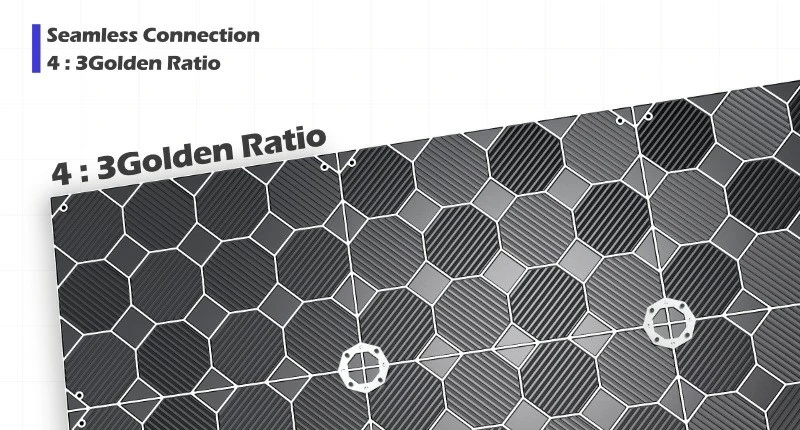

Seamless Splicing: Precision-engineered panels align perfectly – gap-free, immersive viewing experience.
Technical Specifications
|
Parameter |
Specification |
|
Pixel Pitch Options |
P1.25, P1.37, P1.53, P1.66, P1.86, P2, P2.5, P4, P5 |
|
Module Size |
320mm × 160mm (standardized) |
|
Cabinet Options |
640×640mm, 640×480mm, 320×160mm, custom |
|
Maintenance |
Front service – magnetic modules |
|
Installation Methods |
Wall-mounted, ground-stacked, hanging |
|
Viewing Angle |
Wide – consistent clarity from all positions |
|
Applications |
Indoor – retail, corporate, education, healthcare, entertainment, broadcast, control rooms |
Application Scenarios

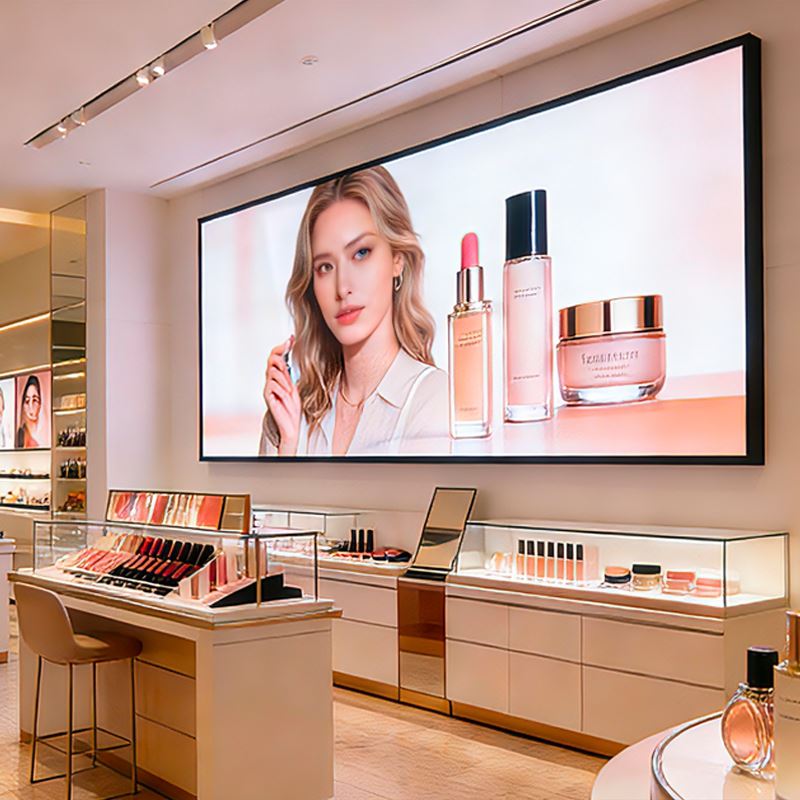

- Retail Stores: Dynamic product displays, promotions, and brand storytelling – create engaging shopping experiences.
- Corporate Lobbies: Branded content, corporate messaging, real-time information (stock prices, news) – greet visitors with impact.
- Boardrooms & Conference Rooms: High-quality presentations, video conferencing, collaborative discussions – effective communication.
- Houses of Worship: Display religious content, scriptures, sermons – enhance worship experience.
- Healthcare Facilities: Patient information, wayfinding, calming atmospheres in waiting areas – improve patient experience.
- Hotels: Guest information, event schedules, promotions, local attractions – welcoming atmosphere.
-
Broadcast Studios: Dynamic backdrops for television broadcasts and live shows – enhance production quality.
-
Control Rooms: Real-time data display for utilities, transportation, security agencies – support decision-making.
-
Museums & Exhibitions: Multimedia content, interactive exhibits, immersive displays – engage visitors.
-
Education: Interactive learning, presentations, engaging classroom environments – improve teaching quality.
-
Gaming & Esports Arenas: Gameplay displays, live streams, immersive gaming experiences.
-
Fashion Shows: Striking runways and backdrops – showcase designs and create captivating experiences.
Optional Accessories & Custom Options
- Wall-mounting brackets and hardware
- Ground-stacking frames and stands
- Hanging installation kits and rigging
- Custom cabinet sizes beyond standard options
- Flight cases for secure transportation
- Spare module kits and power supplies
-
Custom pixel pitch configurations
-
Extended warranty and maintenance packages
Project Cases
- Global Retail Chain (USA): 100㎡ indoor LED wall installed across 20 store locations – P2.5 pixel pitch delivered dynamic product showcases, increasing customer engagement by 25%.
- Corporate Headquarters Lobby (Europe): 80㎡ seamless LED video wall with front-service magnetic modules – branded content and real-time stock updates impressed visitors and employees.
- Broadcast Studio (Asia): P1.86 fine-pitch LED wall used as dynamic backdrop for daily news production – exceptional color accuracy and flicker-free performance.
-
House of Worship (North America): P2.5 indoor LED wall – clear display of scriptures and sermon content enhanced congregation experience.
FAQ
Q1: What pixel pitch should I choose for my indoor LED wall?
Choose based on viewing distance: P1.25–P1.86 for close viewing (1-5 meters), P2–P2.5 for medium distances (2-8 meters), P4–P5 for larger venues (4-15 meters).
Q2: What are the main installation methods?
Wall-mounted (sleek integration), ground-stacked (freestanding impact), and hanging (creative overhead displays) – choose based on your space and requirements.
Q3: How is maintenance performed on indoor LED walls?
Front-service design with magnetic LED modules – detach and replace modules from the front without rear access, minimizing downtime.
Q4: Can LED wall panels be customized to fit specific spaces?
Yes. LED walls are modular and scalable – we offer multiple cabinet sizes (640×640mm, 640×480mm, 320×160mm) and custom configurations.
Q5: What is the lifespan of an indoor LED wall?
With proper maintenance, indoor LED walls last over 100,000 hours – a reliable long-term investment.
Product Reference Photo
Product Reference Video
