Shenzhen ABXLED Industrial Co., Ltd. is one of the leading manufacturers and suppliers of led panel screen in China. We are committed to providing high quality customized products with competitive price. If you're going to wholesale advanced led panel screen, welcome to get quotation from our factory.
Indoor LED Wall Panels – One Module Size, Versatile Pixel Pitches, Multiple Cabinet Options, and Front-Service Magnetic Design
Key Benefits
Indoor LED wall panels offer unmatched customization with a range of pixel pitches, cabinet sizes, and installation methods – all built around a standardized 320×160mm module. Available in pixel pitches from P1.25 (ultra-fine for close viewing) to P5 (ideal for larger venues), our panels ensure optimal resolution for any application. Cabinet options include 640×640mm, 640×480mm, and 320×160mm, with custom configurations available. The innovative front-service design with magnetic LED modules simplifies maintenance – tool-free replacement from the front, no rear access needed. Whether you need a sleek wall-mounted display for a corporate boardroom, a ground-stacked screen for an exhibition, or a hanging installation for a large venue, our LED wall panels deliver exceptional visual quality, versatility, and ease of use.
Main Features
- Standardized 320×160mm Module: One module size – versatile pixel pitches and multiple cabinet options for maximum flexibility.
- Multiple Pixel Pitches: P1.25, P1.37, P1.53, P1.66, P1.86, P2, P2.5, P4, P5 – match resolution to viewing distance and application.

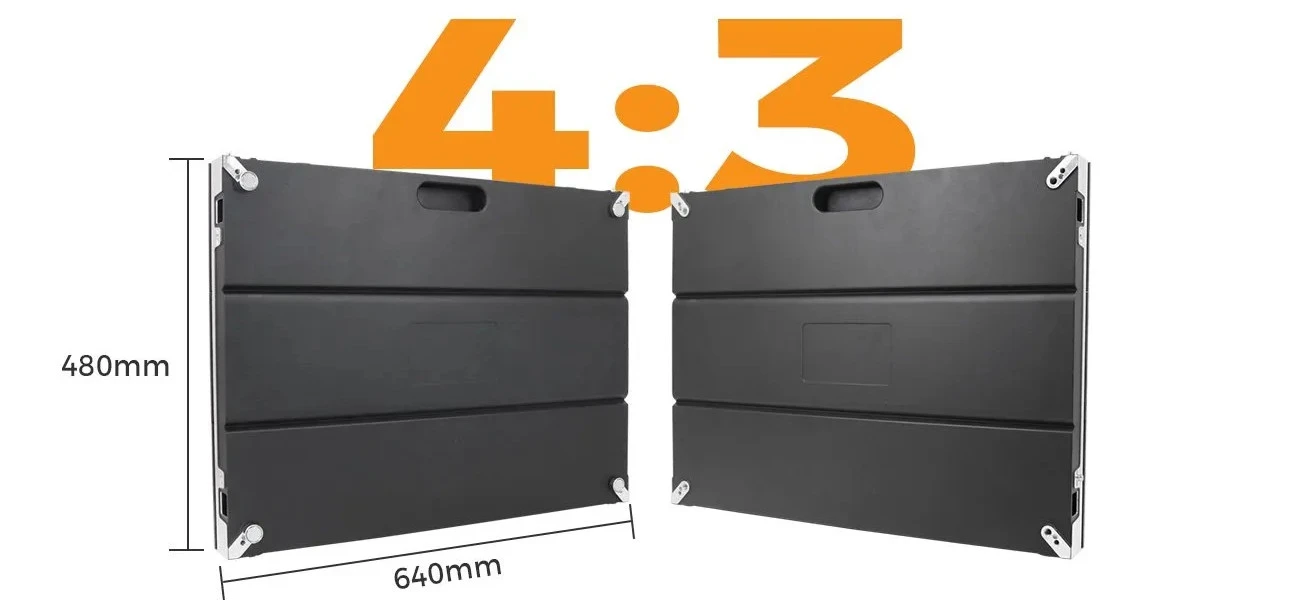

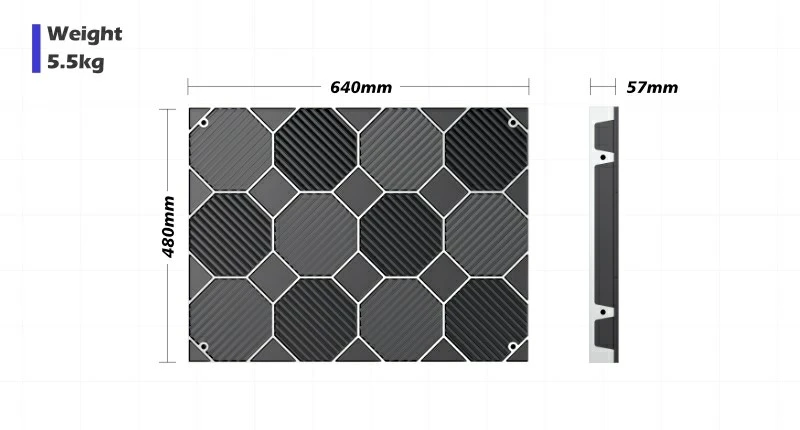

- Multiple Cabinet Options: 640×640mm, 640×480mm, 320×160mm, and custom – adapt to any space and aspect ratio.

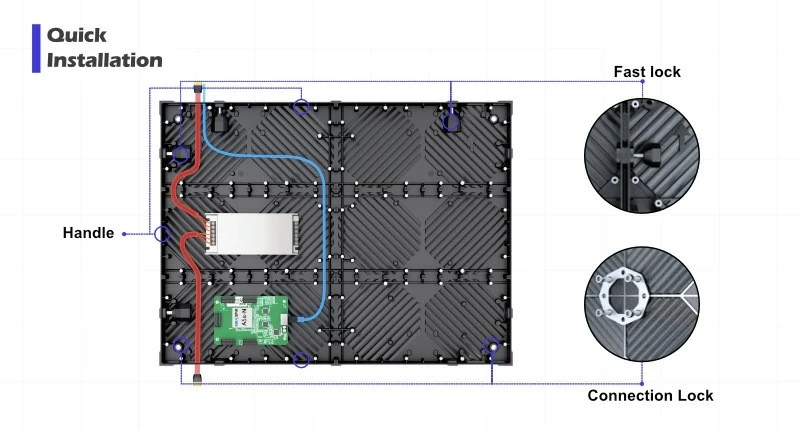

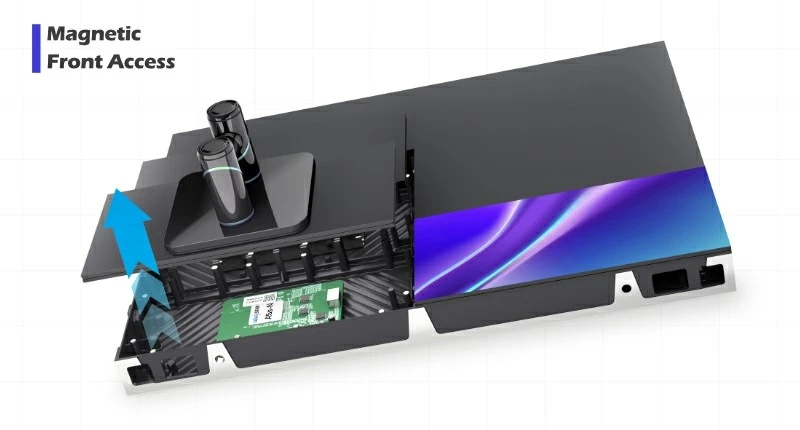

- Front-Service Magnetic Modules: Tool-free attachment and replacement – simplified maintenance, reduced downtime.
- No Space Constraints: Front installation eliminates rear clearance requirements – maximize usable space.
-

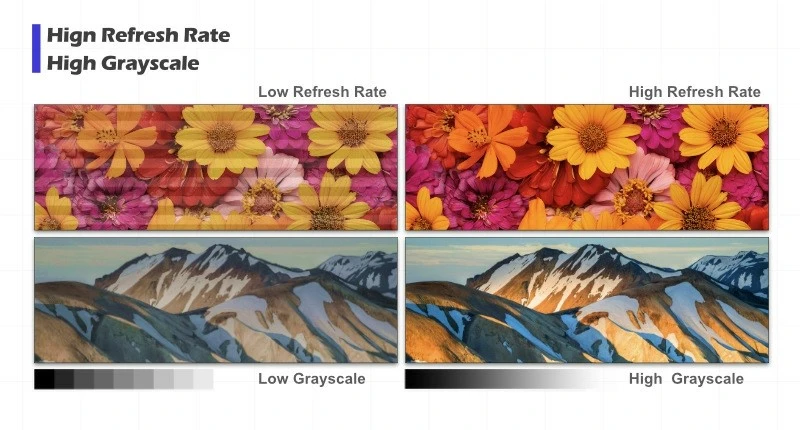

High-Definition Visual Performance: Impressive resolution, vivid colors, dynamic contrast ratios – crystal-clear imagery.
-

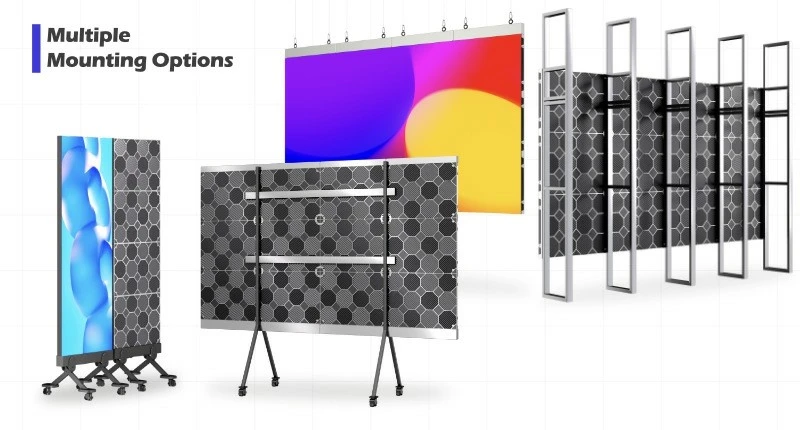

Flexible Installation Methods: Wall-mounted, ground-stacked, hanging – suit any indoor environment.
-

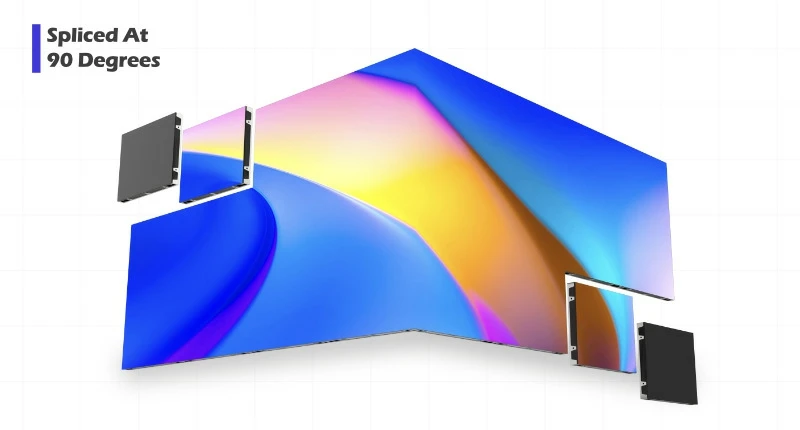

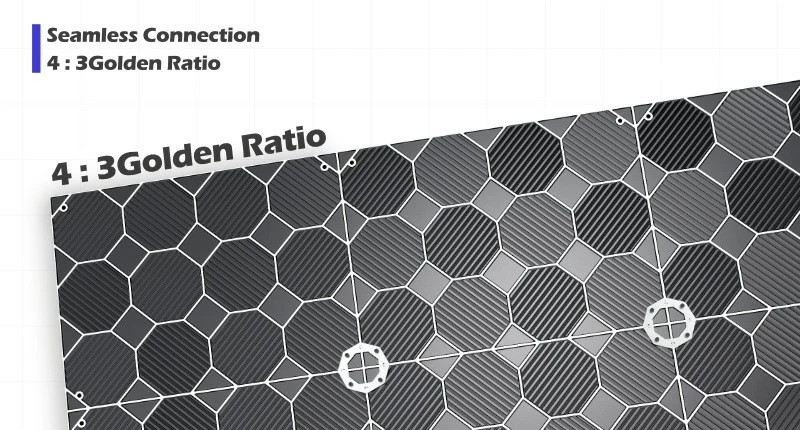

Seamless Splicing: Precision-engineered for gap-free, continuous displays.
-
Scalable Design: Assemble panels to create displays of virtually any size.
Technical Specifications
|
Parameter |
Specification |
|
Module Size |
320mm × 160mm |
|
Pixel Pitches |
P1.25, P1.37, P1.53, P1.66, P1.86, P2, P2.5, P4, P5 |
|
Cabinet Options |
640×640mm, 640×480mm, 320×160mm, custom |
|
Maintenance |
Front service – magnetic modules |
|
Installation |
Wall-mounted, ground-stacked, hanging |
|

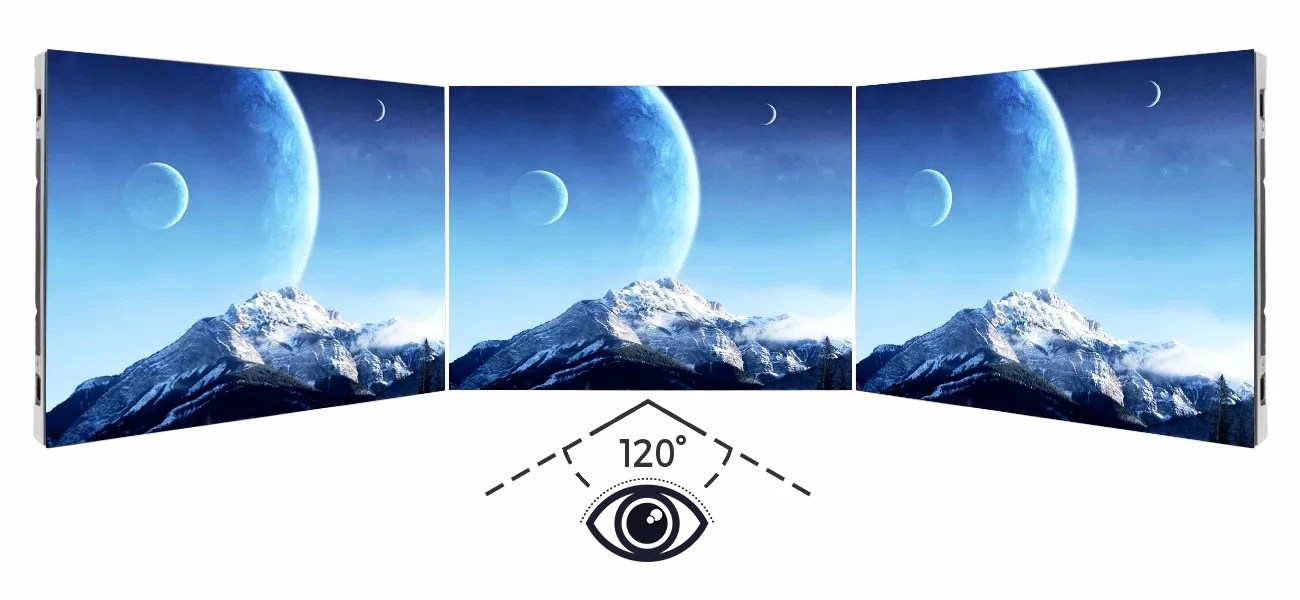

Viewing Angle |
Wide – consistent clarity |
|
Lifespan |
100,000+ hours |
|
Warranty |
3 years |
Application Scenarios

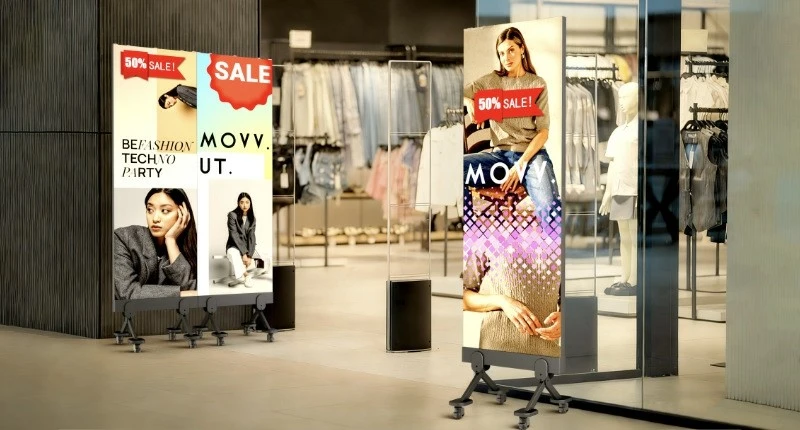

- Retail Stores: Dynamic product displays – choose P2 or P2.5 for balanced resolution and cost.

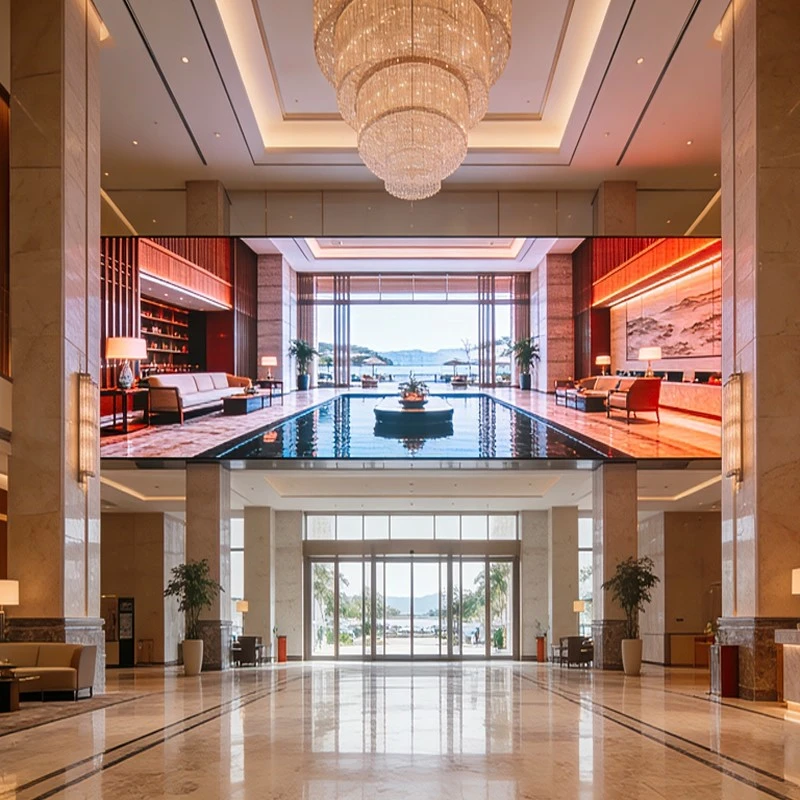

- Corporate Lobbies: Branded content – choose P1.86 or P2 for fine detail.
-
Boardrooms: Presentations and video conferencing – choose P1.25–P1.86 for ultra-fine clarity.
-
Broadcast Studios: Dynamic backdrops – choose P1.86 for flicker-free performance.
-
Control Rooms: Real-time data – choose P1.25 for mission-critical clarity.
-
Events & Exhibitions: Temporary displays – choose P2.5 or P4 for cost-effective impact.
Optional Accessories & Custom Options
- Wall-mounting brackets and hardware
- Ground-stacking frames and stands
- Hanging installation kits and rigging
- Custom cabinet sizes and configurations
- Flight cases for secure transportation
-
Spare module kits and power supplies
-
Extended warranty and maintenance packages
Project Cases
-
Retail Chain (USA): 80㎡ P2.0 LED wall – standardized 320×160mm modules enabled consistent quality across 20 store locations.
FAQ
Q1: What are the available pixel pitches?
P1.25, P1.37, P1.53, P1.66, P1.86, P2, P2.5, P4, P5 – choose based on viewing distance and resolution requirements.
Q2: What cabinet sizes are available?
Standard options: 640×640mm, 640×480mm, 320×160mm – custom configurations available for specific requirements.
Q3: How does the magnetic module system work?
Modules attach magnetically to the cabinet – tool-free removal and replacement from the front, simplifying maintenance.
Q4: Can I mix different cabinet sizes?
Yes. The standardized module size allows mixing cabinets to achieve custom aspect ratios and configurations.
Q5: What is the recommended pixel pitch for a conference room?
For conference rooms (viewing distance 2-5 meters), we recommend P1.86 or P2 for optimal clarity and detail.
Product Reference Photo
Product Reference Video
