Shenzhen ABXLED Industrial Co., Ltd. is one of the leading manufacturers and suppliers of led panel power supply in China. We are committed to providing high quality customized products with competitive price. If you're going to wholesale advanced led panel power supply, welcome to get quotation from our factory.

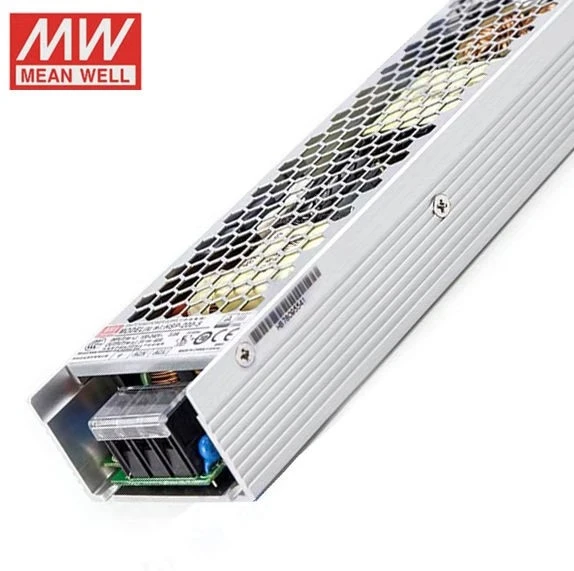

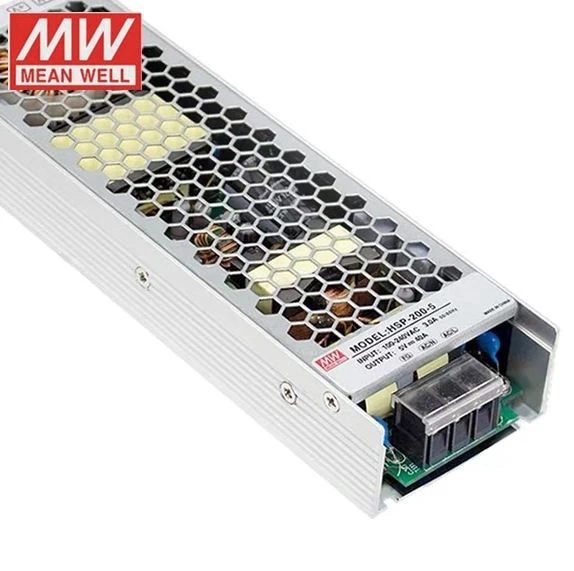

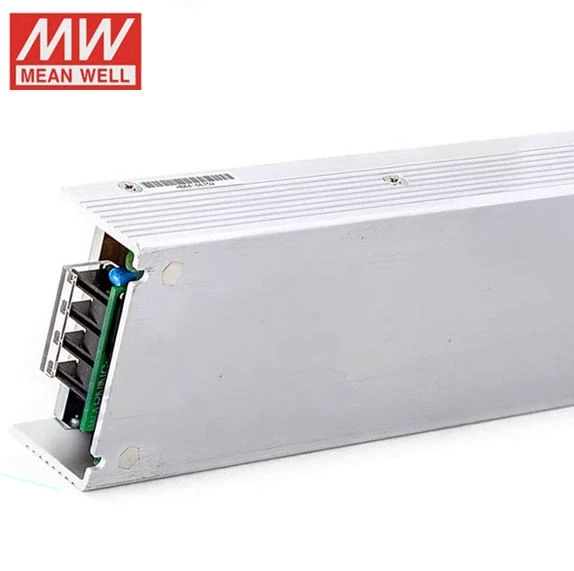

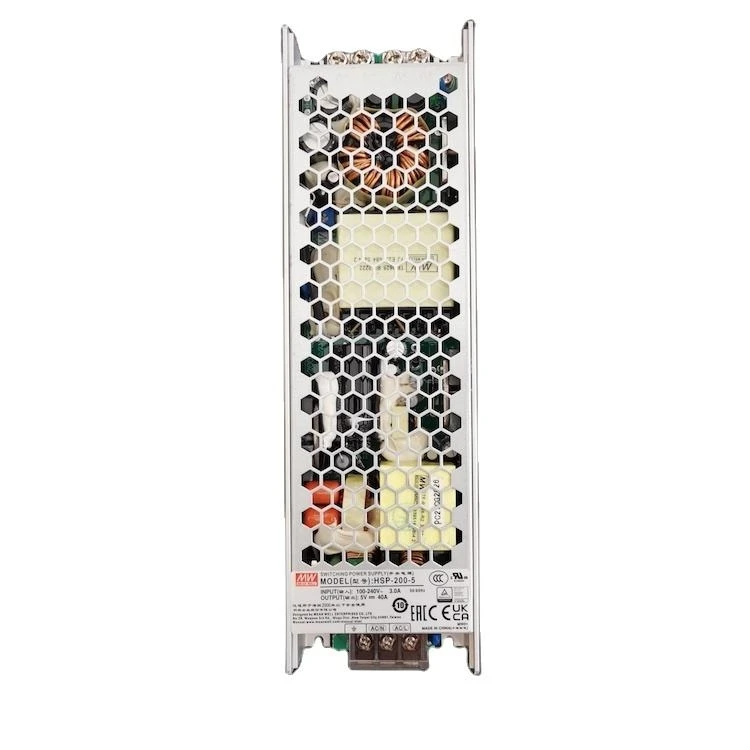

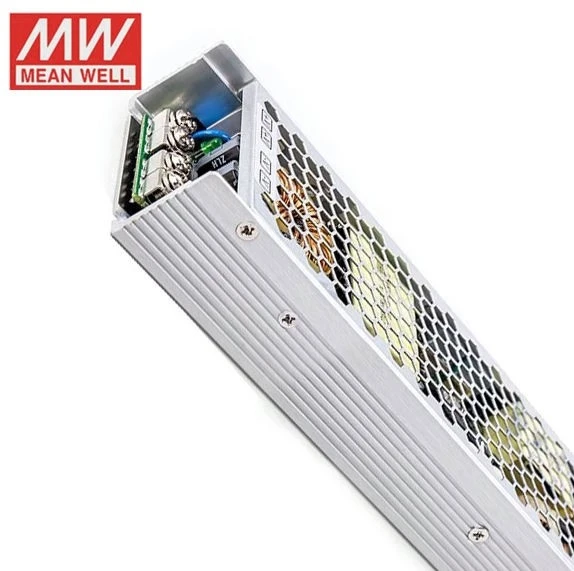

Meanwell HSP-200-5 Power Supply – 5V 40A 200W, Universal AC Input, Active PFC, Low Leakage Current, Multiple Protections, and 31mm Ultra-Thin Profile for LED & Industrial Applications

Key Benefits

The Meanwell HSP-200-5 is a high-performance 5V 40A 200W power supply designed for demanding LED display and industrial applications. It features universal AC input with full range – 90-264VAC / 127-370VDC – and a built-in active PFC function for improved power factor and efficiency. The low leakage current of less than 1.0mA makes it suitable for sensitive applications. Comprehensive protections include short circuit, overload, over voltage, and over temperature – ensuring safe, stable operation. The ultra-thin 31mm low profile design saves valuable installation space, while the conformal coated construction provides enhanced protection against moisture, dust, and environmental contaminants. The LED indicator for power on provides convenient status monitoring. With a compact size of 210×62×31mm and a weight of just 0.52kg, the HSP-200-5 is easy to integrate into space-constrained systems. Additional specifications include AC inrush current of cold start 40A/230VAC, DC adjustment range of ±10% rated output voltage, line regulation full load ≤0.5%, output over load protection 110%-150% hiccup mode auto-recovery, rise and hold up time 50mS 20mS at full load typical, and withstand voltage I/P-O/P, I/P-FG: 1.5KVAC, O/P-FG: 0.5KVAC for 1 minute. The working temperature range is -10 to +40°C at 100% load, and up to +60°C at 60% load. Certified to CCC, UL, TUV, CB, EMC, and CE standards, the HSP-200-5 is the trusted choice for professionals worldwide.

Main Features

Output: 5V 40A 200W.
Universal AC Input: Full range – 90-264VAC / 127-370VDC.
Built-in Active PFC Function: Improved power factor and efficiency.
Low Leakage Current: <1.0mA – suitable for sensitive applications.
Protections: Short circuit, overload, over voltage, over temperature.
Low Profile: 31mm – ultra-thin, space-saving.
Conformal Coated: Enhanced protection against moisture, dust, and contaminants.
LED Indicator: Power on status.
Compact Size: 210×62×31mm, 0.52KG.
Input Frequency: 47-63Hz.
AC Inrush Current: Cold start 40A/230VAC.
DC Adjustment Range: ±10% rated output voltage.
Line Regulation: ≤0.5% full load.
Over Load Protection: 110%-150% hiccup mode auto-recovery.
Rise & Hold Up Time: 50mS, 20mS at full load typical.
Withstand Voltage: I/P-O/P, I/P-FG: 1.5KVAC; O/P-FG: 0.5KVAC, 1min.
Working Temperature: -10 to +40°C at 100%; up to +60°C at 60% load.
Certifications: CCC, UL, TUV, CB, EMC, CE.

Technical Specifications

Parameter	Specification
Model	Meanwell HSP-200-5
Output	5V 40A 200W
AC Input Voltage Range	90-264VAC / 127-370VDC
Input Frequency	47-63Hz
AC Inrush Current	Cold start 40A/230VAC
Active PFC	Built-in
Leakage Current	<1.0mA
DC Adjustment Range	±10% rated output voltage
Line Regulation	≤0.5% full load
Over Load Protection	110%-150% hiccup mode auto-recovery
Rise & Hold Up Time	50mS, 20mS at full load typical
Withstand Voltage	I/P-O/P, I/P-FG: 1.5KVAC; O/P-FG: 0.5KVAC, 1min
Working Temperature	-10 to +40°C at 100%; up to +60°C at 60% load
Protections	Short circuit, overload, over voltage, over temperature
Cooling	Conformal coated, low profile 31mm
Dimensions	210×62×31mm
Weight	0.52KG
Certifications	CCC, UL, TUV, CB, EMC, CE

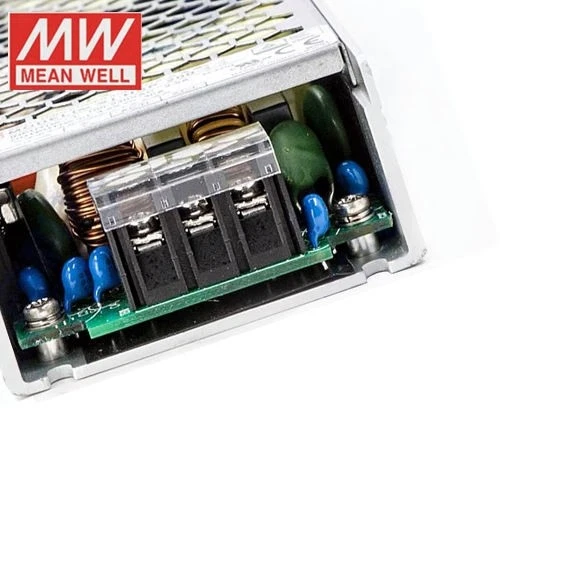

HSP 200 6

Application Scenarios

LED Display Power Supply: Reliable 5V power for LED modules and displays.
Industrial Automation: Stable power for control systems and equipment.
Telecommunications: Power for network and communication devices.
Security Systems: Reliable power for surveillance and access control.
Test & Measurement: Precision power for laboratory equipment.
General Industrial Use: Universal AC input for global applications.

Optional Accessories & Custom Options

Quantity discounts: Over $500 free delivery, over $1500 5% discount, over $3000 10% discount.
Spare units and replacement components
Mounting hardware and brackets
Extended warranty options
Technical datasheets and user manuals available upon request

Project Cases

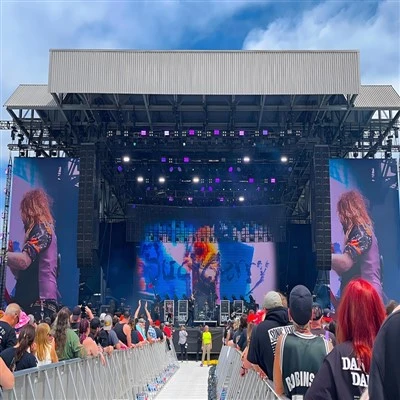

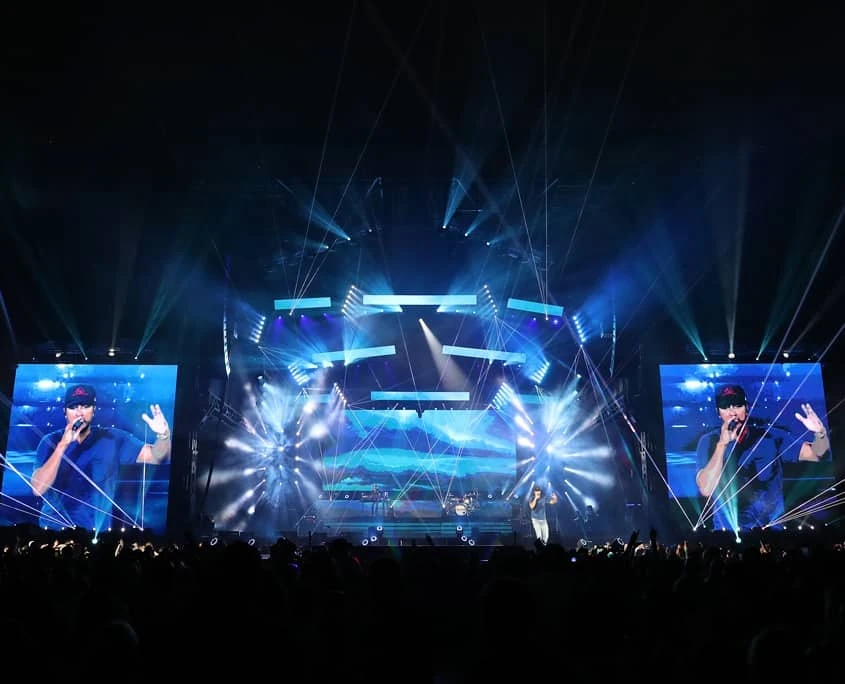

This outdoor concert stage LED display adopts Meanwell HSP200 series power supply, which delivers outstanding operational stability for long-hour live performances. The power system provides steady and reliable power output to the whole LED screen, protecting modules from voltage fluctuation risks even under complex on-site conditions. It guarantees consistent brightness and seamless playback during the live show, supporting multiple LED panels of the customized stage backdrop. This robust power solution is highly recommended for outdoor rental stage events, music festivals and large-scale live entertainment projects.
