ABXLED XR Series Virtual Production LED Display – 7680Hz Refresh Rate, Front/Rear Maintenance, -15° to +15° Curve Lock, and Broadcast-Grade Performance for Film Studios & Live Events
Key Benefits
The ABXLED XR Series is purpose-engineered for the rapidly growing fields of virtual production, extended reality (XR) staging, and broadcast television. With a 7680Hz ultra-high refresh rate, 16-bit grayscale, and 236Hz maximum frame frequency, this display delivers flicker-free, broadcast-grade visuals that synchronize flawlessly with high-speed cinema cameras – eliminating the scanning artifacts that plague lesser displays. The front and rear maintenance design, combined with N52 strong magnet module attachment and a detachable control box, minimizes downtime and simplifies field repairs. The high-precision curve lock with -15° to +15° adjustment enables immersive curved installations, while the no-black-lines design with soft edge strips ensures a seamless visual surface. Available in pixel pitches P1.9, P2.6, and P2.9, with 500×500mm and 500×1000mm cabinet options, the XR Series delivers the visual quality, creative flexibility, and operational reliability that film studios, rental companies, and event producers demand.
Main Features
- 7680Hz Ultra-High Refresh Rate: Eliminates flicker and motion blur – critical for high-speed camera capture and broadcast applications.
- 16-Bit Grayscale & 236Hz Frame Frequency: Smooth colour transitions, rich detail, and lifelike imagery – meticulously close to real-life visuals.
- Broadcast Camera Synchronization: Zero frame delay – seamlessly syncs with most major broadcast camera brands.

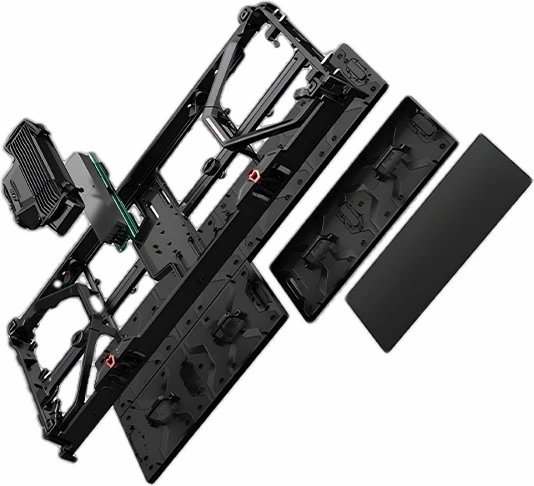

- Front & Rear Maintenance Design: N52 strong magnet adsorption LED panels enable tool-free module removal from both sides.

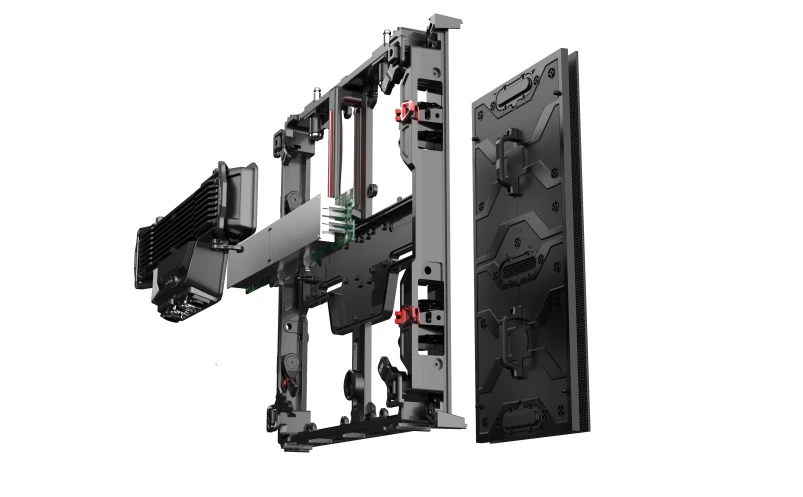

- Detachable Control Box: All components (receiving cards, hub board, power supply) in a single box – swap out in seconds to reduce downtime.
-

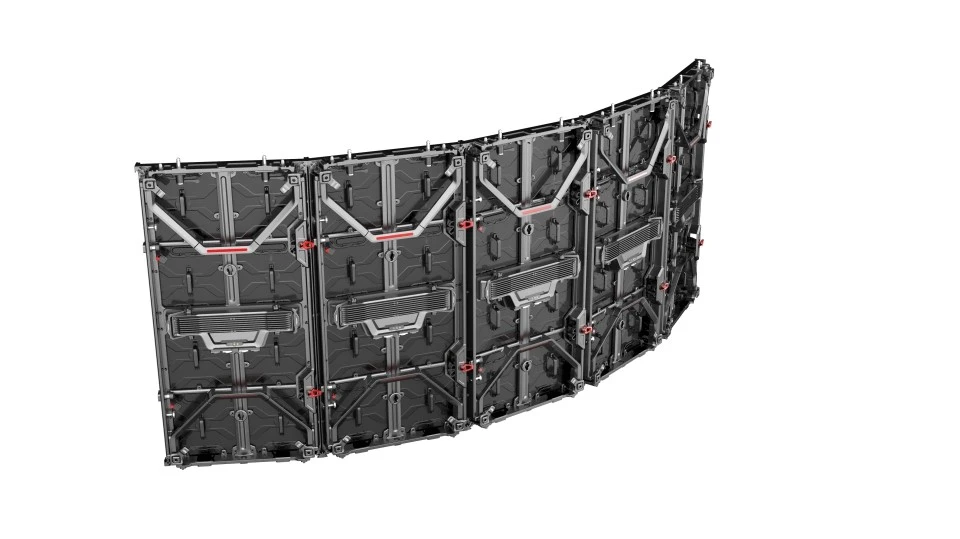

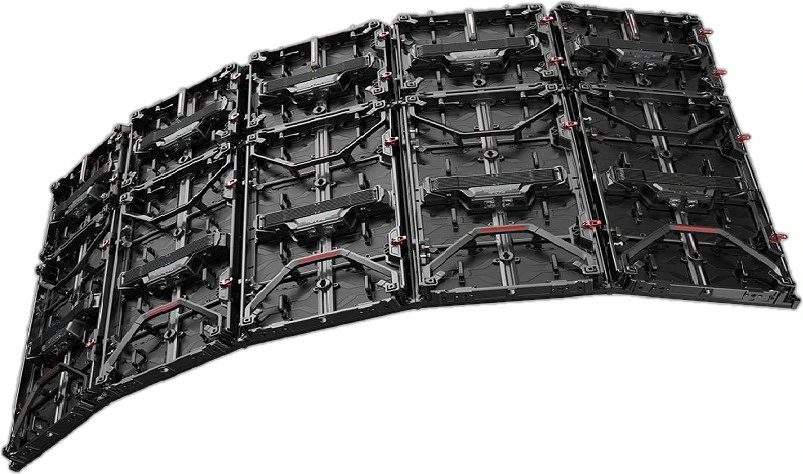

High-Precision Curve Lock: -15° to +15° rotational adjustment – accurate, easy-to-use curved configurations for concave or convex installations.
-
No-Black-Lines Design: Soft strips on left and right sides block light from behind the screen – eliminates black lines caused by panel gaps.
-

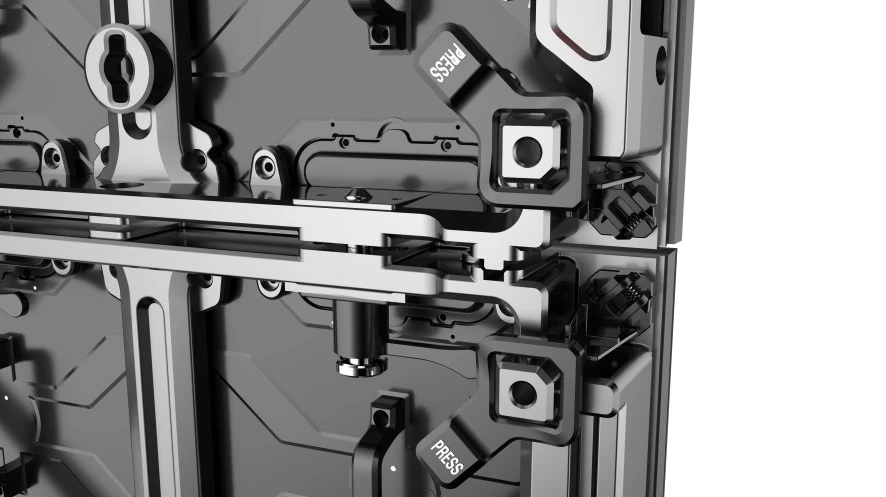

Module Edge Protection: Corner protector pops out at the press of a button – protects module edges during transport and handling.
-
Module Bottom Protection: Beveled edge design protects the display when cabinets touch the ground.
-
One-Person Operation: Ergonomic rubber grip design – comfortable handling, reduces labour costs.
-
Smart Module Calibration Storage: Each module stores its own calibration and operating data – no need to upload new data when replacing modules.
-

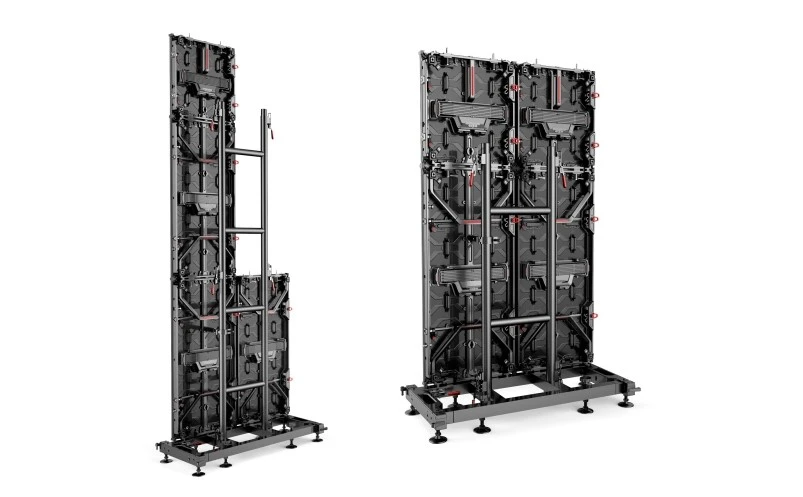

Multiple Installation Methods: Hanging (max 20 cabinets) or stacking (max 12 cabinets) – no tools required.
-
Efficient Power Load: One power cable supports 16 cabinets at 220V or 8 cabinets at 110V.
Technical Specifications
|
Parameter |
Specification |
|
Series |
XR Series – Virtual Production LED Display |
|
Cabinet Sizes |
500mm × 500mm and 500mm × 1000mm |
|
Indoor Pixel Pitches |
P1.9, P2.6, P2.9, P3.9 |
|
Outdoor Pixel Pitches |
P2.9, P3.9, P4.8 |
|
Refresh Rate |
7680 Hz |
|
Grayscale |
16-bit |
|
Maximum Frame Frequency |
236 Hz |
|
Viewing Angle |
Wide viewing angle for consistent image quality |
|
Module Attachment |
N52 strong magnets – tool-free removal |
|
Maintenance Access |
Front + rear (double maintenance) |
|
Curve Lock Range |
-15° to +15° (high-precision rotational) |
|

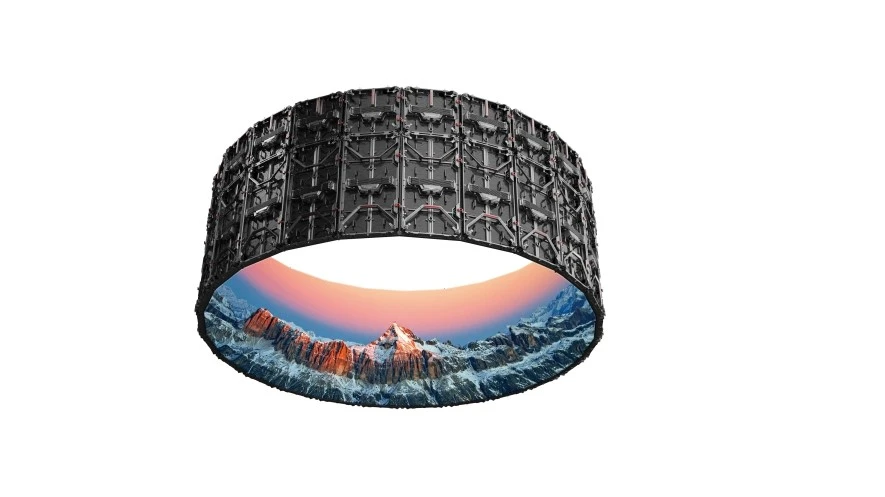

Curved Support |
Yes – concave and convex |
|
No-Black-Lines Design |
Soft edge strips on left and right sides |
|
Module Protection |
Edge corner protector + bottom beveled edge |
|
Control Box |
Detachable – all components integrated |
|
Installation |
Hanging (max 20 cabinets) or stacking (max 12 cabinets) |
|
Power Load |
16 cabinets @ 220V / 8 cabinets @ 110V |
|
Module Calibration |
Smart storage – each module stores own data |
|
Applications |
Virtual production, film studios, broadcast, live events, concerts, exhibitions |
Application Scenarios
- Virtual Production Studios: XR LED walls for film and television production – real-time background replacement and interactive environments.
- Broadcast Studios: Flicker-free displays for live news, sports, and entertainment programming.
-

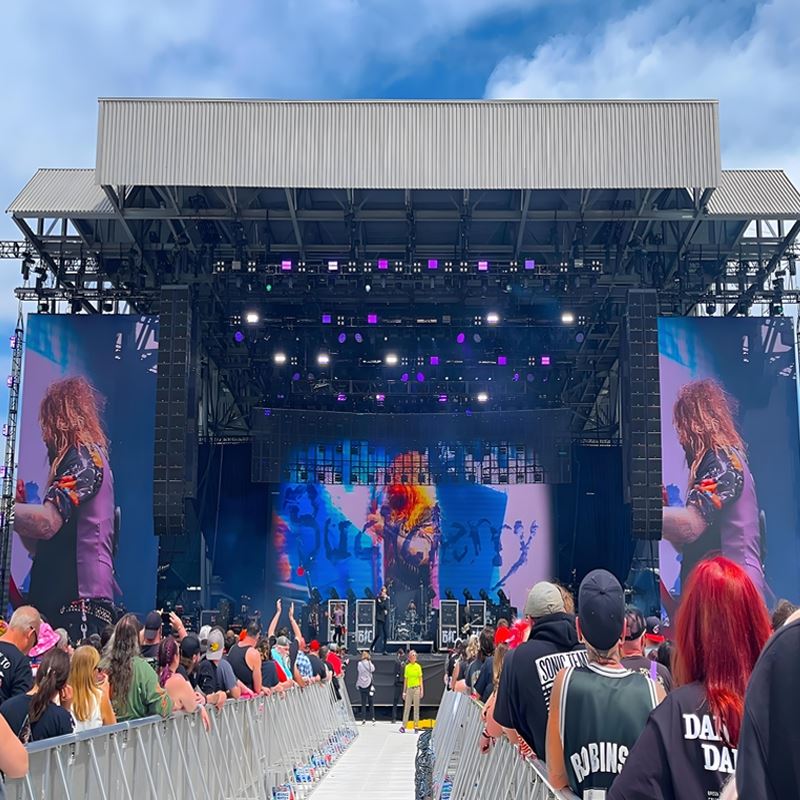

Concerts & Music Festivals: Curved stage backdrops and immersive visual environments.
-
Corporate Events & Product Launches: High-impact displays for brand activations and keynotes.
-
Exhibitions & Trade Shows: Dynamic booth displays and interactive installations.
-
Live Events & Festivals: Indoor and outdoor rental applications.
-
Sports Events: Scoreboards, replay screens, and fan engagement displays.
Optional Accessories & Custom Options
- High-precision curve lock kits (-15° to +15°)
- Flight cases with custom foam inserts for secure transportation
- Spare module kits, power supply units, and receiving cards
-
Redundant signal and power kits for fail-safe operation
-
Custom cabinet colours and branded elements
-
Extended warranty and maintenance packages
-
Custom pixel pitch configurations for specific project requirements
-
On-site technical support and training packages
Project Cases
- European Film Studio: 150㎡ XR LED wall with P1.9 fine pitch – used for major motion picture virtual production – flawless camera synchronization with zero flicker.
- North American Broadcast Studio: XR Series display used for daily live news production – 7680Hz refresh rate eliminated flicker on high-speed cameras.
- International Music Festival (Europe): 200㎡ curved XR wall with -15° to +15° curve configuration – immersive stage design with no black lines between panels.
-
Asian Corporate Event: 100㎡ XR display used for product launch – 16-bit grayscale delivered stunning visual quality for brand storytelling.
FAQ
Q1: What is the refresh rate of the XR Series?
The display features a 7680Hz ultra-high refresh rate, eliminating flicker and motion blur for high-speed camera capture.
Q2: Is the XR Series suitable for virtual production?
Yes. The XR Series is specifically developed for film and television industries, as well as extended reality (XR) applications.
Q3: What is the curve adjustment range?
The high-precision curve lock supports -15° to +15° adjustment, enabling smooth concave or convex curved installations.
Q4: How does the no-black-lines design work?
Soft strips on the left and right sides of each panel block light from behind the screen, eliminating black lines caused by panel gaps.
Q5: How is maintenance handled?
The XR Series features front and rear maintenance access. N52 strong magnet modules allow tool-free removal from either side. The detachable control box can be swapped out in seconds.
Q6: How many cabinets can be stacked or hung?
Maximum stacking: 12 cabinets. Maximum hanging: 20 cabinets.
Q7: What pixel pitch options are available?
Indoor: P1.9, P2.6, P2.9, P3.9. Outdoor: P2.9, P3.9, P4.8.
Q8: What warranty do you offer?
We provide a standard 3-year warranty covering manufacturing defects, with extended options available.

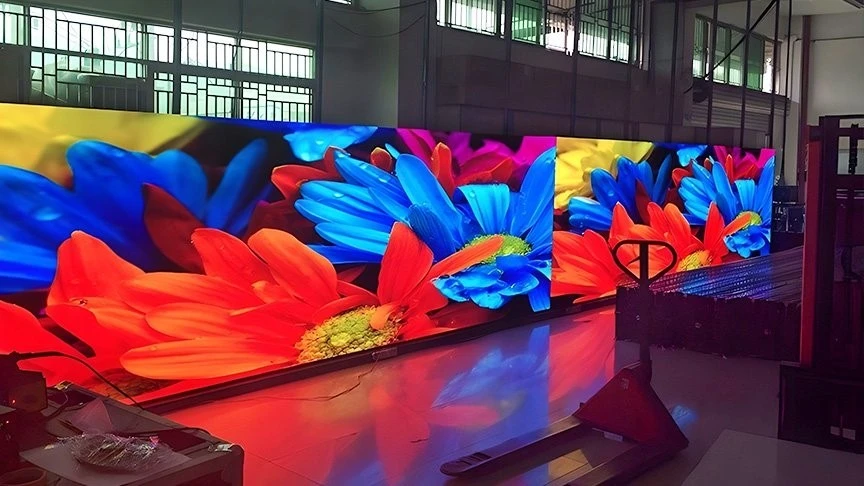

Product Reference Photo
