Shenzhen ABXLED Industrial Co., Ltd. is one of the leading manufacturers and suppliers of church led screen in China. We are committed to providing high quality customized products with competitive price. If you're going to wholesale advanced church led screen, welcome to get quotation from our factory.
ABXLED RK500 Series Rental LED Display – 500×500mm Ultra-Slim Cabinet with Double Maintenance, -10° to +10° Curve Lock, IP65 Protection, and Interchangeable 250×250mm Modules for Indoor & Outdoor Events
Key Benefits
The ABXLED RK500 Series delivers exceptional value for rental professionals seeking a versatile, high-performance LED display system. The ultra-slim 80mm die-cast aluminum cabinet weighs significantly less than conventional displays, reducing shipping costs and enabling one-person installation. The double-maintenance design with front and rear service access minimizes downtime and simplifies field repairs. The high-precision curve lock with -10° to +10° adjustment enables premium curved installations that command higher rental rates. IP65 dustproof and waterproof protection ensures reliable outdoor performance in rain, dust, and humidity. The use of standard 250×250mm interchangeable modules provides exceptional pixel pitch flexibility – simply change modules to achieve different resolutions without replacing cabinets. This modular approach reduces inventory costs and maximizes fleet utilization.
Main Features
- Ultra-Slim 80mm Cabinet Design: Die-cast aluminum construction – lightweight, durable, corrosion-resistant for long-term reliability.
- 500×500mm Standard Cabinet Size: Industry-standard format ensures compatibility with existing rental inventory.

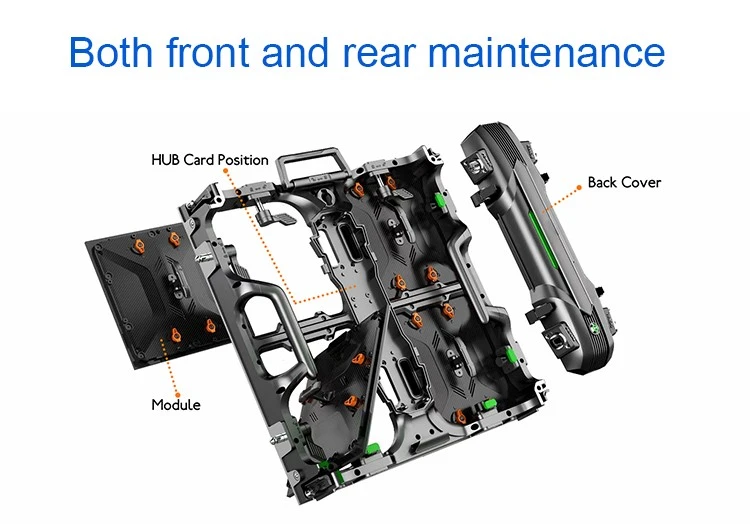

- Double Maintenance – Front & Rear Service Access: Magnetic adsorption LED panels enable tool-free module removal from both sides – maximum service flexibility.
- High-Precision Curve Lock: -10° to +10° rotational adjustment – accurate, easy-to-use curved configurations for concave or convex installations.
- Curved Installation Support: Enables immersive stage designs and creative visual experiences.
-
IP65 Dustproof & Waterproof: Fully protected against dust and water ingress – reliable outdoor performance in severe weather.
-
Detachable Versatile Control Box: Hard connection design with tool-free replacement of power supply and HUB board – reduces downtime.
-
Standard 250×250mm Interchangeable Modules: Quick pixel pitch changes – all modules share the same size and structure for maximum flexibility.
-

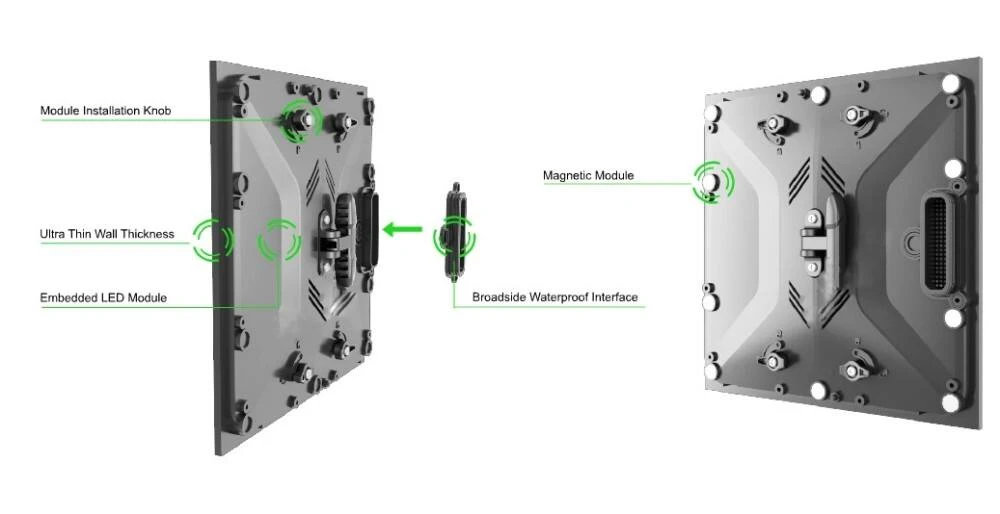

Magnetic Adsorption LED Modules: Tool-free removal and replacement – simplifies maintenance and reduces service time.
-
140° Wide Viewing Angle: Consistent color and clarity from virtually any seat in the venue.
-
Seamless Splicing: Precision-engineered cabinets align perfectly for a flawless display surface.
-
Quick-Lock Installation: One-person operation – reduces labor costs and speeds up event turnaround.
Technical Specifications
|
Parameter |
Specification |
|
Series |
RK500 Series – Rental LED Display |
|
Cabinet Size |
500mm × 500mm |
|
Module Size |
250mm × 250mm (standardized, interchangeable) |
|
Cabinet Thickness |
80mm – ultra-slim |
|
Cabinet Material |
Die-cast aluminum – corrosion-resistant |
|
Pixel Pitch Options |
Interchangeable via module replacement |
|
Maintenance Access |
Front + rear (double maintenance) |
|
Module Attachment |
Magnetic adsorption – tool-free removal |
|
Curve Lock Range |
-10° to +10° (high-precision rotational) |
|
Curved Support |
Yes |
|
Control Box |
Detachable – hard connection design |
|
Protection Rating |
IP65 (dustproof + waterproof) |
|
Viewing Angle |
140° (H) × 140° (V) |
|
Installation |
Quick-lock system – one-person operation |
|
Applications |
Indoor and outdoor rental events |
Application Scenarios
- Concerts & Music Festivals: Curved stage backdrops and side screens – immersive visual experiences.
- Outdoor Events & Festivals: IP65-rated displays for rain, dust, and harsh weather conditions.
- Corporate Events & Product Launches: Professional video walls for keynotes, presentations, and brand activations.
- Exhibitions & Trade Shows: Lightweight, easy-to-install booth displays.
- Sporting Events: Scoreboards, replay screens, and fan engagement displays.
- Broadcast Studios: Flicker-free screens for TV production and virtual sets.
-
House of Worship: Versatile displays for services and community events.
Optional Accessories & Custom Options
- High-precision curve lock kits (-10° to +10°)
- IP65 weatherproof upgrade (standard)
- Flight cases with custom foam inserts for secure transportation
- Interchangeable module sets for different pixel pitches
- Spare module kits, power supply units, and HUB boards
- Redundant signal and power kits for fail-safe operation
-
Custom cabinet colours and branded elements
-
Extended warranty and maintenance packages
Project Cases
- International Music Festival (Europe): 200㎡ curved RK500 wall installed in under 4 hours by a 4-person crew – IP65 protection withstood rain and wind throughout the 3-day event.
- Corporate Product Launch (USA): 100㎡ flat RK500 video wall with seamless splicing – delivered immersive brand storytelling for a Fortune 500 client.
- Outdoor Sports Event (Asia): IP65-rated RK500 display operated flawlessly through heavy rain and high humidity – maintaining full visual performance for 5 consecutive days.
-
Concert Tour (North America): RK500 Series used across 15-city tour – interchangeable modules allowed quick pixel pitch changes between venues.
FAQ
Q1: What is the cabinet thickness of the RK500 Series?
The ultra-slim cabinet measures just 80mm, enabling compact storage and easy transport.
Q2: Is the RK500 Series suitable for outdoor use?
Yes. The IP65 rating provides full dustproof and waterproof protection, with corrosion-resistant die-cast aluminum construction.
Q3: What is the curve adjustment range?
The high-precision curve lock supports -10° to +10° adjustment, enabling smooth concave or convex curved installations.
Q4: Can I change the pixel pitch?
Yes. The RK500 Series uses standard 250×250mm interchangeable modules – simply change modules to achieve different pixel pitches.
Q5: How is maintenance handled?
The RK500 Series features double maintenance with front and rear service access. Magnetic adsorption LED panels allow tool-free module removal from either side.
Q6: How many cabinets can be hung vertically?
The quick-lock system supports vertical hanging of up to 20 cabinets.
Q7: What warranty do you offer?
We provide a standard 3-year warranty covering manufacturing defects, with extended options available.
