NovaPro UHD Jr All-in-One 4K LED Video Controller – NovaStar's Professional Solution with 8 Inputs, 16 Ethernet Ports, 4 Fiber Ports, and 8.3M Pixel Loading Capacity
Key Benefits
The NovaPro UHD Jr is NovaStar's all-in-one controller that integrates video processing with sending card functions – delivering professional-grade performance for demanding LED display applications. Featuring multiple input connectors supporting up to 8 inputs simultaneously, and multiple output connectors including 16 Ethernet ports and 4 optical fiber ports, this controller offers exceptional versatility for stage control systems, conference sites, exhibition sites, and more. Thanks to 4K×2K@60Hz ultra-high-definition inputs and outputs, the NovaPro UHD Jr ensures stunning visual quality with remarkable clarity. The HDR output greatly enhances display image quality – providing more clear and vivid images. With a loading capacity of up to 8,300,000 pixels, this controller can drive large-scale LED displays with ease. The low-latency output realizes zero frame latency from device to receiving card – ensuring real-time performance for live events and broadcast applications. Additional features include 3D image output, decimal refresh rate, customized BKG settings, personalized image scaling, capture function, and cascading support for up to 4 devices. Compatible with NovaStar's V-Can smart control software, the NovaPro UHD Jr is the ideal choice for professional LED video control.
Main Features
- Various Inputs and Outputs: 1 × DP 1.2, 4 × DVI, 1 × HDMI 2.0 with loop output, 2 × 12G-SDI with loop output.
-
More Output Connectors, Larger Loading Capacity: 16 × Neutrik Ethernet output, 4 × optical fiber output – loading capacity up to 8,300,000 pixels.
-
HDR Output: Greatly enhances display image quality – more clear and vivid image.
-
3D Image Output: Supports 3D display applications.
-
Decimal Refresh Rate: Flexible refresh rate settings.
-
Low-Latency Output: Zero frame latency from device to receiving card.
-
Customized BKG Settings: Supports pure color and image BKGs.
-
Personalized Image Scaling: 3 kinds of image scaling modes – auto fit, pixel to pixel, custom.
-
Capture Function: Captures input source image – can be used as a BKG image.
-
Cascading Supported: Up to 4 devices can be cascaded to load a super-large screen.
-
V-Can Supported: NovaStar's smart control software.
-
Wide Applications: Stage control systems, conference sites, exhibition sites.
Technical Specifications
|
Parameter |
Specification |
|
Series |
NovaPro UHD Jr |
|
Type |
All-in-one 4K LED video controller |
|
Inputs |
1 × DP 1.2, 4 × DVI, 1 × HDMI 2.0 (loop output), 2 × 12G-SDI (loop output) |
|
Outputs |
16 × Neutrik Ethernet, 4 × optical fiber |
|
Loading Capacity |
Up to 8,300,000 pixels |
|
Resolution |
4K×2K@60Hz |
|
HDR |
Supported |
|
3D Output |
Supported |
|
Refresh Rate |
Decimal refresh rate |
|
Latency |
Zero frame latency |
|
BKG Settings |
Pure color and image BKGs |
|
Image Scaling |
Auto fit, pixel to pixel, custom |
|
Capture Function |
Supported |
|
Cascading |
Up to 4 devices |
|
Control Software |
V-Can (NovaStar) |
|
Power Connector |
AC 100 V–240 V, 50/60 Hz |
|
Operating Temperature |
-10°C to 50°C |
|
Storage Temperature |
-30°C to 70°C |
|
Operating Humidity |
0% RH to 80% RH |
|
Dimensions |
3U standard chassis – 482.6 × 396.0 × 139.0 mm |
|
Max Power Consumption |
70 W |
Application Scenarios
-
Stage Control Systems: Real-time video processing for live performances and concerts.
-
Conference Sites: High-resolution displays for presentations and video conferencing.
-
Exhibition Sites: Dynamic visual displays for trade shows and exhibitions.
-
Broadcast Studios: Low-latency, HDR-ready video control for live production.
-
Large-Scale LED Displays: Up to 8.3 million pixels loading capacity.
-
Super-Large Screens: Cascading up to 4 devices for massive displays.
Optional Accessories & Custom Options
-
V-Can smart control software
-
Spare input/output modules
-
Rack-mount hardware for 3U chassis
-
Extended warranty and technical support packages
-
Technical datasheets and user manuals available upon request
Project Cases

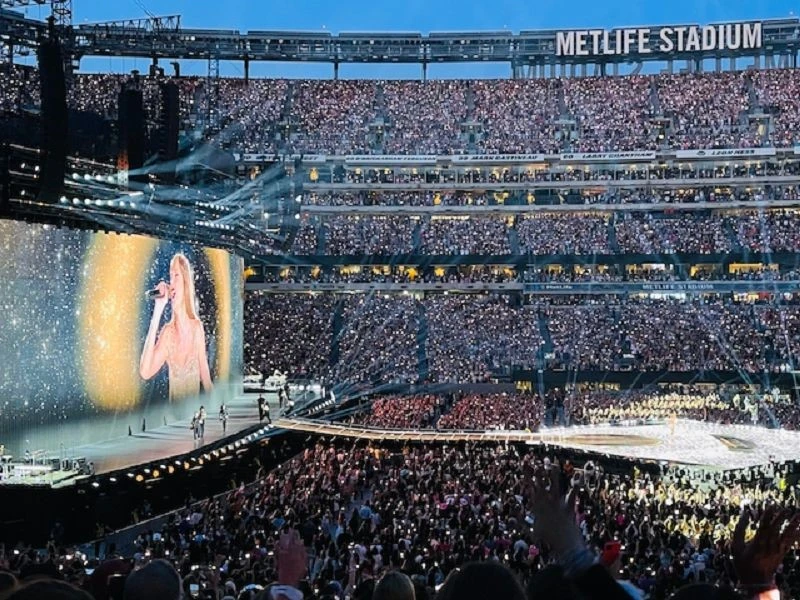

This giant LED stage screen for the stadium concert adopts the NovaPro UHD Jr All-in-One 4K LED Video Controller. The all‑in‑one hardware handles 4K signal input, image processing and output stably, presenting sharp, synchronized live visuals for massive audiences. It supports real-time video switching and flexible parameter adjustment, greatly simplifying on-site installation and debugging. Even under high-load live show conditions, it maintains stable signal transmission and consistent display performance. It is a trusted control solution for large concerts, outdoor festivals and big venue live events.
FAQ
Q1: What is the NovaPro UHD Jr?
NovaStar's all-in-one controller that integrates video processing with sending card functions.
Q2: How many inputs does it support?
Up to 8 inputs simultaneously – 1 × DP 1.2, 4 × DVI, 1 × HDMI 2.0, 2 × 12G-SDI.
Q3: How many outputs does it have?
16 × Neutrik Ethernet output and 4 × optical fiber output.
Q4: What is the loading capacity?
Up to 8,300,000 pixels.
Q5: What resolution does it support?
4K×2K@60Hz ultra-high-definition inputs and outputs.
Q6: What is the latency?
Zero frame latency from device to receiving card.
Q7: Does it support HDR?
Yes – HDR output greatly enhances display image quality.
Q8: Does it support 3D?
Yes – 3D image output supported.
Q9: Can multiple devices be cascaded?
Yes – up to 4 devices can be cascaded to load a super-large screen.
Q10: What control software is supported?
V-Can – NovaStar's smart control software.
Q11: What is the power consumption?
Max 70 W.
Q12: What is the warranty?
Contact us for warranty details and extended options.

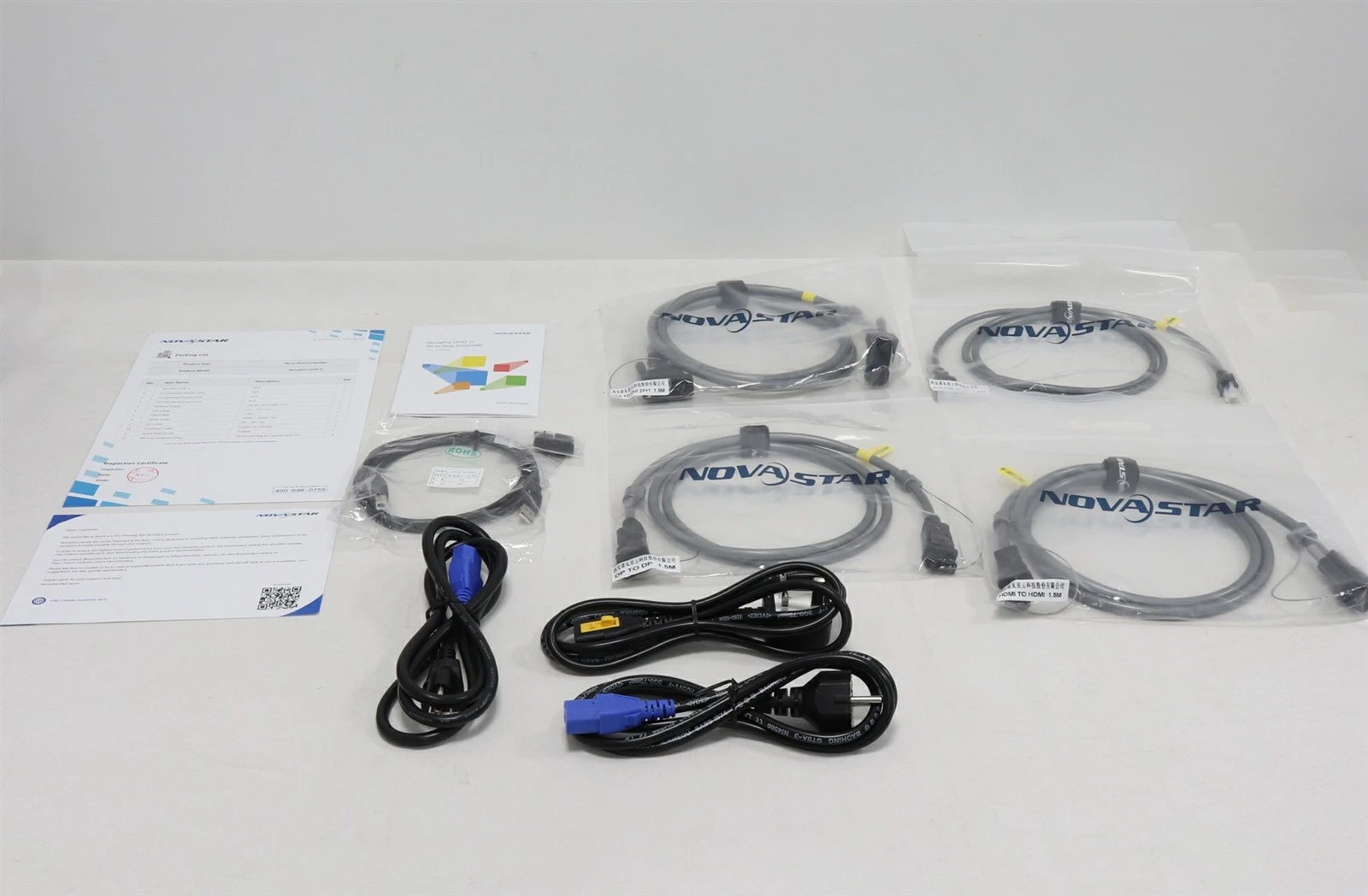

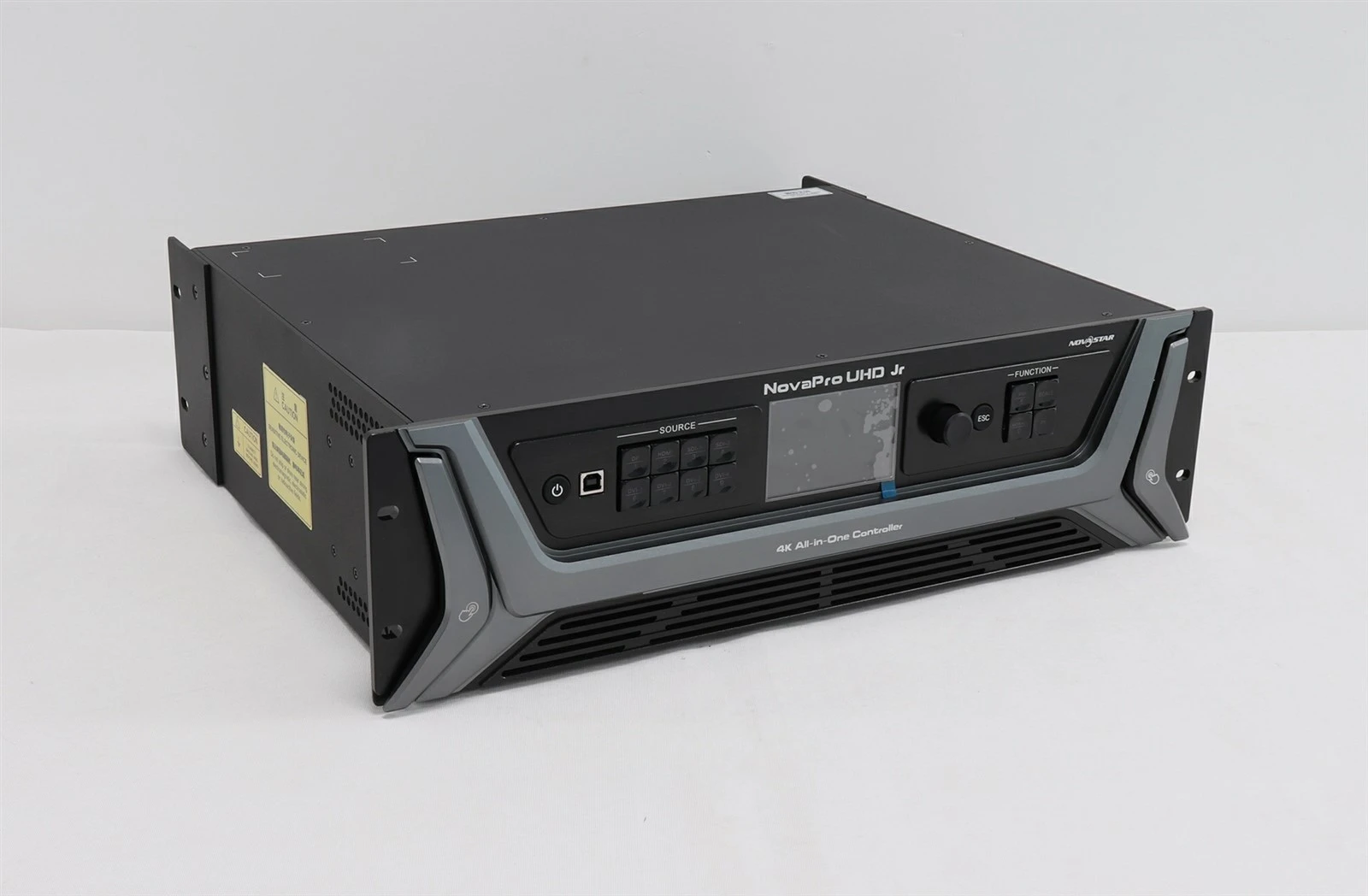

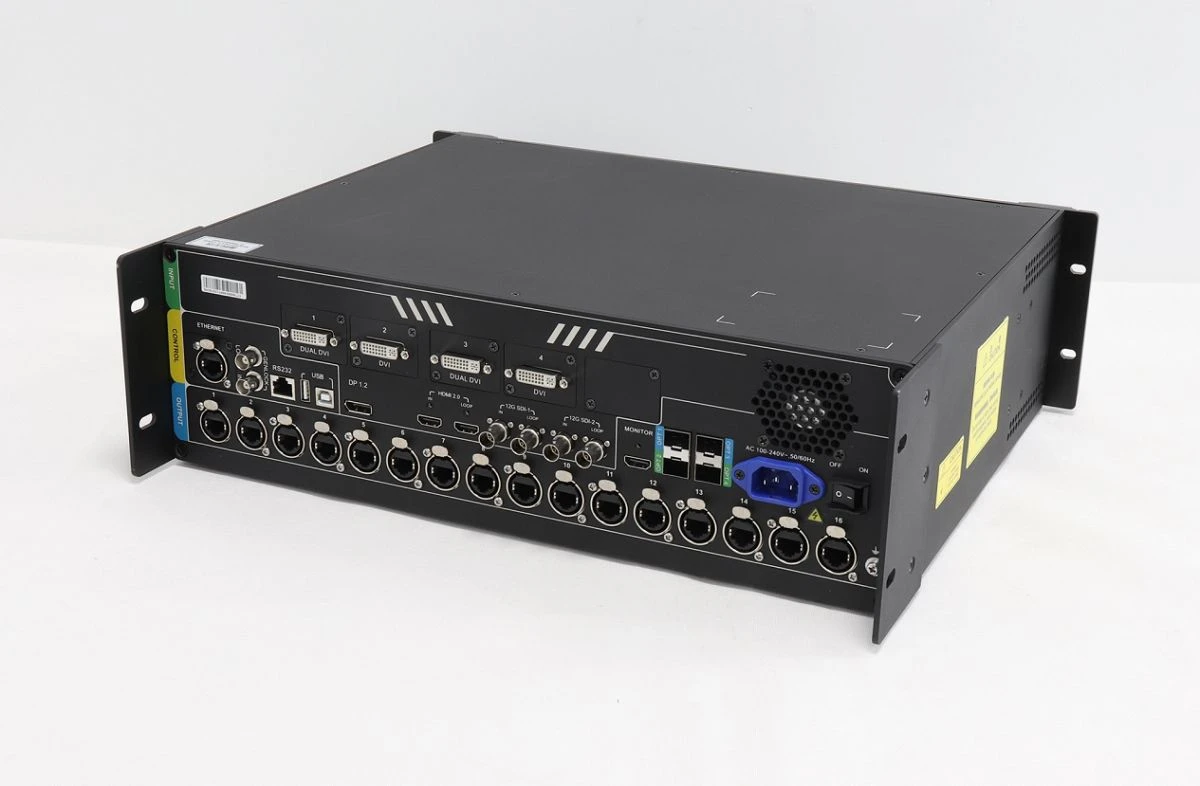

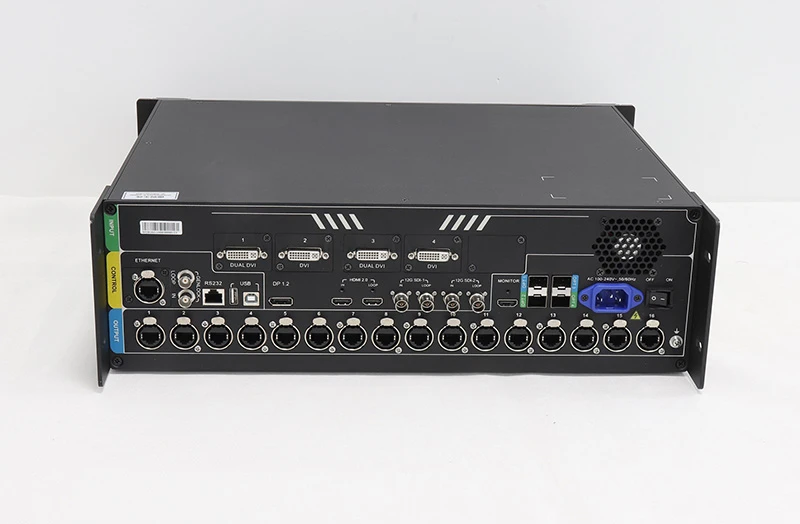

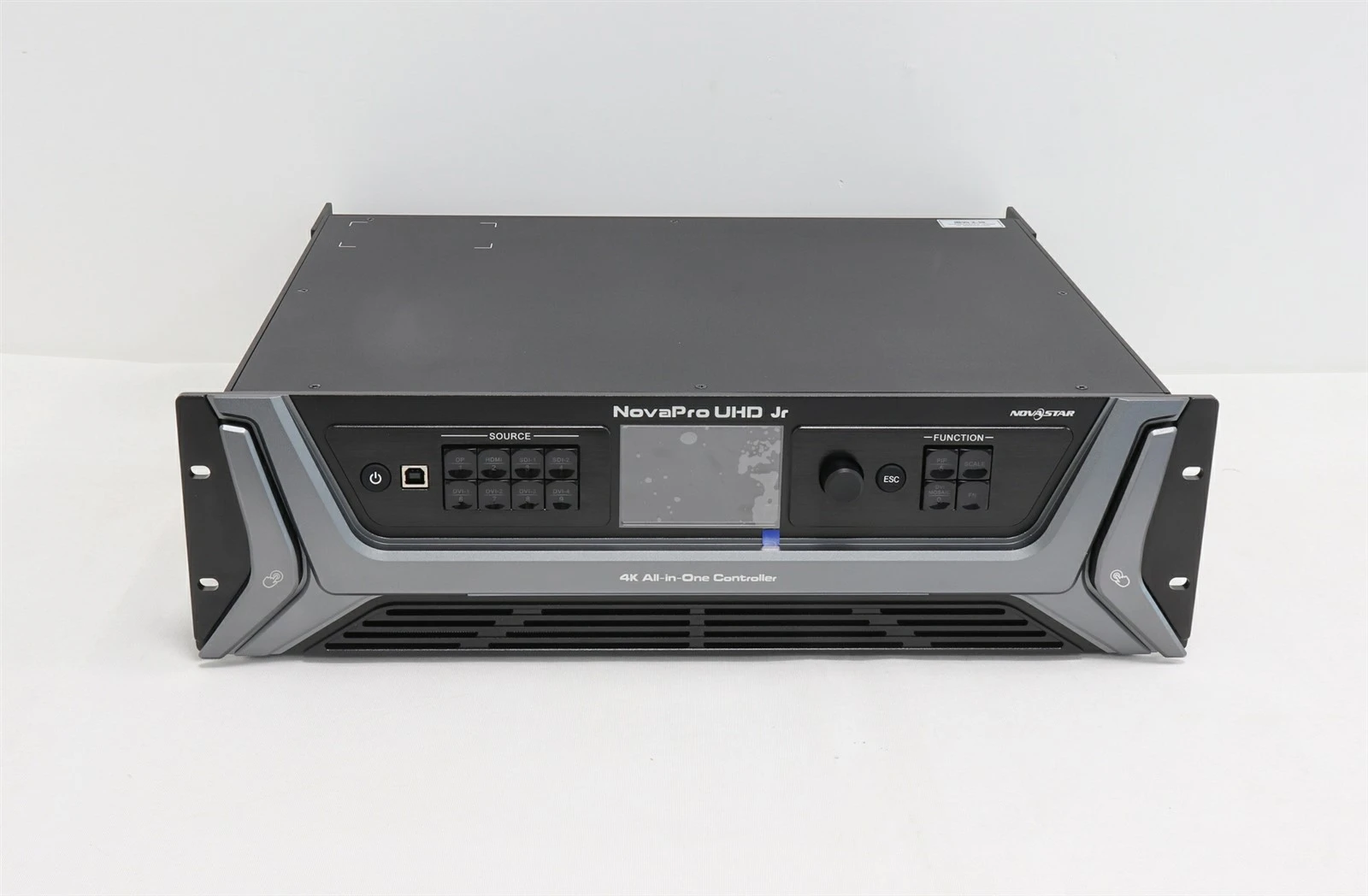

Product Reference Photo
Product Reference Video
