NovaStar CMS130 All-in-One LED Video Controller – Five Inputs, Dual Ethernet Outputs, 1.3 Million Pixel Loading Capacity, and 6 Presets for Retail, Hotels, Exhibitions & TV Studios
Key Benefits
The NovaStar CMS130 is a hardware-based, all-in-one LED video controller that combines video processing with LED screen control in a compact 1U industrial chassis. It accepts five common source formats – DVI, HDMI 1.3, VGA, USB, and CVBS – without the need for a separate input converter. The processed signal is delivered through two Ethernet output ports, with a total loading capacity of up to 1.3 million pixels. Designed for operators who need fast source switching, flexible image scaling, and straightforward LED screen setup in one device, the CMS130 is ideal for retail displays, hotels, conference spaces, exhibition venues, event systems, and TV studios. Key features include direct source switching via input buttons, flexible image control (layer position and size adjustment, input cropping, full-screen/pixel-to-pixel/custom scaling), EDID management, quick configuration for LED screen setup, and preset recall for up to six user-defined configurations. The controller also supports external independent audio and control through central control devices. With a rated power consumption of just 12W and an operating temperature range of –20°C to +60°C, the CMS130 delivers reliable, energy-efficient performance for demanding professional applications.
Main Features
- Five Input Types: DVI, HDMI 1.3, VGA, USB, and CVBS – no separate input converter needed.
-
Direct Source Switching: Input source buttons for quick movement between connected signals.
-
Flexible Image Control: Adjust layer position and size, crop input, choose full-screen, pixel-to-pixel, or custom scaling.
-
EDID Management: Manage source-display communication for predictable signal setup.
-
Dual Ethernet Output: Drive an LED canvas of up to 1.3 million pixels through two Ethernet ports.
-
Fast Configuration: Quick configuration for LED screen setup – adjust brightness and Gamma.
-
Preset Recall: Save and load up to six user-defined presets for repeatable scenarios.
-
System Integration: Support external independent audio and control through central control devices.
-
1U Industrial Chassis: Compact, durable design for professional installations.
-
Energy Efficient: Rated power consumption of just 12W.
Technical Specifications
|
Parameter |
Specification |
|
Model |
NovaStar CMS130 |
|
Controller Type |
All-in-one LED video controller and processor |
|
Maximum Loading Capacity |
Up to 1.3 million pixels |
|
Video Inputs |
1× DVI, 1× HDMI 1.3, 1× VGA, 1× USB, 1× CVBS |
|
LED Outputs |
2× Ethernet output ports |
|
Scaling Modes |
Full screen, pixel-to-pixel, custom |
|
User Presets |
Up to 6 |
|
Power Input |
100–240V AC, 50/60Hz |
|
Rated Power Consumption |
12 W |
|
Operating Temperature |
–20°C to +60°C |
|
Operating Humidity |
20% RH to 90% RH, non-condensing |
|
Storage Humidity |
10% RH to 95% RH, non-condensing |
|
Dimensions |
482.6 × 250.0 × 50.0 mm |
|
Net Weight |
2.8 kg |
|
Total Weight |
6 kg |
|
Noise Level (25°C) |
38 dB(A) |
|
Carrying Case |
565 × 88 × 328 mm |
|
Large Outer Case |
585 × 353 × 113 mm |
|
Included Accessories |
Power cable, USB cable, DVI cable, HDMI cable, Certificate of Approval |
Application Scenarios
-
Retail & Shopping Malls: Manage digital signage sources, adjust brightness and Gamma.
-
Hotels & Conference Spaces: Switch between HDMI, DVI, and VGA presentation sources; recall saved layouts.
-
Exhibitions & Events: Use input cropping, scaling, and six presets for repeatable display configurations.
-
TV Studios: Control source size and position while keeping screen configuration in the same hardware unit.
-
Corporate Environments: Reliable video processing and LED screen control in one compact device.
Optional Accessories & Custom Options
-
Carrying case (565 × 88 × 328 mm)
-
Large outer case (585 × 353 × 113 mm)
-
Power cable, USB cable, DVI cable, HDMI cable included
-
Certificate of Approval included
-
Extended warranty and technical support packages
-
Specification PDF available for download
Project Cases
This outdoor stage LED screen with P4.81 pixel pitch is controlled by the NOVA CMS 130 video processor for the live concert event. The processor delivers stable signal management, real-time image switching and precise color tuning to match the dynamic stage atmosphere. The P4.81 LED panels create a large seamless backdrop, presenting clear live camera feeds and vibrant graphic content to the audience. It supports fast setup for rental stage projects and maintains reliable performance during long-hour performances. This integrated solution is ideal for concerts, fan meetings and indoor live entertainment events
FAQ
Q1: What is the NovaStar CMS130?
An all-in-one LED video controller that combines video processing, image scaling, and LED screen control in a hardware-based 1U unit.
Q2: How many pixels can the CMS130 control?
Up to 1.3 million pixels through two Ethernet output ports.
Q3: Which video inputs does the CMS130 support?
One DVI input, one HDMI 1.3 input, one VGA input, one USB input, and one CVBS input.
Q4: Does the CMS130 support image scaling and cropping?
Yes – full-screen, pixel-to-pixel, and custom scaling, plus adjustable layer position, layer size, and input cropping.
Q5: Can the CMS130 save display presets?
Yes – up to six user-defined presets for repeatable screen configurations.
Q6: What is the operating temperature range?
–20°C to +60°C, with 20% RH to 90% RH non-condensing operating humidity.
Q7: What is the power consumption?
Rated power consumption of 12 W.

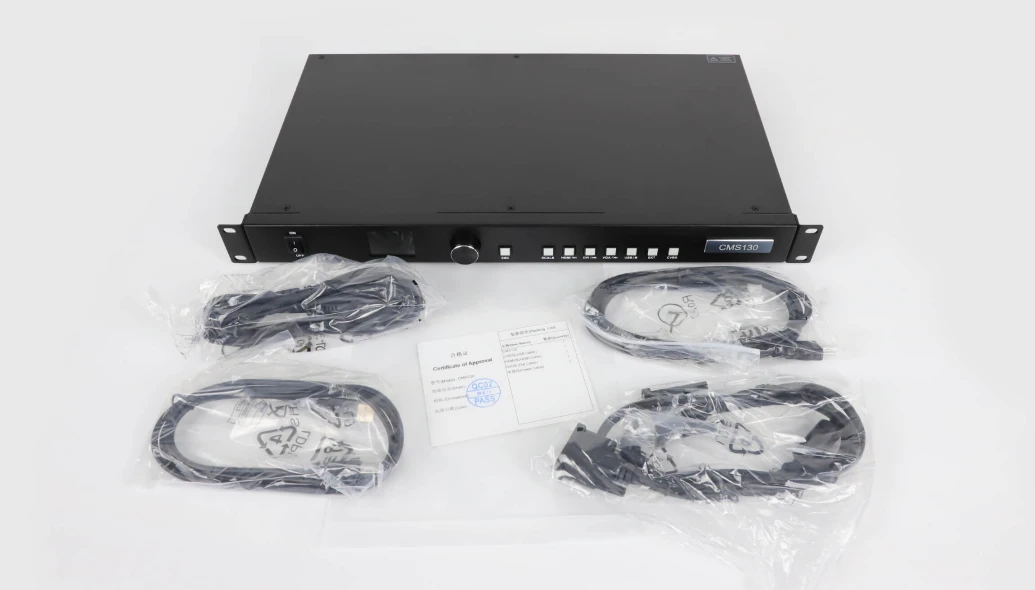

Q8: What accessories are included?
Power cable, USB cable, DVI cable, HDMI cable, and Certificate of Approval.
Q9: What is the net weight?2.8 kg; total weight 6 kg.
Power cable, USB cable, DVI cable, HDMI cable, and Certificate of Approval.
Q10: Is the CMS130 right for my LED screen?
Choose the CMS130 when the total LED canvas is within 1.3 million pixels, two Ethernet outputs meet the receiving-card layout, and at least one of its five input formats matches your source equipment.

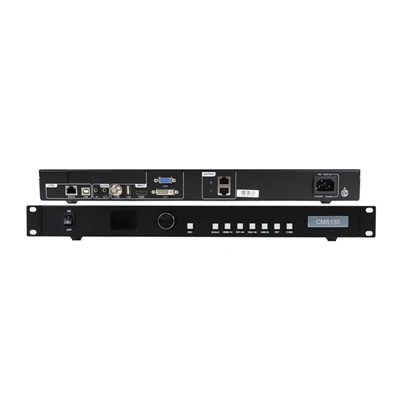

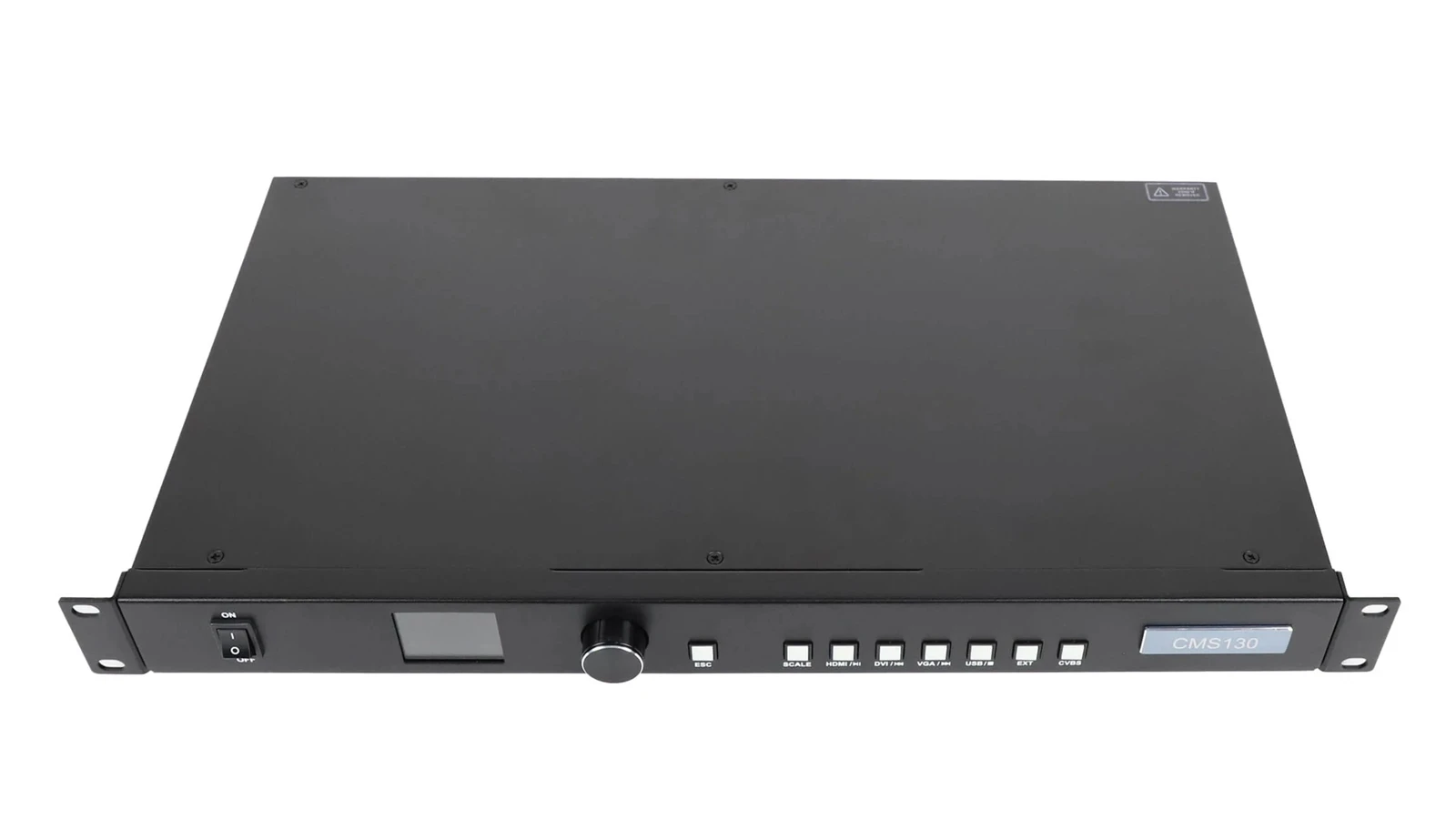

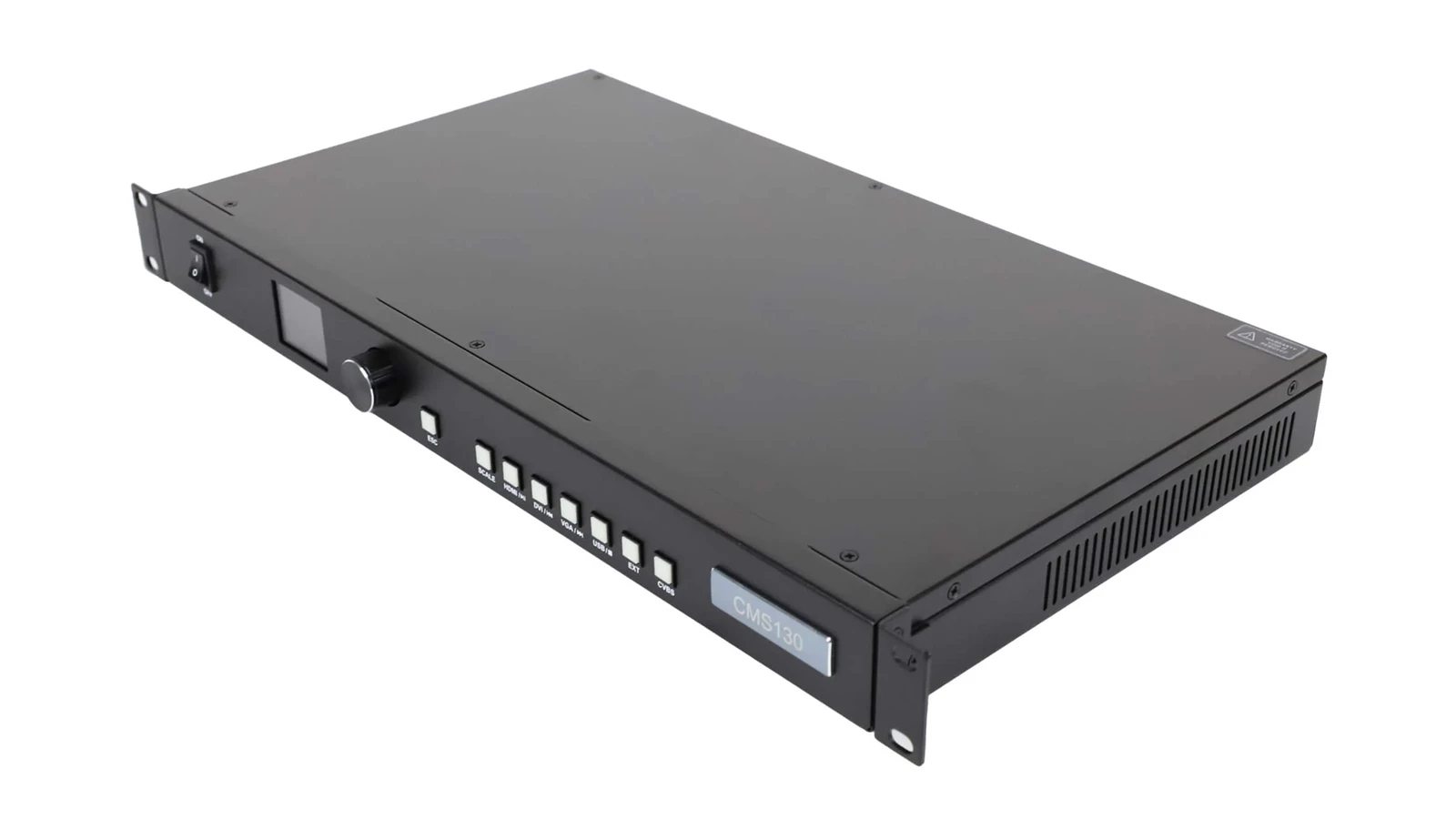

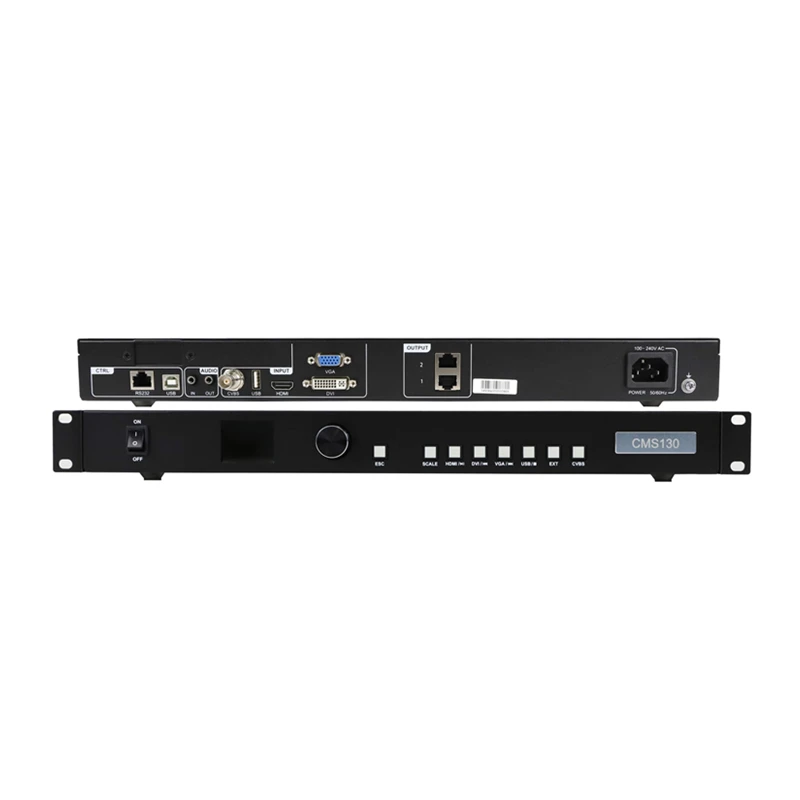

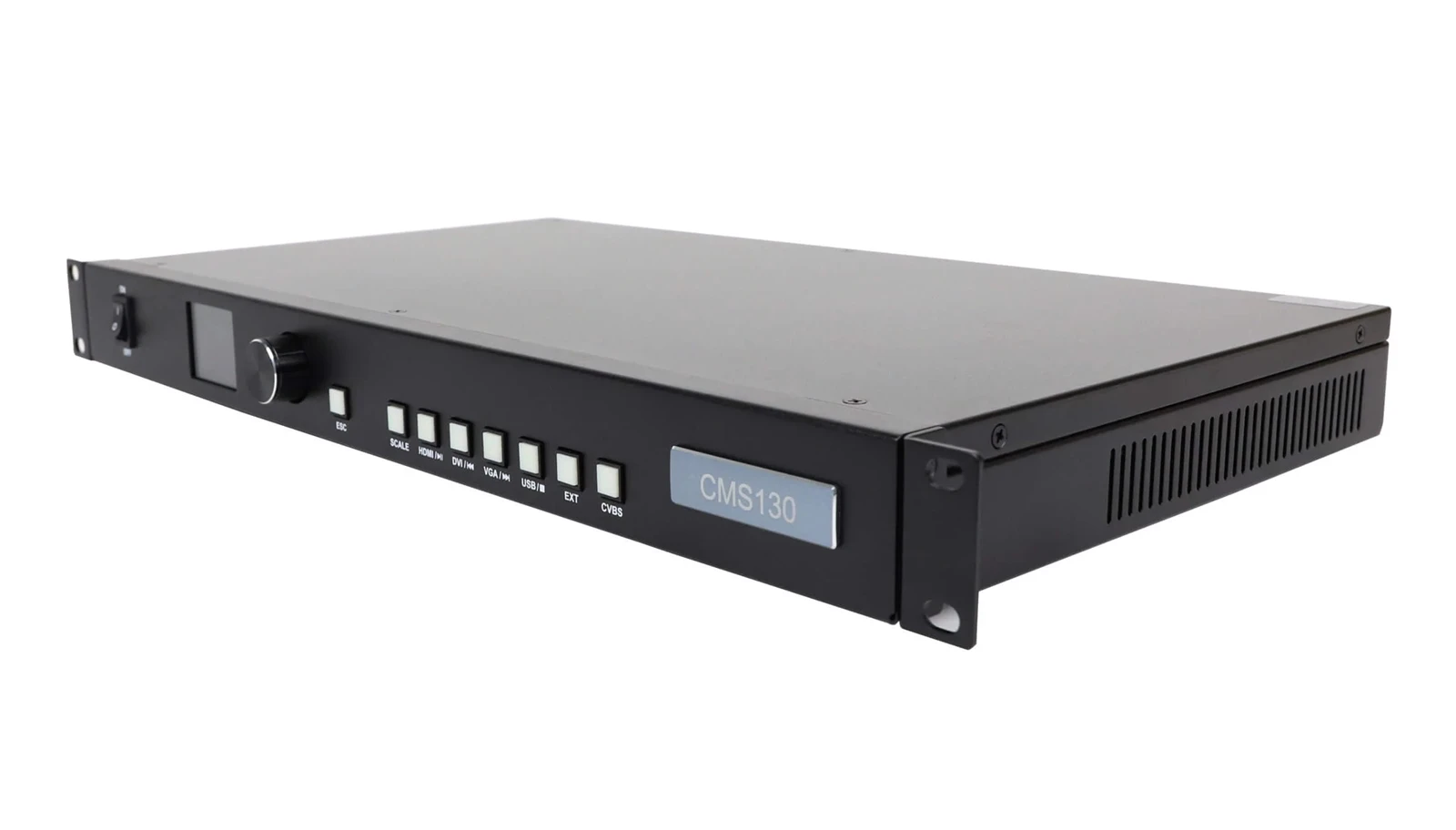

Product Reference Photo
