How to Specify an Outdoor Energy Saving LED Display – Common Cathode Design, IP66 Ratings, and the Costs Buyers Overlook
The Energy Saving Claim – What Actually Produces It
"Energy saving" appears on many outdoor LED datasheets. The number is only meaningful if you know what generates it. In the OA Series, the saving comes from a common cathode power architecture. Power is supplied separately to the red channel and the blue/green channel, so current reaches each lamp bead more precisely and less energy is lost as heat.
The measurable result is operating temperature. A conventional outdoor panel runs around 50°C. The common cathode design runs lower, which affects component lifespan, color stability, and whether active cooling is required. Fanless operation is a direct consequence of this design - the module casing is exposed to air, and no air conditioning is needed.
IP66 on Both Faces – Why It Matters for Maintenance
Many outdoor panels are rated IP65 or IP66 on the front face only. The rear, where power supplies and control cards sit, is protected to a lower standard. The OA Series applies IP66 to both front and rear. The practical difference appears during cleaning and after storms: the panel can be pressure washed without disassembly, and moisture does not migrate to the rear electronics.
Panel Weight and the Hidden Steel Frame Cost
A 26kg aluminum panel versus a steel equivalent changes more than shipping. It changes the steel frame required to hold the screen. Buyers commonly report at least 30% reduction in frame cost when switching from steel to aluminum. On retrofit projects where the mounting structure already exists, the weight difference often determines feasibility.
Pixel Pitch Selection for Outdoor Viewing
Outdoor viewing distances are longer than indoor, so the pitch calculation shifts.
|
Pixel Pitch |
Practical Outdoor Viewing Distance |
Typical Use |
|
P4.44 |
4–12 m |
Feature screens, close pedestrian traffic |
|
P5.7 |
6–18 m |
Mixed-traffic retail locations |
|
P6.667 |
8–25 m |
Theme parks, large plazas |
|
P8 |
12–35 m |
Roadside billboards |
|
P10 |
20–50 m |
Highway and long-distance viewing |
Choosing a finer pitch than the site requires adds cost without visible improvement. Choosing a coarser pitch than the audience distance allows produces visible pixel structure.
Contrast Ratio and Advertising Content
The 5000:1 contrast ratio matters most when content mixes text, product imagery, and dark backgrounds. Higher contrast separates these elements more clearly, which improves readability at distance. For advertising content that changes frequently, contrast is often more noticeable to viewers than peak brightness.
Maintenance Access and Total Cost

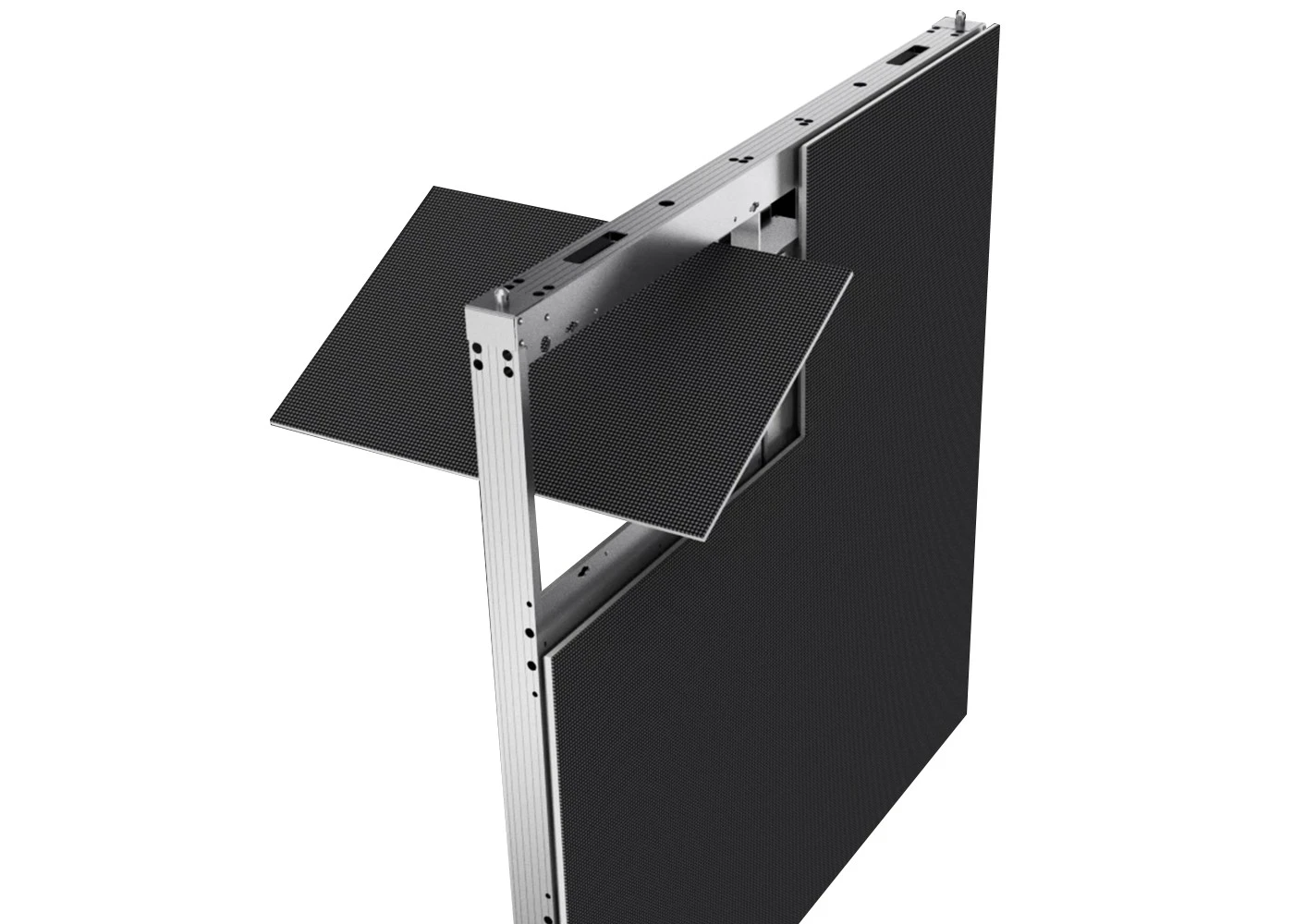

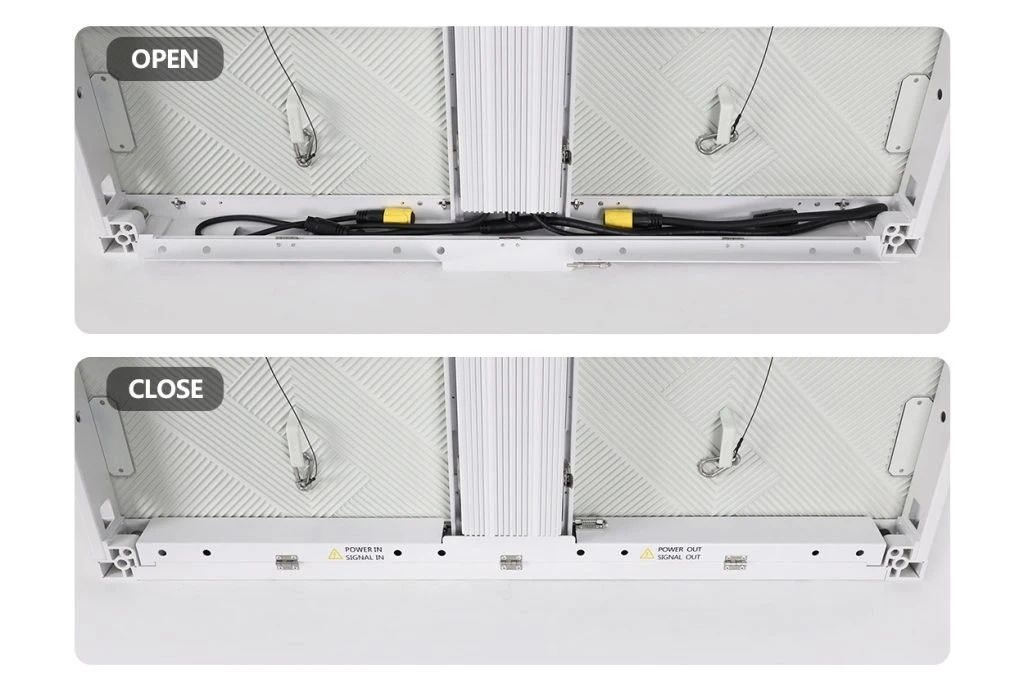

The 480×320mm module is accessible from both front and rear. This matters because outdoor screens are often mounted where rear access is difficult. A panel that requires rear access may need a service corridor or lift equipment, adding cost that does not appear in the panel price. The integrated handles and fast lock mechanism also reduce installation labor.
Questions to Ask Every Outdoor LED Supplier
- Is the IP66 rating applied to both front and rear, or front only?
- What is the panel weight, and what steel frame reduction does it allow?
-
What is the measured operating temperature at full brightness?
-
Is the energy saving based on common cathode design or a different architecture?
-
Is active cooling required, or is the panel fanless?
-
Can the module be serviced from both sides?
-
What percentage of the chassis is recyclable?
Project Cases
This is a large double‑pillar outdoor LED billboard installed in an open public area, supported by two robust cylindrical columns with a shaded resting space beneath. The screen displays a vivid close‑up image of assorted fruits including apples, oranges, grapes, and plums against a bright blue background, showcasing the panel's exceptional color reproduction and image clarity. The high‑brightness LED display delivers rich, saturated colors even under overcast outdoor conditions, making the content visually striking from a distance. Positioned in a landscaped area with modern buildings nearby, this installation serves as an attractive digital signage solution for commercial advertising, public information, or promotional displays in community and retail environments.
FAQ
Q1: What is the difference between module weight and panel weight?
The 480×320mm module weighs 2kg. The assembled 960×960mm panel weighs 26kg.
Q2: Is the panel suitable for seaside installations?
Yes. The aluminum chassis does not rust, and IP66 protects both faces.
Q3: Does the panel require air conditioning?
No. The fanless design exposes the module casing directly to air.
Q4: No. The fanless design exposes the module casing directly to air.
Yes. The support can be assembled at a 90-degree right angle or 90-degree curved angle.
Q5: What is the contrast ratio?
5000:1.
Q6: What certifications does the panel carry?
CE and RoHS.
