ABXLED OA Series Outdoor Energy Saving LED Display – 960×960mm Common Cathode Aluminum Panel, IP66, 5000:1 Contrast
Product Overview

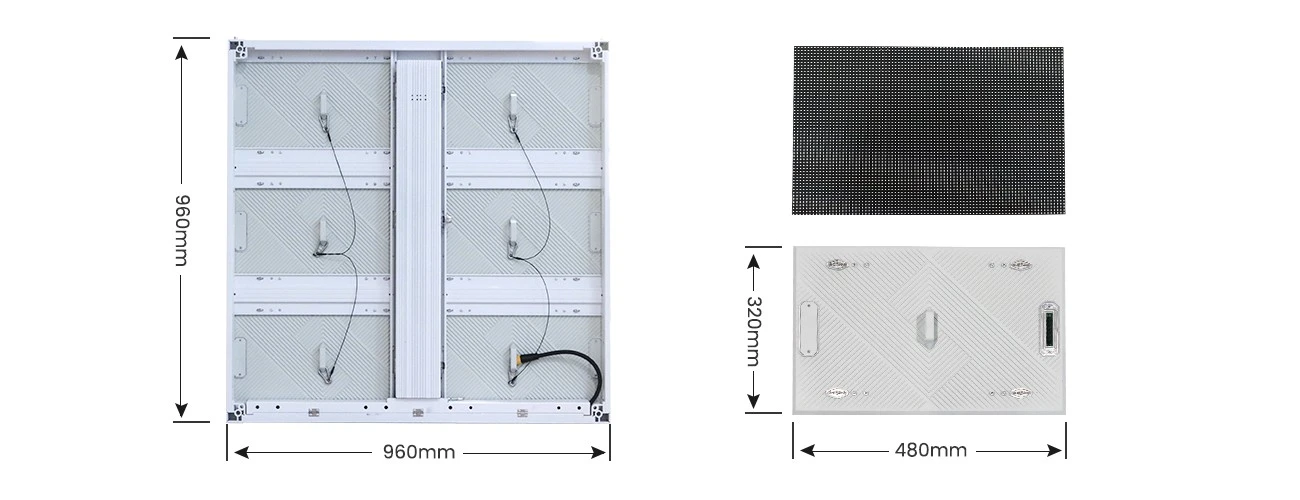

The ABXLED OA Series is a common cathode outdoor LED display built on a die-cast aluminum chassis. It is designed for billboards and outdoor advertising screens that run continuously under direct sun, rain, dust, and coastal air. The 480×320mm module format and 960×960mm cabinet size are standardized across the range, so screens can be scaled or reconfigured without changing the underlying platform.
Core Specifications
|
Parameter |
Specification |
|
Pixel Pitch Options |
P10, P8, P6.667, P5.7, P4.44 |
|
Cabinet Sizes |
960×960mm, 960×1280mm, 960×640mm |
|
Module Size |
480mm × 320mm |
|
Module Weight |
2kg |
|
Panel Weight |
26kg |
|
Panel Depth |
83mm |
|
Protection Rating |
IP66 (front and rear) |
|
Contrast Ratio |
5000:01:00 |
|
Refresh Rate |
3840Hz, 7680Hz |
|
LED Encapsulation |
SMD 3-in-1 |
|
Energy Design |
Common cathode |
|
Recyclability |
90% |
|
Certifications |
CE, RoHS |
|
Operating Temperature |
-40°C to +80°C |
What Defines This Panel
- Common cathode power architecture. Power is supplied separately to the red channel and the blue/green channel. Current is distributed more precisely to each lamp bead, which reduces power consumption and lowers heat generation during operation.

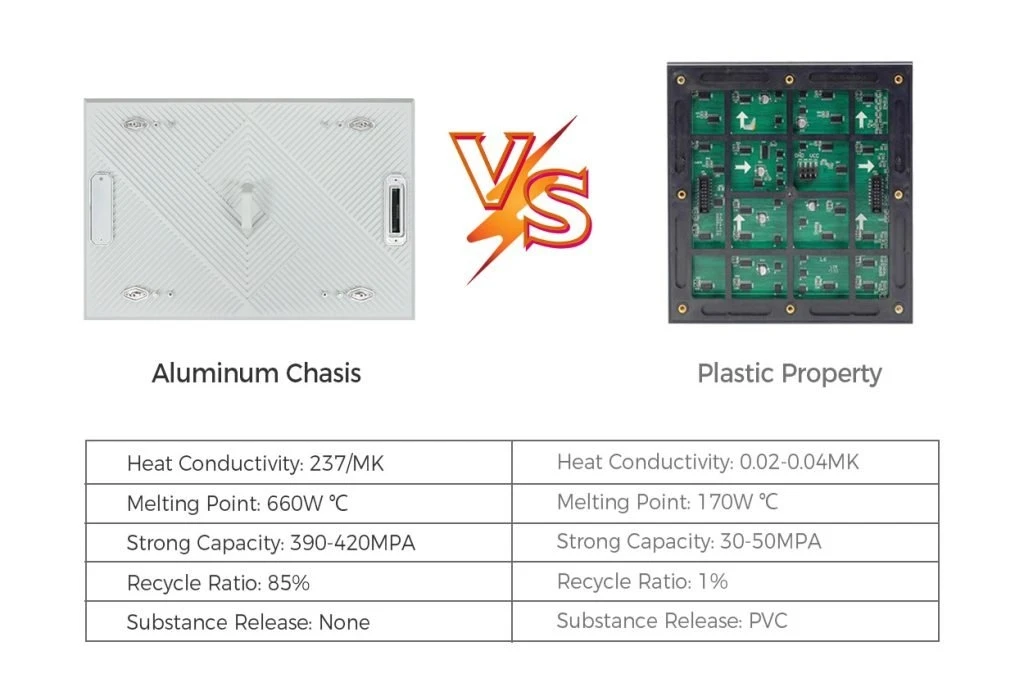

- Aluminum chassis, 26kg panel. The die-cast aluminum construction is roughly 50% lighter than an equivalent steel cabinet. That weight reduction cuts steel frame costs by at least 30% and lowers the load on existing structures.
- IP66 on both faces. Front and rear are sealed against dust and water. The aluminum housing does not rust, so the panel suits seaside and high-humidity sites.
-
5000:1 contrast ratio. The high contrast separates light and dark elements more clearly, which matters for advertising content that mixes text, product images, and dark backgrounds.
-

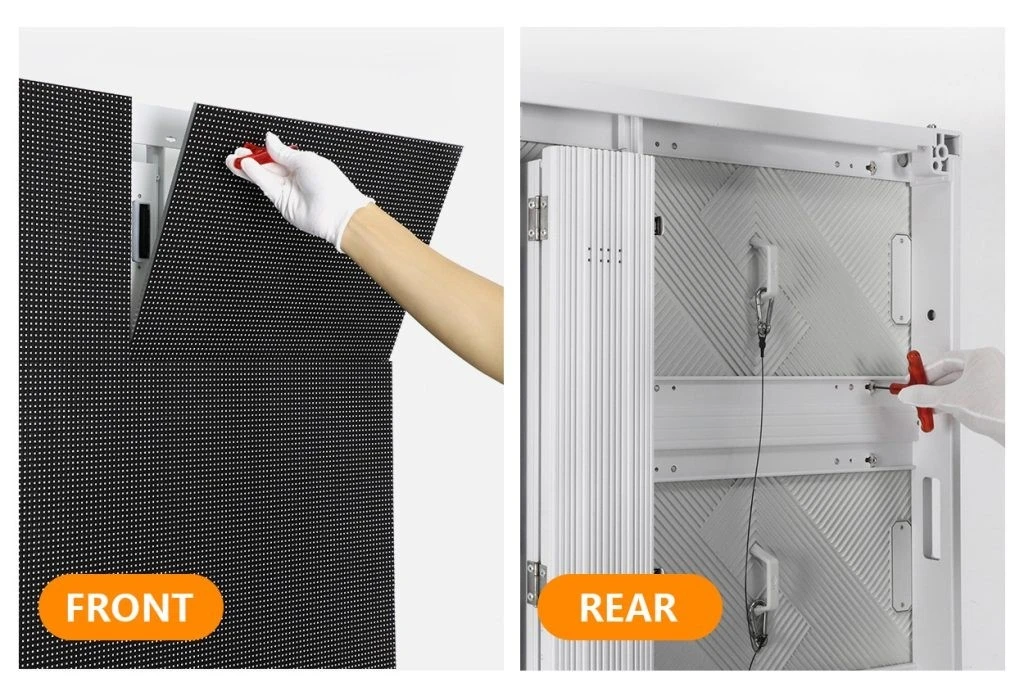

Front and rear service. The 480×320mm module is accessible from both sides. Modules and components can be serviced with a wrench, and integrated handles and locks speed up installation.
-
Fanless cooling. The module casing is directly exposed to air. No air conditioning is required, and the panel operates silently in dusty or humid environments.
Configuration Options

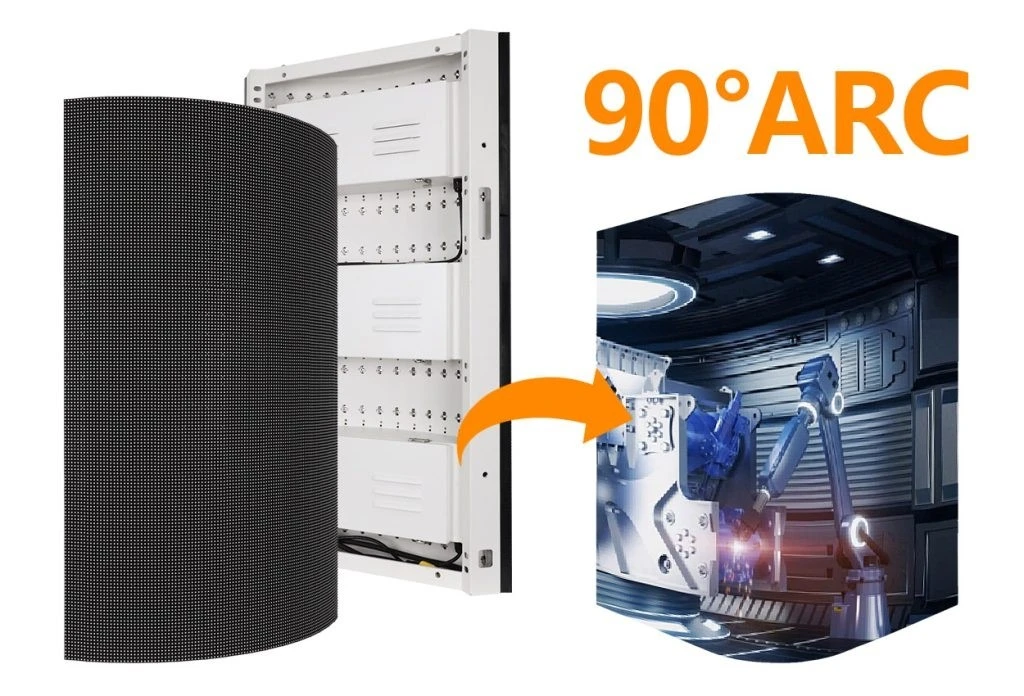

The support structure can be assembled as a 90-degree right angle or a 90-degree curved angle. With the appropriate configuration, the panels form a seamless curved display for naked-eye 3D effects.
Cabinet Design Details

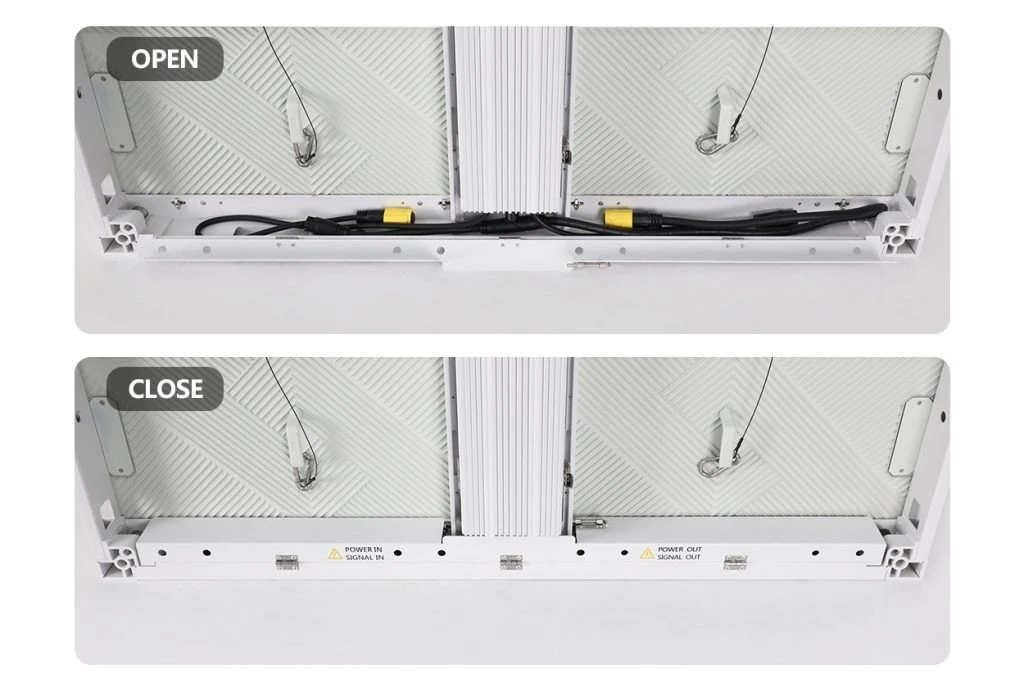

- Position pins, module handles, safety ropes, structure locks, and hidden cable grooves are integrated into the cabinet. The back cover is removable, and location tabs keep modules aligned during assembly.
-
H2: Applications
-
Pedestrian malls, shopping centers, theme parks, transportation hubs, and other high-traffic outdoor locations.
FAQ
Q1: What is the module weight?
2kg per 480×320mm module. The assembled panel weighs 26kg.
Q2: What is the panel depth?
83mm.
Q3: Is the panel waterproof on both sides?
Yes. IP66 rated front and rear.
Q4: Can the screen be curved?
Yes. The support can be configured for a 90-degree right angle or 90-degree curved angle.
Q5: What certifications does it carry?
CE and RoHS.
Q6: Is the aluminum recyclable?
Yes. The die-cast aluminum chassis is 90% recyclable.
Project Cases

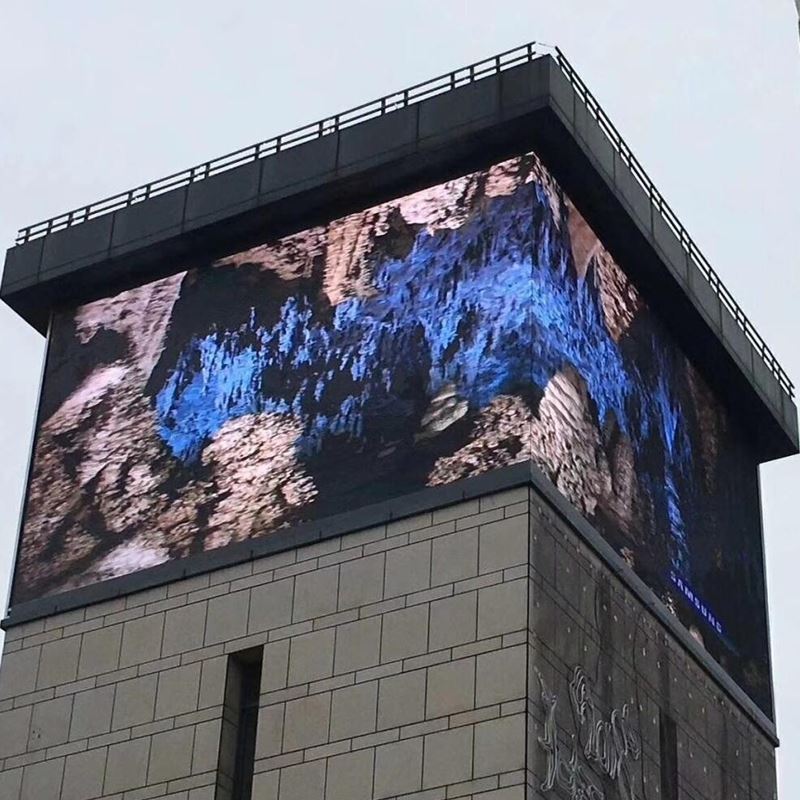

This is a corner outdoor LED display mounted on the exterior of a city building. The special angular design enables continuous visual presentation across two adjacent sides of the structure. The screen shows a stunning cave landscape with vivid blue and brown rock textures, delivering immersive visual effects even from a distance. With excellent color rendering, the LED panel showcases fine image details, creating a striking 3D-like visual impact for passers-by. As a creative urban digital signage solution, this corner screen breaks the limit of flat billboards, offering brands more creative space and greatly enhancing the attractiveness of urban commercial buildings.
