ABXLED Oi Series – Engineering Excellence: SMD Outdoor LED Display with 7680Hz Refresh Rate, IP65 Protection, 4-Fan Cooling, and 20% Energy Savings
Key Benefits
The ABXLED Oi Series is engineered for demanding outdoor fixed installations where visual quality, durability, and operational efficiency are critical. With a 7680Hz ultra-high refresh rate, the display eliminates scan lines and flicker when captured by cameras – delivering high-dynamic-range visuals with exceptional clarity. The IP65 dustproof and waterproof rating ensures reliable operation in extreme weather conditions, while the three-layer conformal coating protects electronic components from dust and humidity. The 4-aerofoil-fan cooling system provides 6.6 m³/min ventilation – circulating air 25 times per minute inside each cabinet – ensuring immediate and efficient heat dissipation. The energy-saving design, with customized PCB and power supply, achieves average power consumption of less than 150W/m² – saving 20% energy. Available in pixel pitches P2.5–P10 with brightness up to 10,000 nits, the Oi Series delivers the engineering precision and long-term reliability that outdoor display professionals demand.
Main Features
- 7680Hz Ultra-High Refresh Rate: Eliminates scan lines and flicker – ideal for high-dynamic-range content and camera capture.
- IP65 Dustproof & Waterproof: Fully protected against dust and water – reliable in extreme weather.
- Three-Layer Conformal Coating: Protects driving IC and electronic components from dust and humidity – extends lifespan.
-

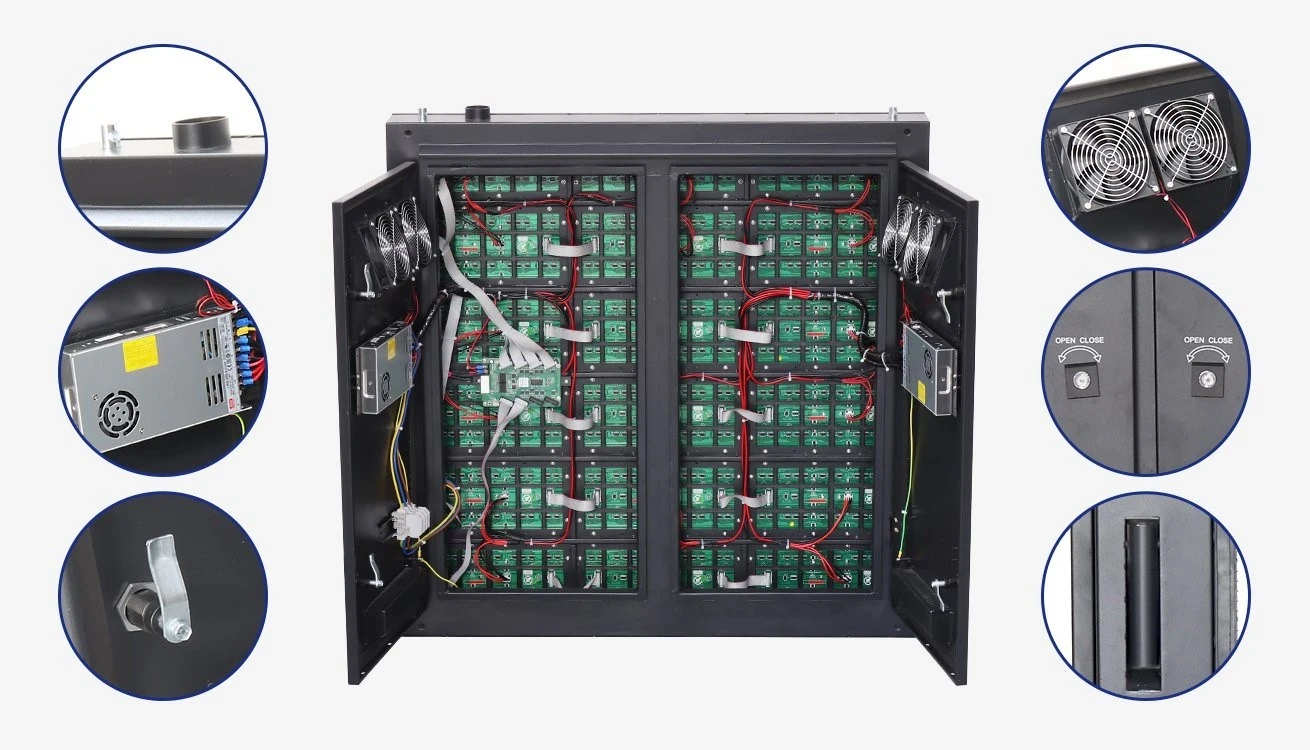

4-Fan High-Efficiency Cooling System: 6.6 m³/min ventilation, 25 air circulations/min – immediate cooling.
-
Energy-Saving Design: Customized PCB and power supply – average power <150W/m² – 20% energy savings.
-
High Brightness: Up to 10,000 nits – crystal-clear visibility under direct sunlight.
-
160° Wide Viewing Angle: Clear images from all directions – maximizes audience coverage.
-
Seamless Splicing: High-precision cabinets – gap-free video display.
-
Heat-Treated Iron Cabinet: High hardness, excellent wind and cold resistance.
-
All-Weather Durability: Anti-ultraviolet, corrosion-resistant, stable in any weather.
Technical Specifications
|
Parameter |
Specification |
|
Pixel Pitches |
P2.5, P3.076, P4, P6, P8, P10 |
|
Brightness |
5000–10,000 nits |
|
Refresh Rate |
3840Hz–7680Hz |
|
Viewing Angle |
160° × 160° |
|
Protection |
IP65 |
|
Power Consumption |
<150W/m² |
|
Energy Savings |
20% |
|
Cooling |
4 fans per cabinet |
|
Ventilation |
6.6 m³/min |
|
Material |
Heat-treated iron |
Application Scenarios
- Outdoor billboards and advertising
-
DOOH networks
-
Building facades
-

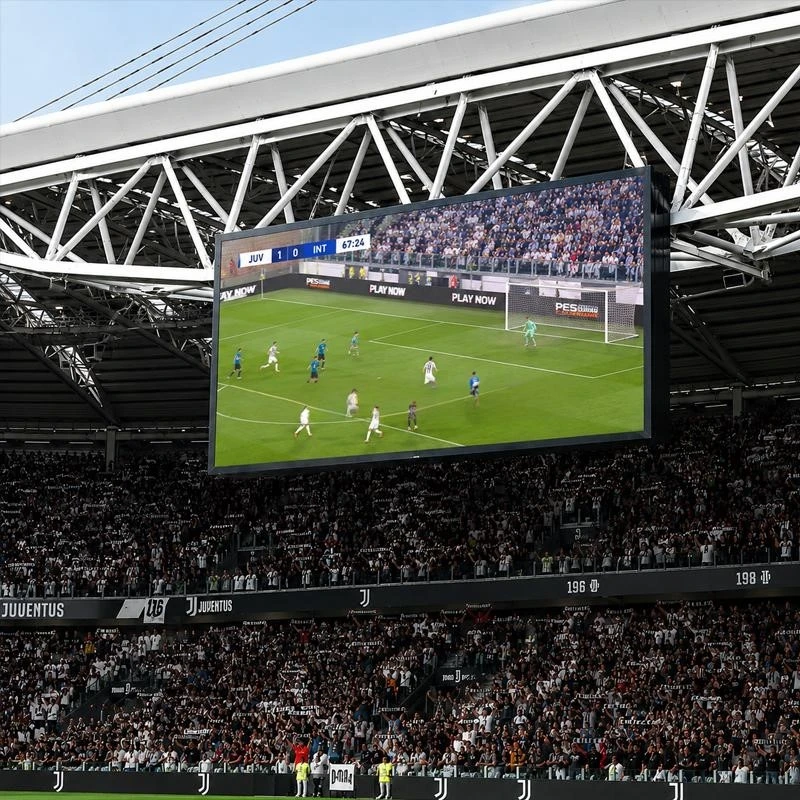

Sports stadiums
-
Public information displays
Optional Accessories & Custom Options

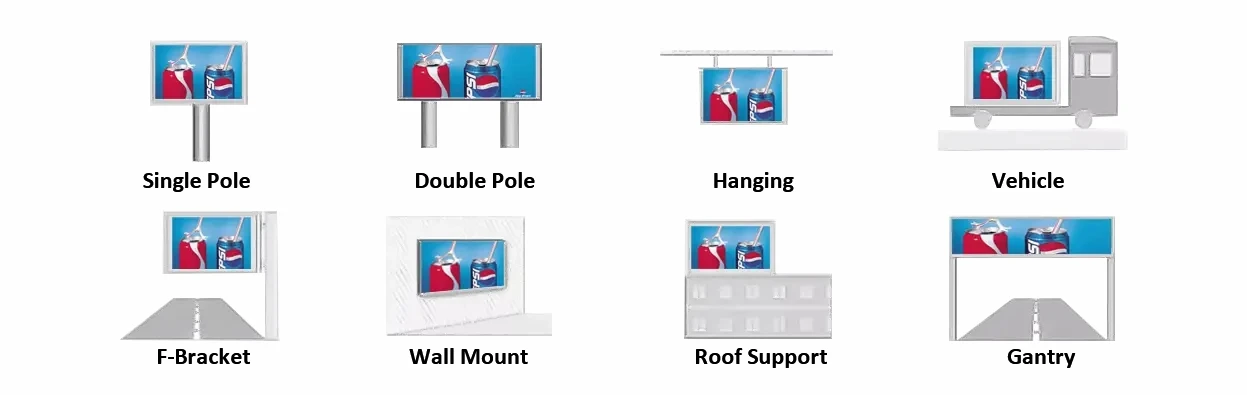

- Wall-mounting, hanging, and standing hardware
- Flight cases for secure transportation
-
Spare module kits and power supplies
-
Extended warranty and maintenance packages
Project Cases

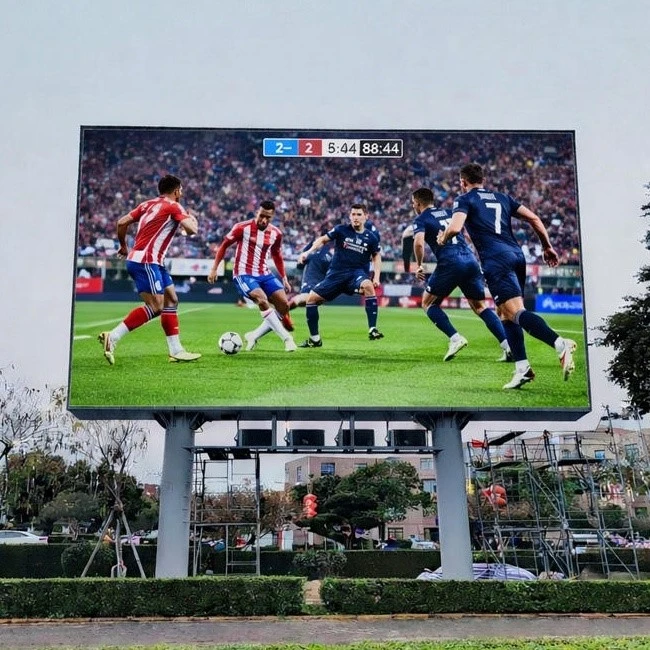

This is a large double‑pillar outdoor LED display installed in an urban public area, broadcasting a live football match. The screen shows players in action on the green pitch with a real‑time scoreboard displaying match status and timing, demonstrating the panel's excellent motion handling and high refresh rate. Supported by two sturdy columns, the display delivers sharp, vibrant visuals with accurate color reproduction even under overcast outdoor conditions. The large format ensures clear visibility from a distance, making it ideal for sports event screening, public viewing, and commercial advertising. This installation brings the excitement of live sports to outdoor public spaces, creating engaging communal viewing experiences for audiences.
FAQ
Q1: What is the maximum refresh rate?
7680Hz.
Q2: What is the protection rating?
IP65.
Q3: How much energy does it save?
20% compared to similar products.
Q4: How is cooling managed?
4-fan system with 6.6 m³/min ventilation.
