Shenzhen ABXLED Industrial Co., Ltd. is one of the leading manufacturers and suppliers of p2 led display in China. We are committed to providing high quality customized products with competitive price. If you're going to wholesale advanced p2 led display, welcome to get quotation from our factory.
ABXLED 640 Series Indoor Front Service LED Display – Ultra-Thin 45mm Cabinet, Full Front Maintenance, Multiple Sizes, and Pixel Pitches P1.25–P4 for Professional Indoor Visual Solutions
Key Benefits
The ABXLED 640 Series Indoor Front Service LED Display delivers professional-grade visual performance with exceptional practicality and installation flexibility. Featuring an ultra-thin 45mm die-cast aluminum cabinet and weighing only 3.6kg (640×480mm) to 5.8kg (640×640mm), this display is one of the lightest and most space-efficient solutions in its class – significantly reducing shipping costs, structural load requirements, and installation complexity. The full front maintenance design with magnetic adsorption modules enables tool-free module replacement in seconds, minimizing downtime and eliminating the need for rear access space. Available in pixel pitches P1.25, P1.53, P1.86, P2, P2.5, P3.076, and P4, with multiple cabinet sizes (640×480mm, 640×640mm, 960×480mm, 320×480mm, 320×640mm) and support for mixed installation, the 640 Series adapts seamlessly to any indoor environment – from boardrooms and retail spaces to control centers and exhibition halls.
Main Features
- Ultra-Thin & Lightweight Cabinet Design: 45mm thickness – 3.6kg (640×480mm) to 5.8kg (640×640mm) – die-cast aluminum construction for easy transport and installation.
- Full Front Maintenance: Magnetic adsorption module design – tool-free removal and replacement in seconds – no rear access required.
- Multiple Pixel Pitches: P1.25, P1.53, P1.86, P2, P2.5, P3.076, P4 – match resolution to viewing distance and application.
- Multiple Cabinet Sizes: 640×480mm, 640×640mm, 960×480mm, 320×480mm, 320×640mm – adapt to any space and aspect ratio.
-
Mixed Installation Support: Different cabinet sizes can be mixed and assembled within the same screen – maximum configuration flexibility.
-
Superb Display Effect: 3840Hz high refresh rate, high brightness, and high contrast ratio – vivid display effect and realistic color performance.
-
Seamless Splicing: High-precision CNC-machined die-cast aluminum cabinets – excellent flatness for gap-free, immersive visual experiences.
-
Simple Cable Connection: Cable holes on all four sides (left, right, top, bottom) – streamlined and organized cable wiring for a neat and efficient setup.
-
SMD & GOB Options: Standard SMD or GOB (Glue-on-Board) protection available – enhanced durability for demanding environments.
-
Versatile Installation Methods: Wall-mounted, hanging, or standing installation – adapts to any indoor venue.
Technical Specifications
|
Parameter |
Specification |
|
Series |
640 Series – Indoor Front Service LED Display |
|
Module Size |
320mm × 160mm |
|
Cabinet Thickness |
45mm – ultra-thin |
|
Cabinet Material |
Die-cast aluminum |
|
Cabinet Weights |
3.6kg (640×480mm), 5.8kg (640×640mm) |
|
Pixel Pitches |
P1.25, P1.53, P1.86, P2, P2.5, P3.076, P4 |
|
Refresh Rate |
3840Hz |
|
Brightness |
Indoor-optimized |
|
Contrast Ratio |
High – vivid display effect |
|
Maintenance |
Full front maintenance – magnetic modules |
|
Module Attachment |
Magnetic adsorption – tool-free removal |
|
Splicing |
Seamless – high-precision CNC cabinets |
|
Cable Connection |
Cable holes on all 4 sides |
|
Installation Methods |
Wall-mounted, hanging, standing |
|
Protection Options |
SMD, GOB available |
|
Applications |
Indoor – boardrooms, retail, control rooms, exhibitions, education |
Application Scenarios
- Boardrooms & Conference Rooms: High-resolution displays for presentations and video conferencing – P1.25–P1.86 recommended.
-
Retail Stores & Shopping Malls: Eye-catching product showcases and brand storytelling – P1.86–P2.5.
-
Control Rooms & Command Centers: Mission-critical data visualization – P1.25–P1.53.
-
Exhibitions & Trade Shows: Dynamic booth displays and interactive presentations – P1.86–P2.5.
-
Educational Institutions: Interactive learning and presentations – P1.86–P2.5.
-
Corporate Lobbies: Brand messaging and visitor engagement – P1.86–P2.5.
-
Broadcast Studios: Flicker-free studio backdrops – P1.25–P1.86.
Optional Accessories & Custom Options
- GOB protection upgrade for enhanced durability
- Wall-mounting brackets and hardware
- Hanging installation kits and rigging
-
Standing installation frames and stands
-
Custom cabinet sizes and configurations
-
Flight cases for secure transportation
-
Spare module kits and power supplies
-
Extended warranty and maintenance packages
Project Cases
| Project Overview | |
| Project Name |

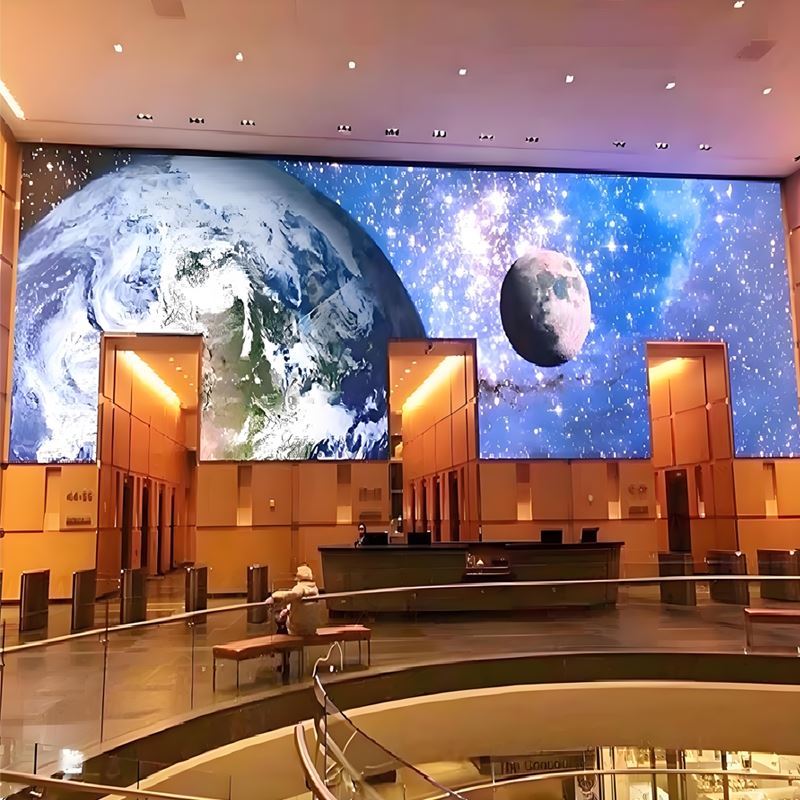

Comcast Experience |
| Location |
Comcast Center Lobby, Philadelphia, Pennsylvania, USA |
| Screen Size |
Approximately 165 ㎡ ultra‑wide indoor LED video wall |
| Project Positioning |
Public digital art display & corporate brand showcase, open free to the public and a popular local tourist spot. |
Project Background
As a major North‑American media and communications group, Comcast required a large‑format display solution for its headquarters lobby. The LED wall needed to integrate seamlessly with the existing building architecture, serving both internal staff and visiting members of the public. The screen layout accommodates pre‑built door openings on the wall, delivering unified continuous visuals across the whole wall surface.
Main Application Scenarios
Immersive Digital Art Show: Plays stunning visual content including space, planet earth, moon and galaxy scenes as shown in the photo. Custom seasonal clips are played on schedule for visitors.
Corporate Brand Promotion: Corporate video playback and live broadcast for key corporate events.
Urban Public Cultural Window: Tourists and citizens can enjoy the display within the public lobby area, making it a city icon of Philadelphia.
Large‑scale continuous visual effect: Custom LED layout avoids building door cutouts while maintaining seamless overall picture performance.
High‑definition fine image quality: Multi‑million‑pixel performance delivers sharp visuals for both near‑view and far‑view audience in the spacious lobby.
Reliable long‑hour operation: Optimized for prolonged cyclic public playback with stable heat dissipation and consistent color performance for indoor lobby environment.
Architecture‑content integration: Creative video content interacts with real wooden wall structures, achieving unique virtual‑and‑physical mixed visual effects.
Project Value
-
City level: Transforms office lobby into a public tourist attraction, empowering commercial buildings with public cultural functions.
-
Enterprise level: The giant digital wall demonstrates the company's strength in technology and art to all visitors.
-
Industry reference: Classic reference case for large lobby LED walls for office buildings, hotels and exhibition halls, especially for projects with existing doors and structural openings on target walls.
FAQ
Q1: What pixel pitch options are available?
P1.25, P1.53, P1.86, P2, P2.5, P3.076, P4 – choose based on viewing distance and resolution requirements.
Q2: What are the cabinet sizes and weights?
Available sizes: 640×480mm (3.6kg), 640×640mm (5.8kg), 960×480mm, 320×480mm, 320×640mm.
Q3: Can different cabinet sizes be mixed?
Yes. The 640 Series supports mixed installation – different cabinet sizes can be assembled within the same screen.
Q4: How is maintenance performed?
Full front maintenance with magnetic adsorption modules – tool-free removal and replacement in seconds, no rear access required.
Q5: What is the cabinet thickness?
Only 45mm – ultra-thin for space-saving installations.
Q6: What installation methods are supported?
Wall-mounted, hanging, and standing installation – adapts to any indoor venue.
Q7: What is GOB protection?
GOB (Glue-on-Board) provides a protective coating over LED modules – superior protection against moisture, dust, and impact.
Q8: What warranty do you offer?
We provide a standard 3-year warranty covering manufacturing defects, with extended options available.
