ABXLED Small Pitch LED Display – 4K/2K Resolution Calculator: How to Choose the Right Pixel Pitch for Your Indoor Video Wall
Key Benefits
The ABXLED Small Pitch LED Display offers professional 4K and 2K resolution capabilities with a range of pixel pitch options (P1.25–P2.5), allowing you to calculate the optimal configuration for your indoor space. For Ultra HD 4K (3840×2160) setups, we recommend P1.25 or P1.5 to keep the physical size within standard boardroom wall dimensions. The modular 320×160mm panels and 640×640mm cabinets enable precise aspect ratio matching – achieve standard 16:9, 2:1, or custom configurations with ease. With 7680Hz refresh rate, 160° viewing angle, and 14-bit processing, the ABXLED delivers crystal-clear, flicker-free visuals that enhance presentations, video conferencing, and digital signage. The ultra-thin 30mm design and 6.5kg panel weight simplify installation, while front maintenance ensures easy servicing. Whether you're designing a small classroom display or a large auditorium video wall, the ABXLED Small Pitch LED Display provides the resolution, flexibility, and visual quality you need.
Main Features
- 4K/2K Indoor Setup Calculator: Target configuration for Ultra HD 4K (3840×2160) – calculate physical dimensions for your high-resolution LED wall.
- Multiple Pixel Pitches: P1.25, P1.5, P1.6, P1.8, P2, P2.5 – match resolution to viewing distance and space constraints.
- Recommended for 4K: P1.25 or P1.5 recommended to keep physical size within standard boardroom wall dimensions.

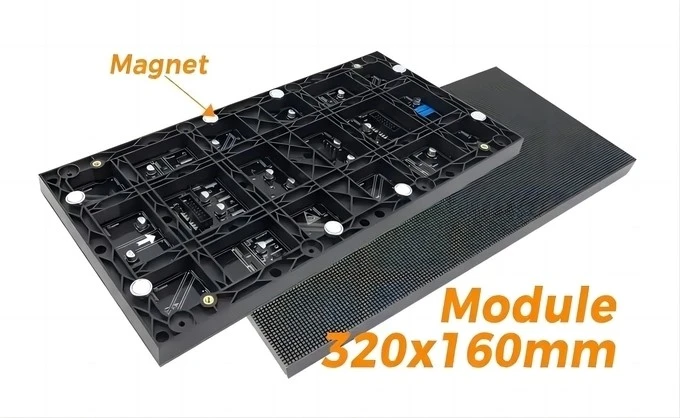

- Standardized Module & Panel Sizes: 320×160mm modules, 640×640mm panels – scalable for any display size.
- High-Definition Visual Performance: 7680Hz refresh rate, 160° viewing angle, 14-bit processing – lifelike, accurate color reproduction.
-
Ultra-Thin & Lightweight: 30mm cabinet, 6.5kg panel – easy transport and installation.
-
Front Maintenance: Tool-free module access – minimizes downtime.
-
Energy-Efficient: Common-cathode architecture – 30% lower power consumption.
-
100,000+ Hour Lifespan: Reliable long-term investment.
Technical Specifications
|
Parameter |
Specification |
|
Pixel Pitches |
P1.25, P1.5, P1.6, P1.8, P2, P2.5 |
|
Module Size |
320mm × 160mm |
|
Panel Size |

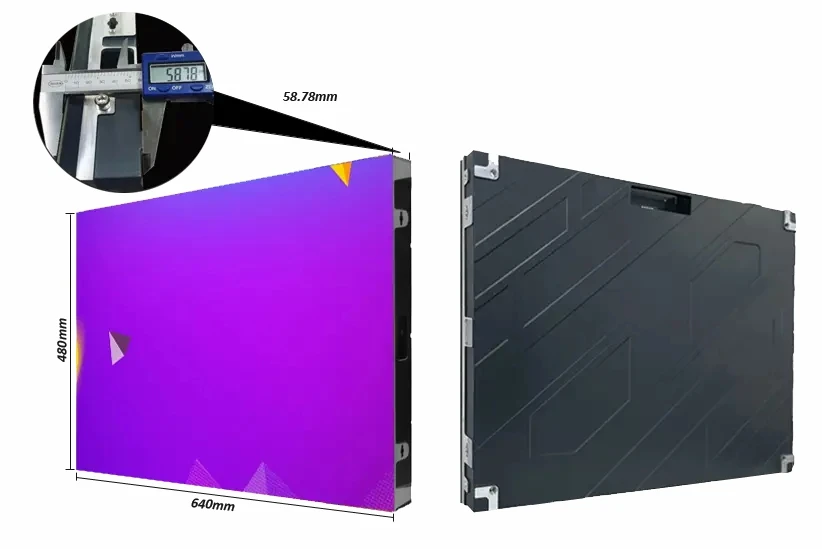

640mm* 640mm*30mm ,640mm*480mm *60mm |
|
Panel Weight |
6.5kg |
|
Refresh Rate |
7680Hz |
|
Viewing Angle |
160° × 160° |
|
Brightness |
600–800 nits |
|
Processing |
14-bit |
|
Lifespan |
100,000 hours |
4K/2K Configuration Guide
|
Target Resolution |
Recommended Pixel Pitch |
Approximate Panel Count |
|
4K (3840×2160) |
P1.25 or P1.5 |
6×4 panels (24 panels) |
|
2K (1920×1080) |
P1.8–P2.5 |
3×2 panels (6 panels) |
Application Scenarios
- Boardrooms & Executive Suites: 4K resolution P1.25 or P1.5 – immersive presentations and video conferencing.
-
Auditoriums & Lecture Halls: 2K resolution P1.8–P2.5 – clear visibility from all seats.
-

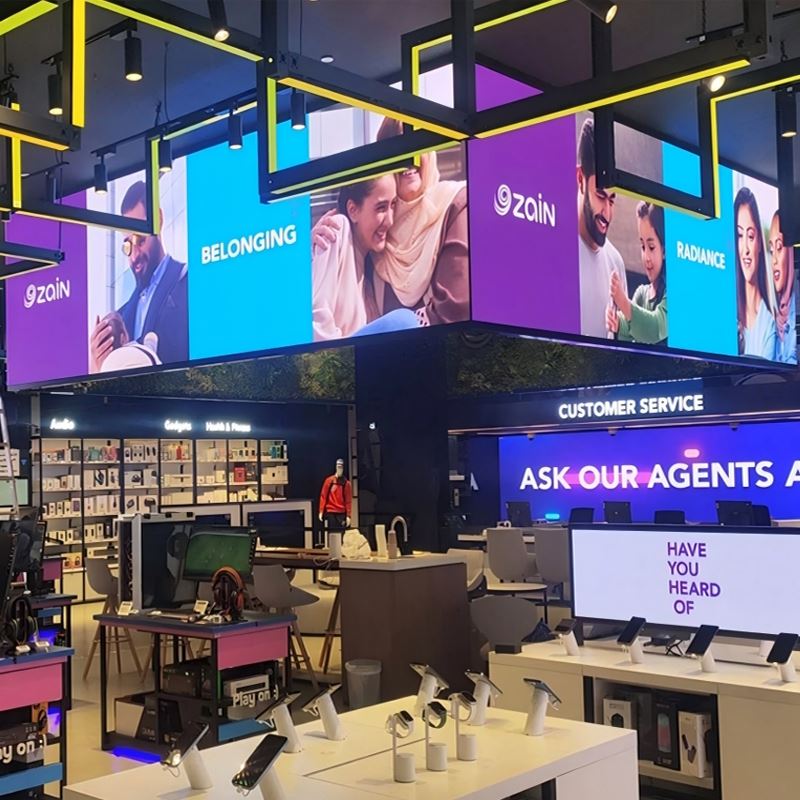

Retail Stores: 2K resolution P2–P2.5 – eye-catching product showcases.
-
Control Rooms: 4K resolution P1.25–P1.5 – mission-critical data visualization.
-
Broadcast Studios: 4K resolution P1.25–P1.8 – flicker-free studio backdrops.
Optional Accessories & Custom Options
- Custom cabinet sizes and configurations
- On-site calibration service
- Wall-mounting brackets and hardware
-
Flight cases for secure transportation
-
Spare module kits and power supplies
-
Extended warranty and maintenance packages
Project Cases
-

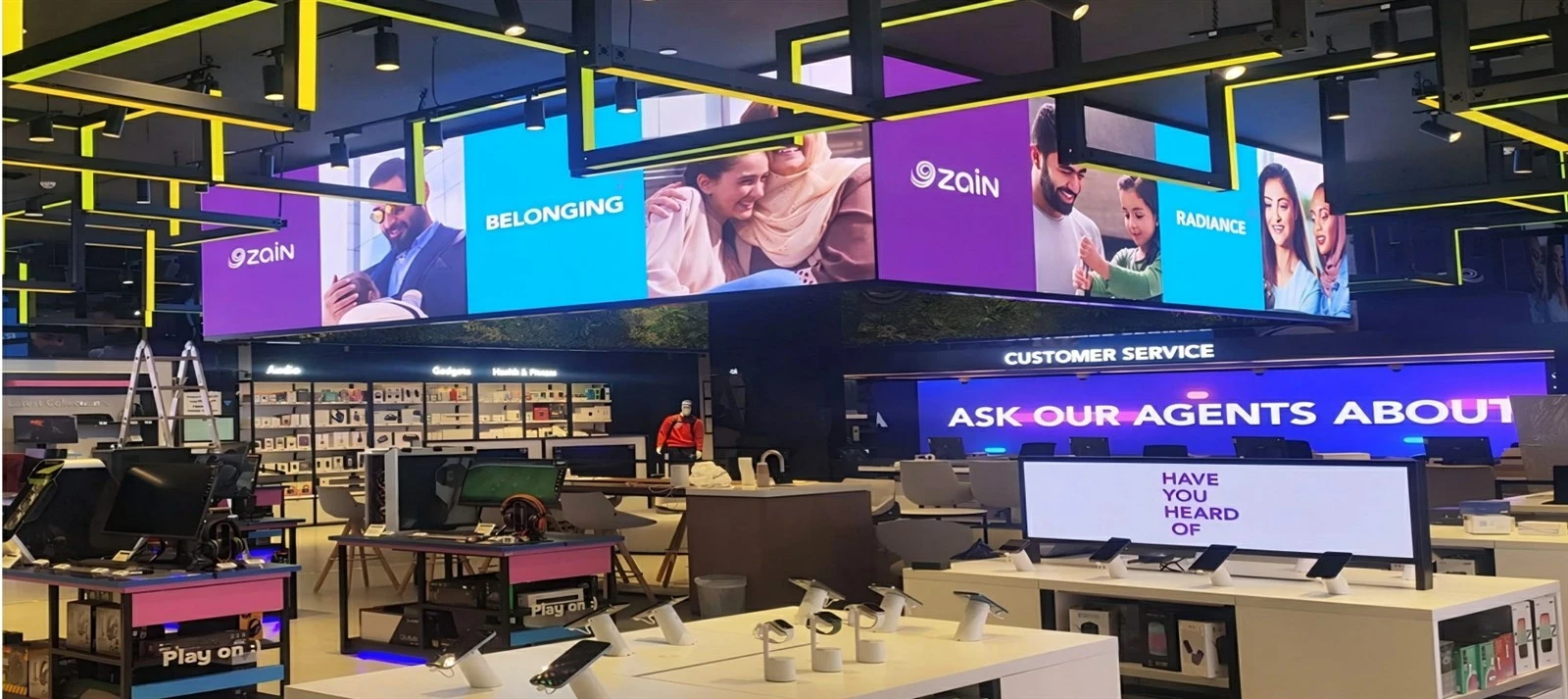

European Retail Flagship: 2K P2.5 LED wall – cost-effective solution for dynamic product displays.
FAQ
Q1: What pixel pitch is recommended for 4K resolution?
For 4K (3840×2160), we recommend P1.25 or P1.5 to keep the physical size within standard boardroom wall dimensions.
Q2: How do I calculate the number of panels needed?
Use our 4K/2K setup calculator – contact our team for a free CAD drawing and custom configuration.
Q3: What is the optimal viewing distance for each pixel pitch?
P1.25: 1.25–3 meters; P1.5: 1.5–4 meters; P1.8: 1.8–5 meters; P2–P2.5: 2–8 meters.
Q4: Can I mix different pixel pitches?
No. For consistent visual quality, use the same pixel pitch across the entire display.

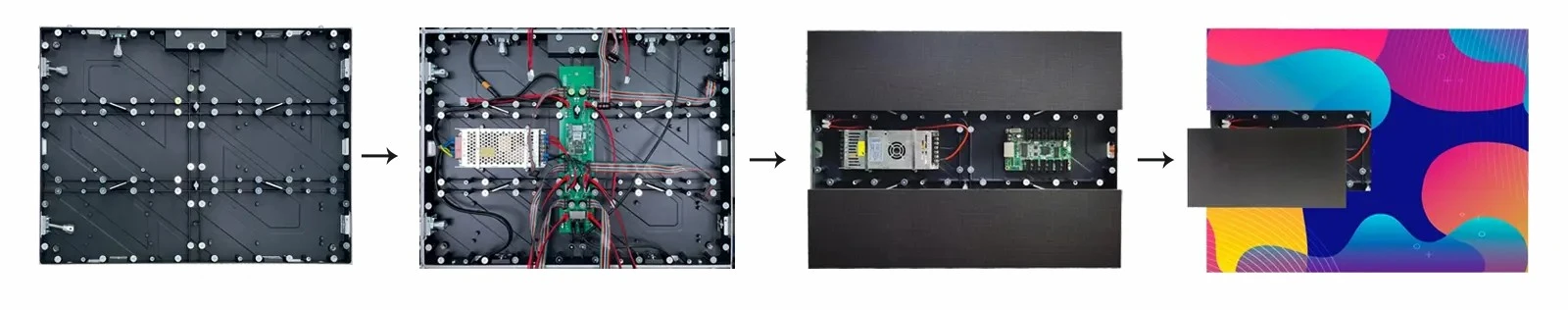

Product Reference Photo
