ABXLED Small Pitch LED Display – Ultra-Thin 30mm Cabinet, 6.5kg Panel, 7680Hz Refresh Rate, and P1.25–P2.5 Pixel Pitches for Premium Indoor Applications
Key Benefits
The ABXLED Small Pitch LED Display delivers professional-grade visual performance in an ultra-thin, lightweight package. With a 30mm cabinet depth and 6.5kg panel weight, this display is one of the most portable and space-efficient solutions in its class. Available in pixel pitches P1.25, P1.5, P1.6, P1.8, P2, and P2.5, it adapts seamlessly to diverse indoor scenarios – from boardrooms and classrooms to retail spaces and command centers. The 7680Hz refresh rate ensures flicker-free, smooth motion, while the 160° viewing angle provides consistent color accuracy from any position. The die-cast aluminum construction, front maintenance design, and 100,000+ hour lifespan guarantee long-term reliability and low maintenance costs. Certified to ETL, FCC, CE, EMC, and RoHS standards, the ABXLED Small Pitch LED Display is the trusted choice for businesses, educational institutions, and professional integrators worldwide.
Main Features
- Ultra-Thin & Lightweight Design: 30mm cabinet depth, 6.5kg panel weight – die-cast aluminum construction for easy transport and installation.
- Multiple Pixel Pitches: P1.25, P1.5, P1.6, P1.8, P2, P2.5 – match resolution to viewing distance and application.
- 7680Hz Ultra-High Refresh Rate: Eliminates flicker and motion blur – ideal for broadcast and camera capture.
- 160° Wide Viewing Angle: Consistent color accuracy and brightness from any position.
-
High-Definition Visual Performance: 14-bit processing, 600-800 nits brightness, 6500K color temperature – lifelike color reproduction.
-
Front Maintenance Design: Tool-free module access – simplifies service and reduces downtime.
-
Magnetic Module Alignment: Eliminates "Z-step" artifacts for perfectly flat displays.
-
Energy-Efficient Operation: Common-cathode architecture – 30% lower power consumption.
-
100,000+ Hour Lifespan: Reliable long-term investment.
-
Global Certifications: ETL, FCC, CE, EMC, RoHS – guaranteed safety and reliability.
-
15+ Years Manufacturing Experience: Trusted by 500+ clients worldwide.
Technical Specifications
|
Parameter |
P1.25 |
P1.5 |
P1.8 |
P2 |
P2.5 |
|
LED Type |
SMD1212 |
SMD1515 |
SMD1515 |
SMD1515 |
SMD2121 |
|
Pixel Density |
640,000/m² |
422,754/m² |
284,444/m² |
250,000/m² |
160,000/m² |
|

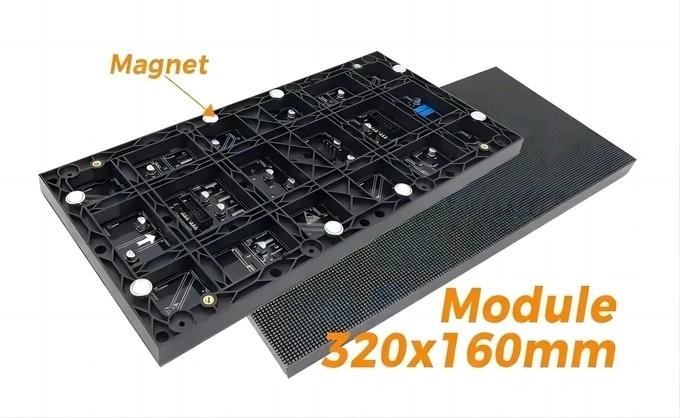

Module Size |
320×160mm |
||||
|
Panel Size |
640mm* 640mm*30mm ,640mm*480mm *60mm |
||||
|
Panel Weight |
6.5kg |
6.5kg |
6.5kg |
6.5kg |
6.5kg |
|
Refresh Rate |
3840-7680Hz |
||||
|
Viewing Angle |
160° |
||||
|
Brightness |
600-800 nits |
||||
|
Lifespan |
100,000 hrs |
||||
Application Scenarios
- Boardrooms & Conference Rooms: P1.25–P1.8 – ultra-fine detail for presentations and video conferencing.
-
Auditoriums & Lecture Halls: P1.8–P2.5 – clear visibility from all seats.
-
Retail Stores & Shopping Malls: P1.8–P2.5 – eye-catching product displays.
-
Classrooms & Educational Institutions: P1.8–P2.5 – interactive learning and presentations.
-
Command Centers & Control Rooms: P1.25–P1.5 – mission-critical data visualization.
-
Corporate Lobbies: P1.8–P2.5 – brand messaging and visitor engagement.
Optional Accessories & Custom Options
- ODM and OEM customization services
- Custom cabinet sizes and configurations
- On-site calibration service
-
Wall-mounting brackets and hardware
-
Flight cases for secure transportation
-
Spare module kits and power supplies
-
Extended warranty and maintenance packages
Project Cases
-
High-definition LED screens at European airports: P1.8 large-format display – 160° viewing angle ensured clarity for all students.
FAQ
Q1: What are the available pixel pitches?
P1.25, P1.5, P1.8, P2, P2.5 – choose based on viewing distance and resolution requirements.
Q2: How thin and light is the cabinet?
30mm cabinet depth and 6.5kg panel weight – one of the most portable solutions in its class.
Q3: What is the refresh rate?
7680Hz ultra-high refresh rate – eliminates flicker and motion blur.
Q4: How is maintenance performed?
Front maintenance design – magnetic modules allow tool-free removal and replacement from the front.
Q5: What certifications does the display have?
ETL, FCC, CE, EMC, RoHS – guaranteed safety and reliability for global markets.
Product Reference Photo
Product Reference Video
