Shenzhen ABXLED Industrial Co., Ltd. is one of the leading manufacturers and suppliers of p3 led display in China. We are committed to providing high quality customized products with competitive price. If you're going to wholesale advanced p3 led display, welcome to get quotation from our factory.
ABXLED Small Pitch LED Display – Ultra-Thin Lightweight Design, 7680Hz Refresh Rate, and Pixel Pitches P1.25–P2.5 for Premium Indoor Visual Solutions
Key Benefits
The ABXLED Small Pitch LED Display combines ultra-thin, lightweight cabinet design with professional-grade visual performance, making it the ideal choice for boardrooms, auditoriums, retail spaces, classrooms, and command centers. With pixel pitch options ranging from P1.25 to P2.5, this display delivers crisp, high-definition images optimized for close-up indoor viewing. The die-cast aluminum cabinet weighs only 6.5kg per panel with a slim 30mm profile – reducing structural load and simplifying installation. The 7680Hz ultra-high refresh rate eliminates flicker and motion blur, while the 160° wide viewing angle ensures consistent color accuracy from any position. Energy-efficient common-cathode architecture reduces power consumption by 30%, lowering operational costs and extending the display's 100,000+ hour lifespan. With front maintenance, magnetic module alignment, and comprehensive certifications (ETL, FCC, CE, EMC, RoHS), the ABXLED Small Pitch LED Display delivers exceptional value for businesses and institutions seeking impactful indoor visual solutions.
Main Features
- Ultra-Thin & Lightweight Design: 30mm cabinet depth, 6.5kg per panel – die-cast aluminum construction for easy transport and installation.
- Multiple Pixel Pitch Options: P1.25, P1.5, P1.6, P1.8, P2, P2.5 – match resolution to viewing distance and application.
- 7680Hz Ultra-High Refresh Rate: Eliminates flicker and motion blur – ideal for broadcast and camera capture.
- 160° Wide Viewing Angle: Consistent color accuracy and brightness from any position – ensures all audiences enjoy premium viewing.

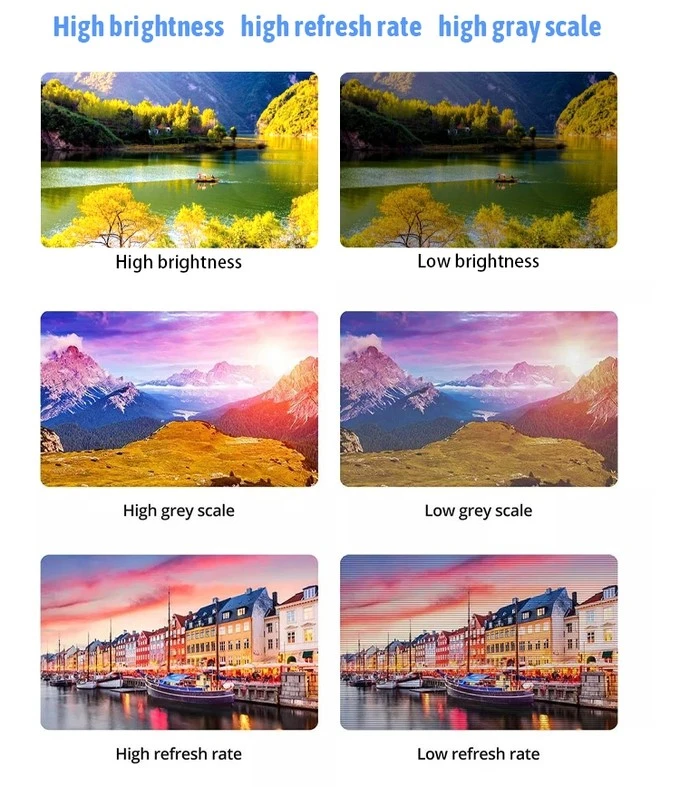

- High-Definition Visual Performance: 14-bit processing, 600-800 nits brightness, 6500K color temperature – lifelike, accurate color reproduction.
-
Energy-Efficient Operation: Common-cathode architecture reduces power consumption by 30% – lower operational costs.
-

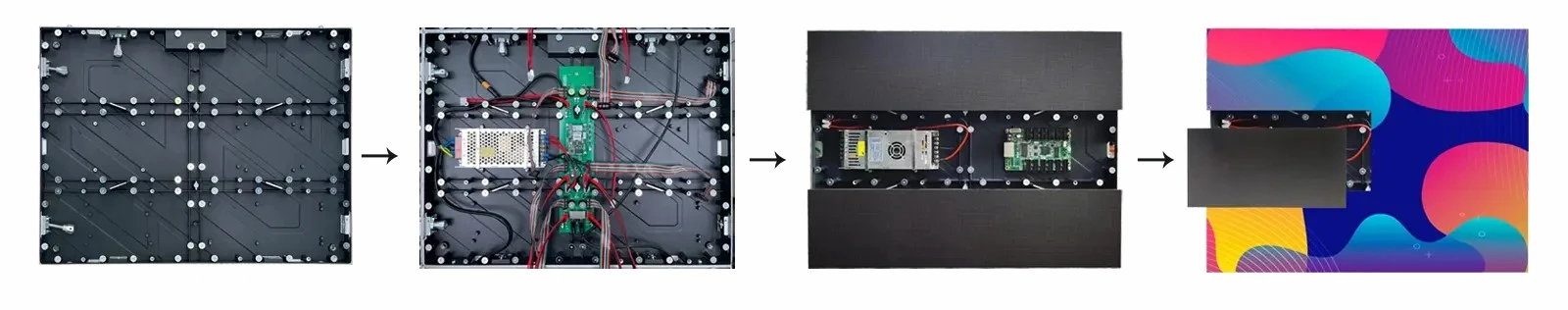

Front Maintenance Design: Tool-free module access from the front – simplifies service and reduces downtime.
-

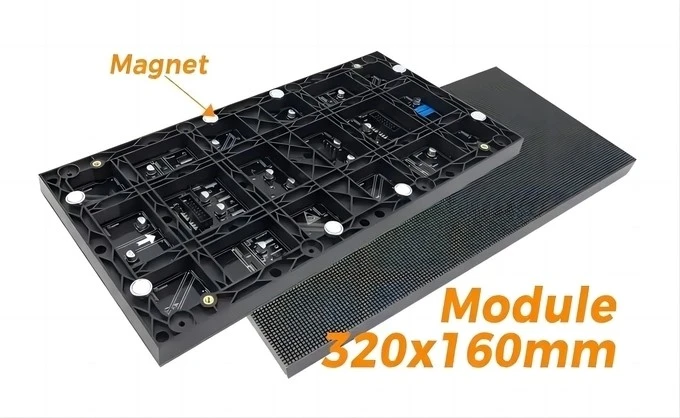

Magnetic Module Alignment: High-strength neodymium magnets with floating connectors – eliminates "Z-step" artifacts for perfectly flat displays.
-
Comprehensive Certifications: ETL, FCC, CE, EMC, RoHS – guaranteed safety and reliability.
-
Long Lifespan: 100,000+ hours – a reliable long-term investment.
Technical Specifications
|
Parameter |
Specification |
|
Pixel Pitches |
P1.25, P1.5, P1.6, P1.8, P2, P2.5 |
|
LED Type |
SMD1212 (P1.25), SMD1515 (P1.5–P2), SMD2121 (P2.5) |
|
Pixel Density |
640,000/m² (P1.25) – 160,000/m² (P2.5) |
|
Module Size |
320mm × 160mm |
|
Panel Size |

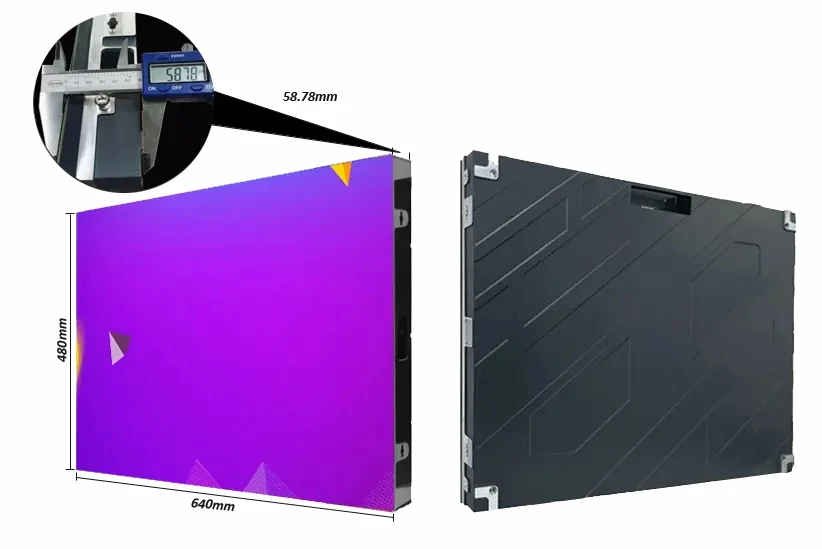

640mm* 640mm*30mm ,640mm*480mm *60mm |
|
Panel Weight |
6.5kg |
|
Cabinet Material |
Die-cast aluminum |
|
Maintenance |
Front maintenance |
|
IP Rating |
IP21 |
|
Brightness |
600–800 nits (after calibration) |
|
Refresh Rate |
7680Hz |
|
Viewing Angle |
160° (H) × 160° (V) |
|
Color Temperature |
6500K ± 500K |
|
Processing |
14-bit |
|
Average Power |
220W/m² |
|
Max Power |
550W/m² |
|
Lifespan |
100,000 hours |
|
Certifications |
ETL, FCC, CE, EMC, RoHS |
Application Scenarios
- Boardrooms & Conference Rooms: High-resolution displays for presentations and video conferencing – P1.25–P1.8 recommended.

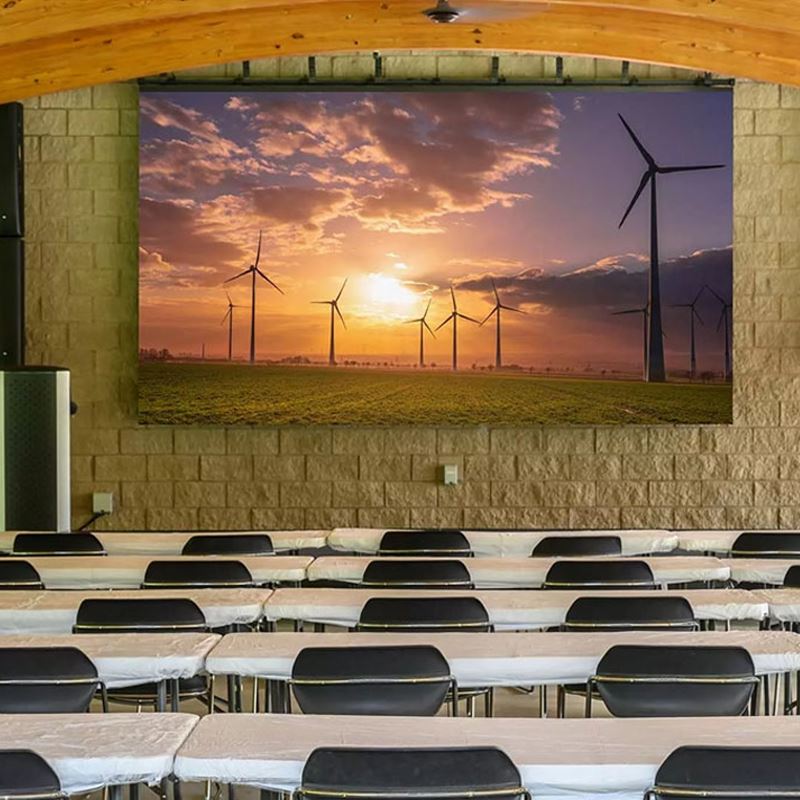

- Auditoriums & Lecture Halls: Large-format displays for clear visibility from all seats – P1.8–P2.5.
-

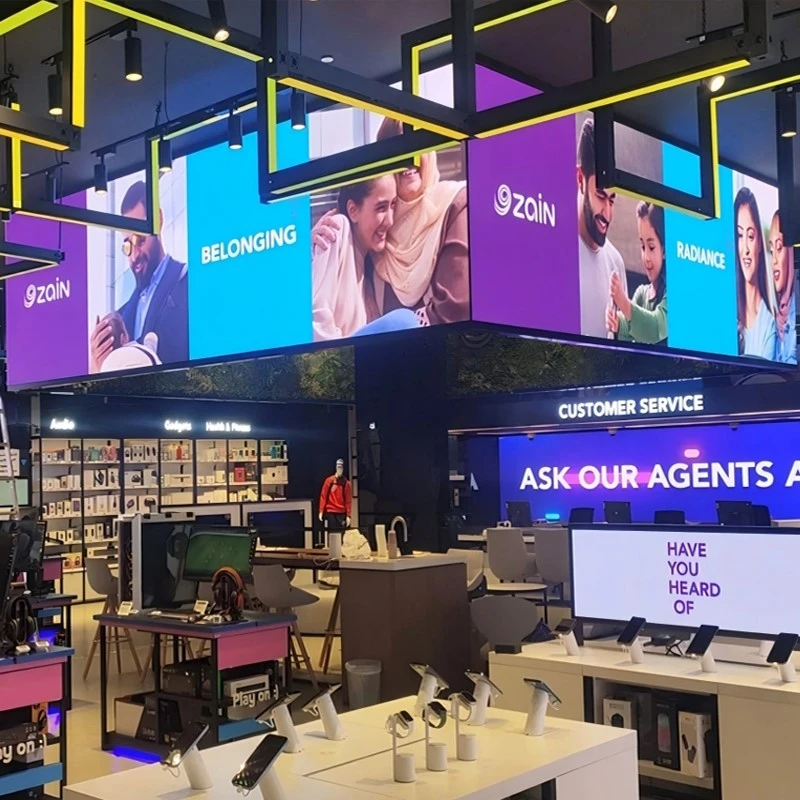

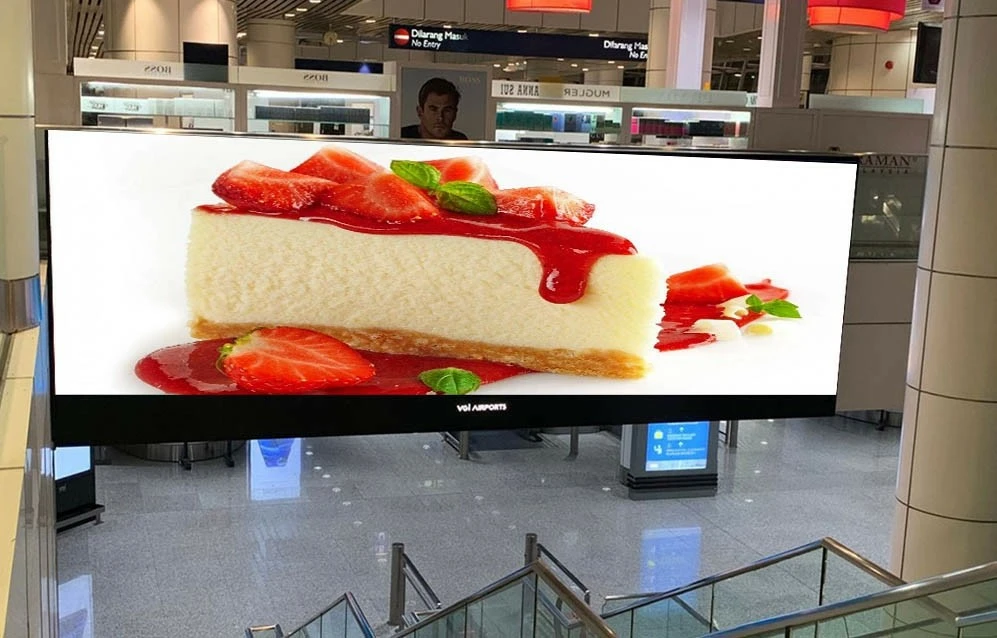

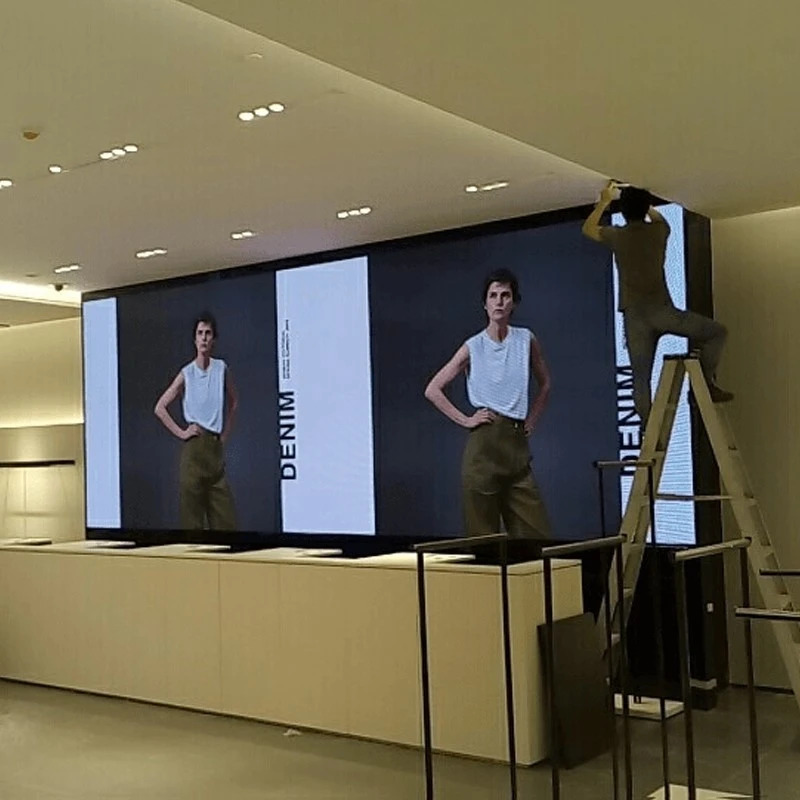

Retail Stores & Shopping Malls: Eye-catching product showcases and brand storytelling – P1.8–P2.5.
-
Classrooms & Educational Institutions: Interactive learning and presentations – P1.8–P2.5.
-
Command Centers & Control Rooms: Mission-critical data visualization – P1.25–P1.5.
-
Corporate Lobbies: Brand messaging and visitor engagement – P1.8–P2.5.
-
Broadcast Studios: Dynamic backdrops with flicker-free performance – P1.25–P1.8.
Optional Accessories & Custom Options
- Custom cabinet sizes and configurations
- 1+1 redundant power supply for mission-critical applications
- Wall-mounting brackets and hardware
- Flight cases for secure transportation
-
Spare module kits and power supplies
-
On-site camera-based calibration service
-
Extended warranty and maintenance packages
-
ODM/OEM customization services
Project Cases
-
Fortune 500 Corporate Boardroom (USA): 4K resolution P1.25 fine-pitch LED wall – ultra-thin 60mm design enabled seamless integration into executive meeting space.
FAQ
Q1: What pixel pitch should I choose for my application?
For close viewing (1-3 meters): P1.25 or P1.5. For medium distances (2-5 meters): P1.6–P1.8. For larger venues (3-8 meters): P2–P2.5.
Q2: What is the cabinet thickness and weight?
The panel is only 30mm thick and weighs 6.5kg – ultra-thin and lightweight for easy installation.
Q3: How is maintenance performed?
Front maintenance design – magnetic modules allow tool-free removal and replacement from the front, reducing downtime.
Q4: Is the display energy-efficient?
Yes. The common-cathode architecture reduces power consumption by 30% compared to conventional designs.
Q5: What certifications does the display have?
ETL, FCC, CE, EMC, RoHS – guaranteed safety and reliability for global markets.
Q6: Can the display be customized?
Yes. ABXLED offers ODM and OEM production services – customize size, configuration, and branding to meet your specific needs.
Product Reference Photo
Product Reference Video
