ABXLED RD Series – Engineering Excellence in Rental LED Displays: 500×500mm Cabinets, 3840Hz Refresh, and Modular Service Design
Key Benefits
The RD Series delivers engineering precision that translates into operational advantages: faster installations through quick‑lock tool‑free assembly, reduced downtime via front/rear service access, and extended product lifespan thanks to robust corner protection and durable materials. Optional curve and corner capabilities expand your creative toolkit without compromising structural integrity.
Main Features

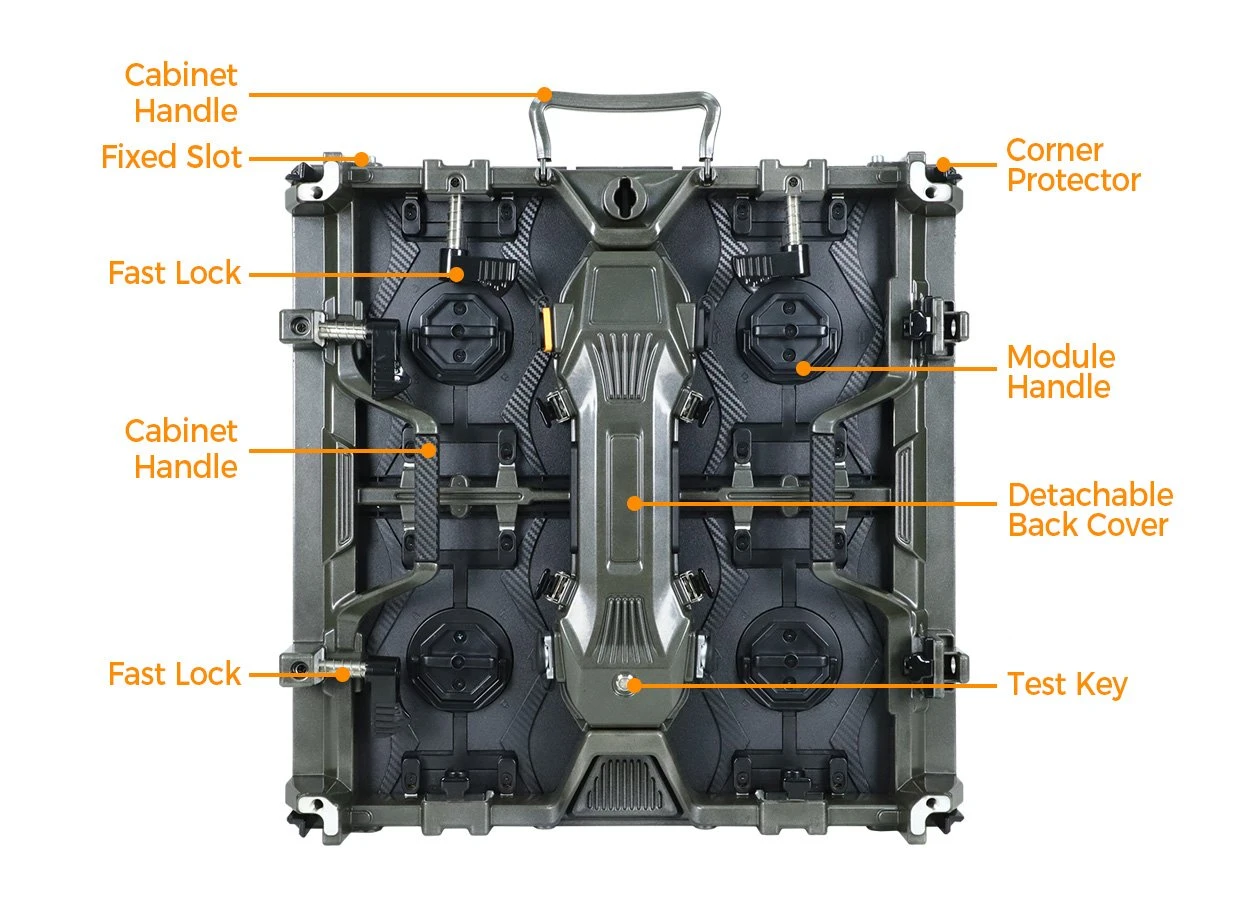

- Modular Cabinet Architecture: 500×500mm standardized size enables interchangeable panels and simplified inventory management.

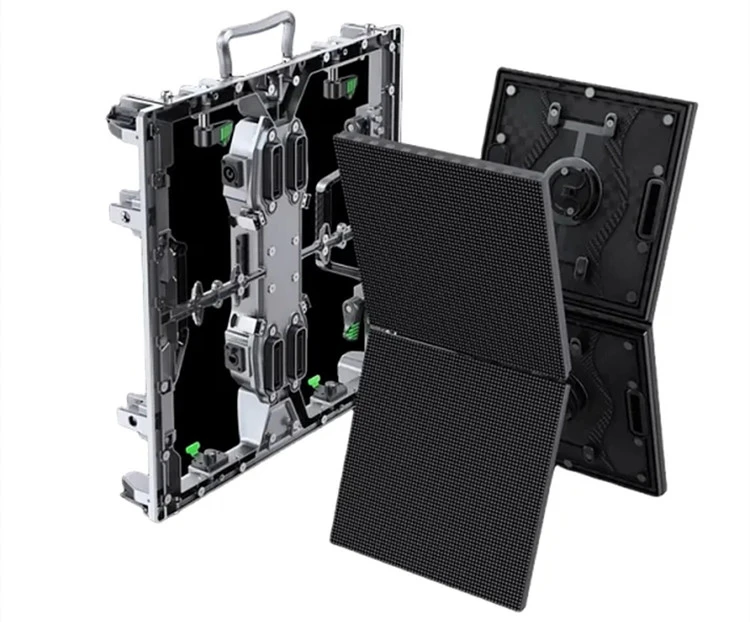

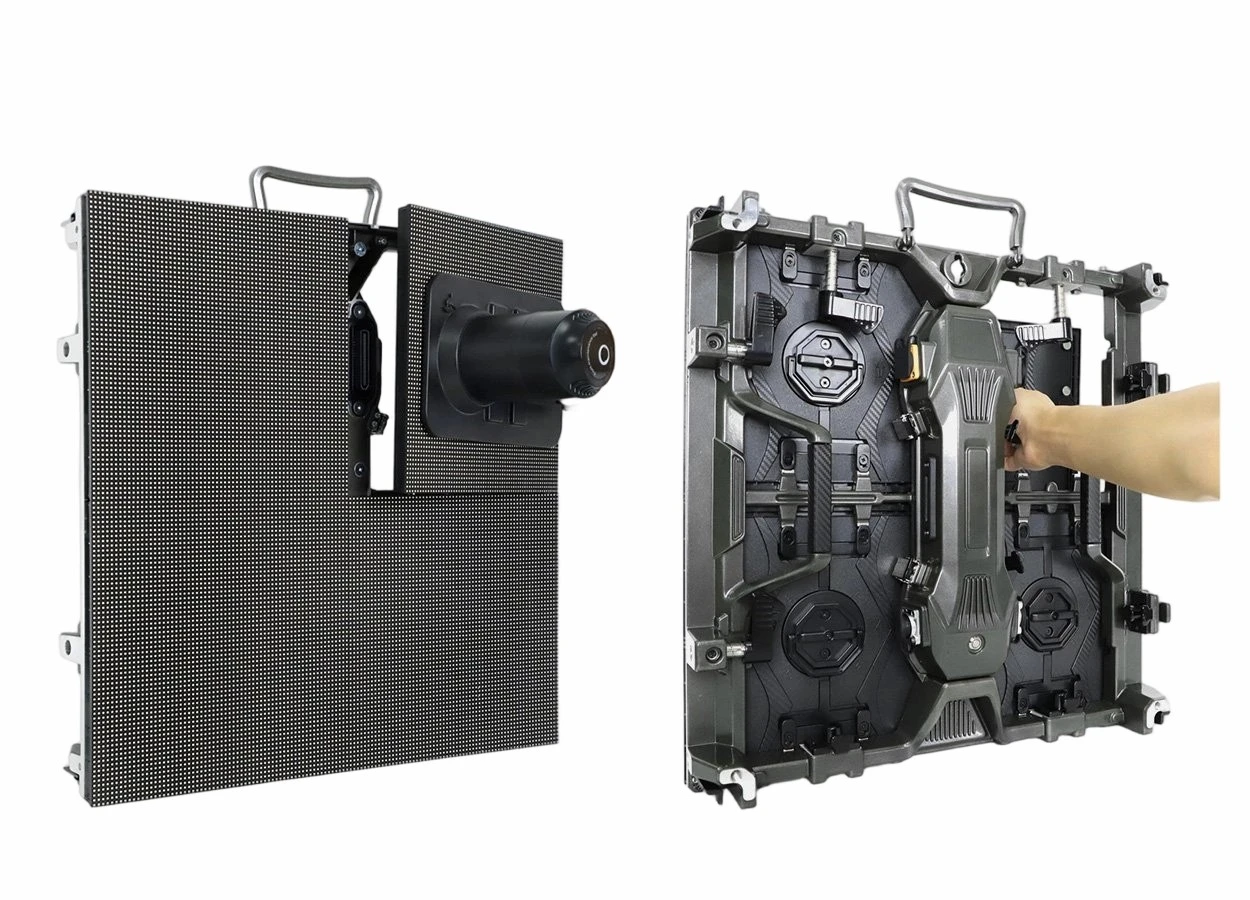

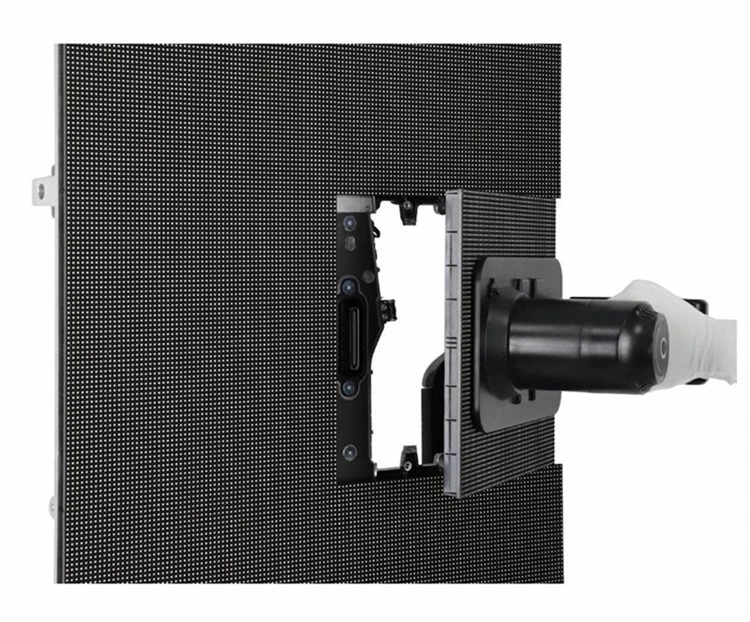

- Magnetic Adsorption Panel: Allows front module removal with a suction tool – no screws, no tools.

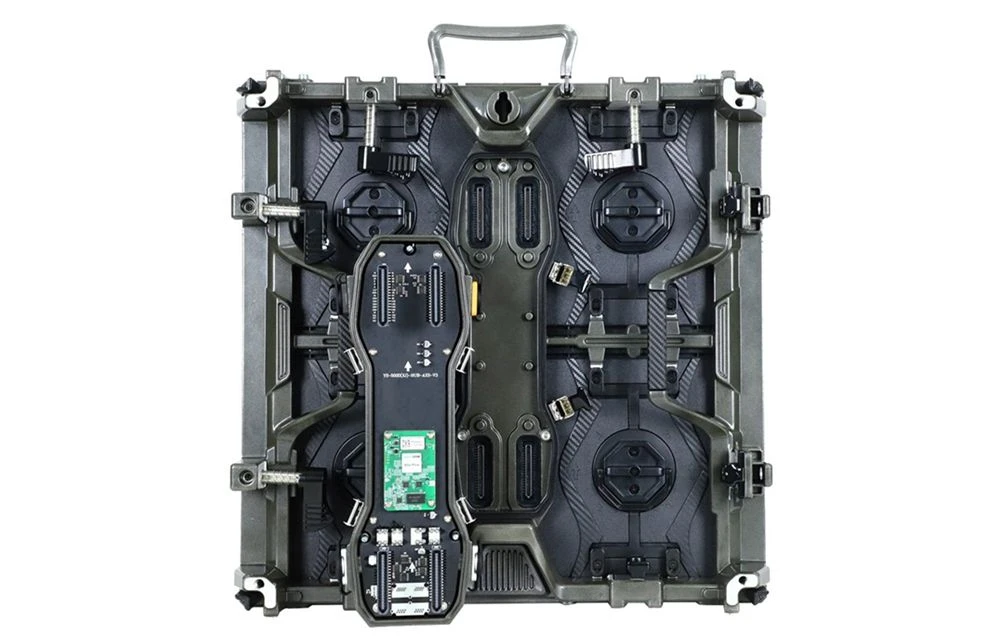

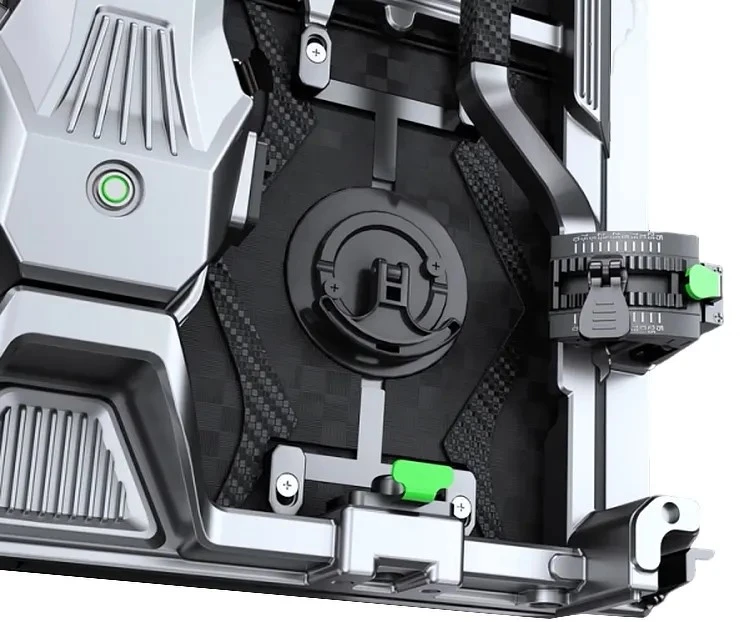

- Detachable Power Box: Hard connection design with quick‑install buckle enables rear power unit replacement in seconds.
- High‑Precision Arc Locks (Optional): Supports curved configurations from ‑15° to +15° with smooth, gap‑free transitions.

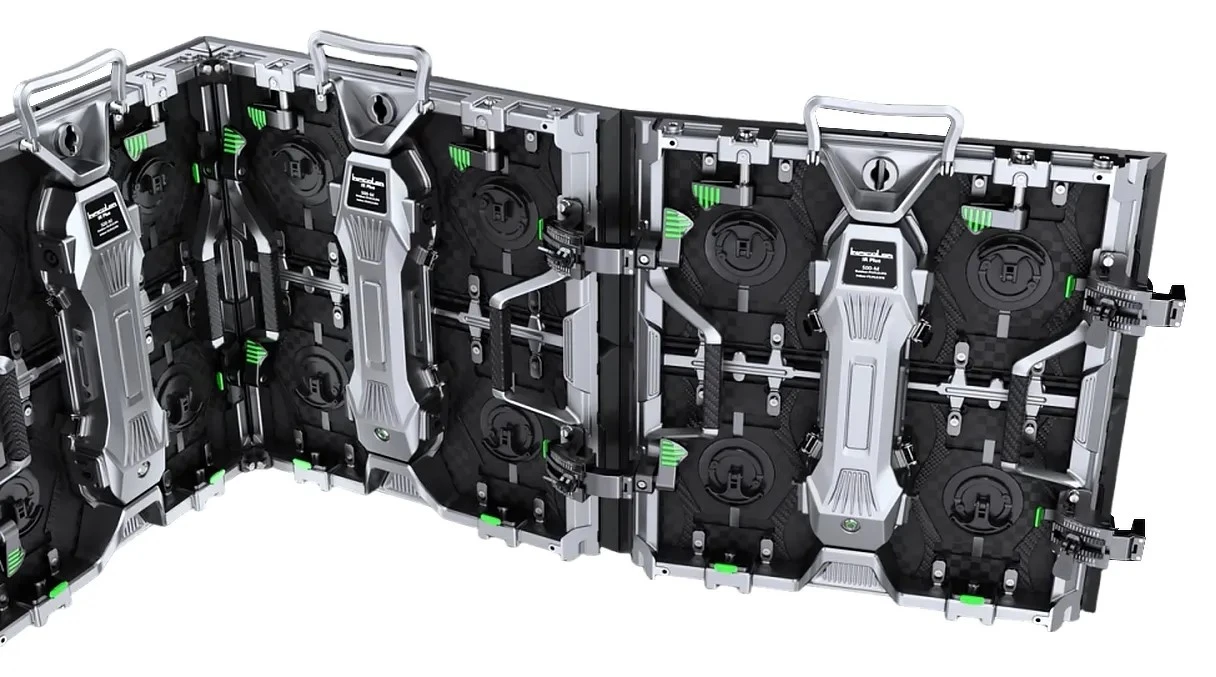

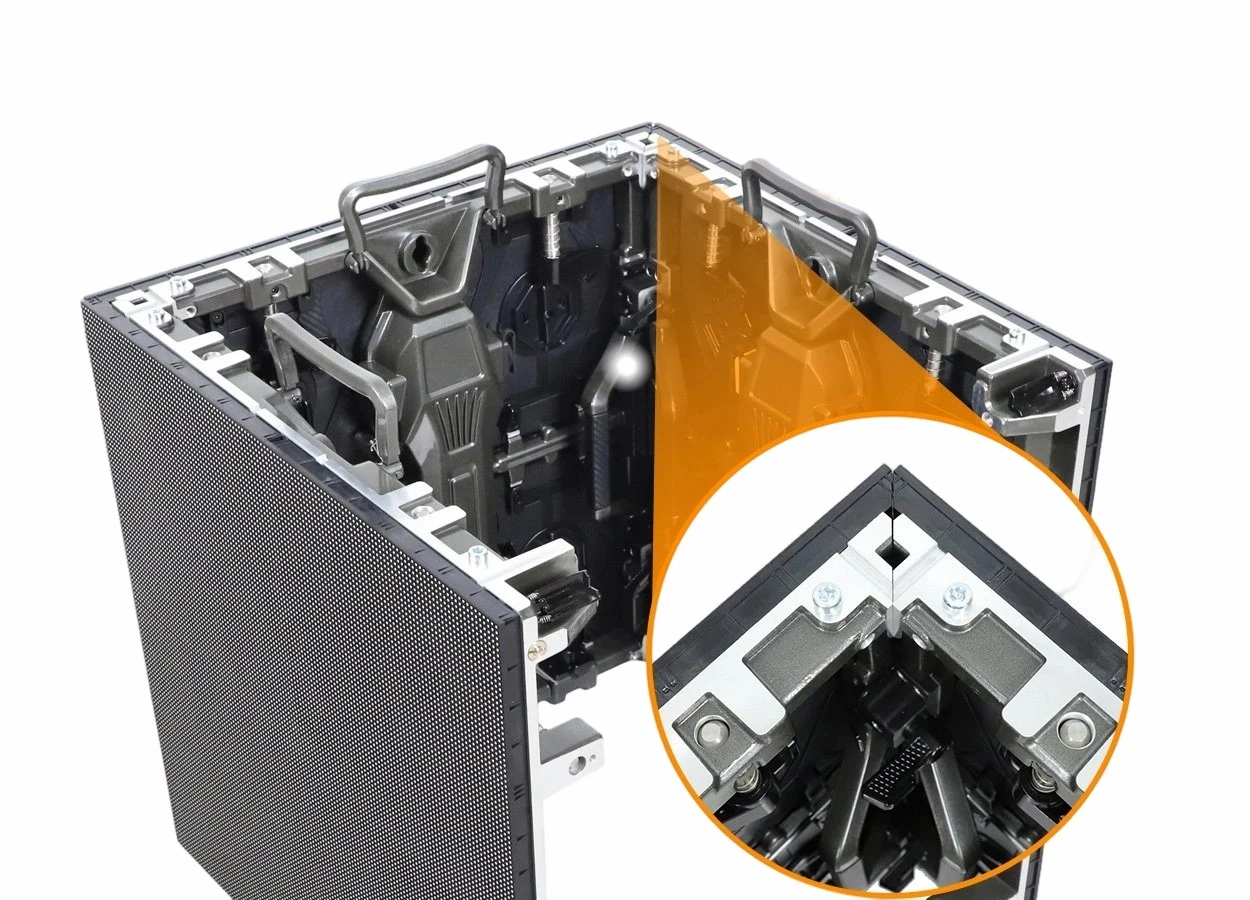

- 45° Beveled Edge Cabinet (Optional): Enables 90° right‑angle corner installations for immersive stage designs.
-
3840Hz Refresh Rate: Eliminates motion blur and flicker, critical for high‑speed camera capture and broadcast applications.
Technical Specifications
|
Parameter |
Value |
|
Cabinet Dimensions |
500 × 500 × 64 mm |
|
Pixel Pitch |
P2.6 / P2.9 / P3.9 / P4.8 |
|
Refresh Rate |
3840 Hz |
|
Grayscale |
16-bit |
|
Brightness |
1000–4500 cd/m² |
|
Viewing Angle |
140° H / 140° V |
|
Service Access |
Front (magnetic) + Rear (detachable box) |
|
Weight |
7.8 kg |
|
IP Rating |
IP20 (indoor) / IP65 (outdoor optional) |
|
Curve Range |
-15° to +15° (with arc locks) |
|
Corner Option |
90° using 45° beveled cabinets |
Application Scenarios

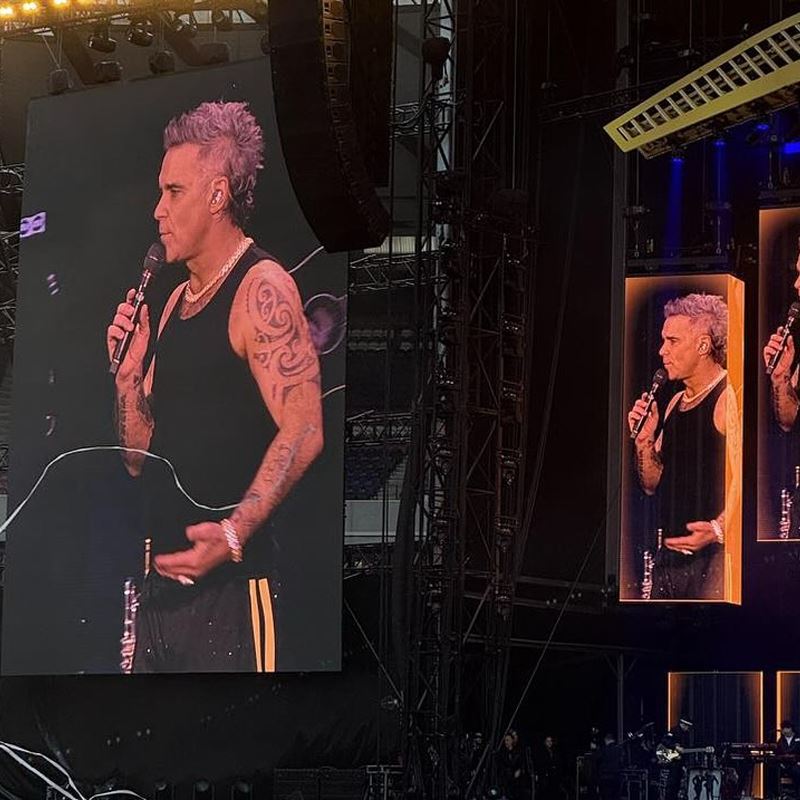

- Large‑scale concert tours
-
Broadcast and virtual production studios
-
Corporate headquarters and event spaces
-
Outdoor festivals and sports stadiums
-
Exhibition and trade show pavilions
Optional Accessories
- Curved arc lock kit (‑15° to +15°)
- 45° beveled corner cabinet set
- IP65 weatherproof upgrade
- Heavy‑duty flight cases with foam padding
-
Spare module and power supply kits
Project Cases
- North American Concert Tour: 300㎡ curved RD Series wall deployed across 15 cities, zero technical failures.
-
Asian Broadcast Studio: 100㎡ flat wall with 90° corners used for daily live news production.
FAQ
Q1: What is the maximum stacking height?
Up to 12 cabinets stacked safely; 20 cabinets can be hung.
Q2: Can I mix curved and flat cabinets?
Yes, the system supports seamless integration of both.
Q3: How is calibration managed?
Each module stores its own calibration data, so replacements require no reconfiguration.
Product Reference Photo
Product Reference Video
