Shenzhen ABXLED Industrial Co., Ltd. is one of the leading manufacturers and suppliers of video wall outdoor in China. We are committed to providing high quality customized products with competitive price. If you're going to wholesale advanced video wall outdoor, welcome to get quotation from our factory.

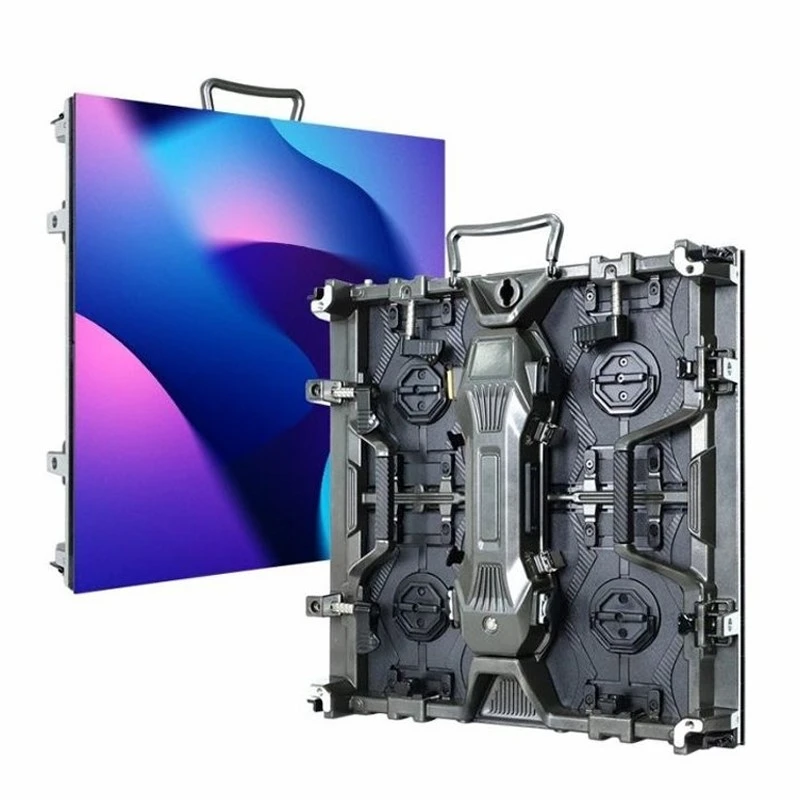

ABXLED RD Series – From Concerts to Conferences: The Versatile Rental LED Display for Every Event Type
Key Benefits
The RD Series adapts to any event environment – indoor conferences, outdoor festivals, broadcast studios, and exhibition halls. Its quick‑assembly design and flexible configuration options (curved, corner, flat) mean one display system can serve multiple client needs, maximising your rental fleet utilisation and revenue potential.
Main Features
- Tool‑Free Quick Locks: Install and dismantle faster than traditional screw‑based systems.

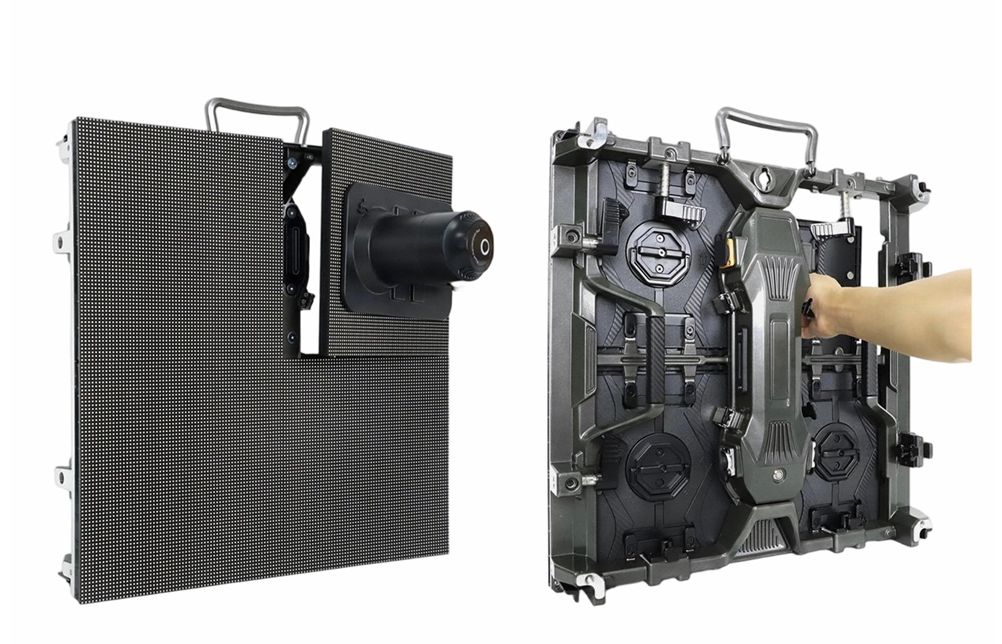

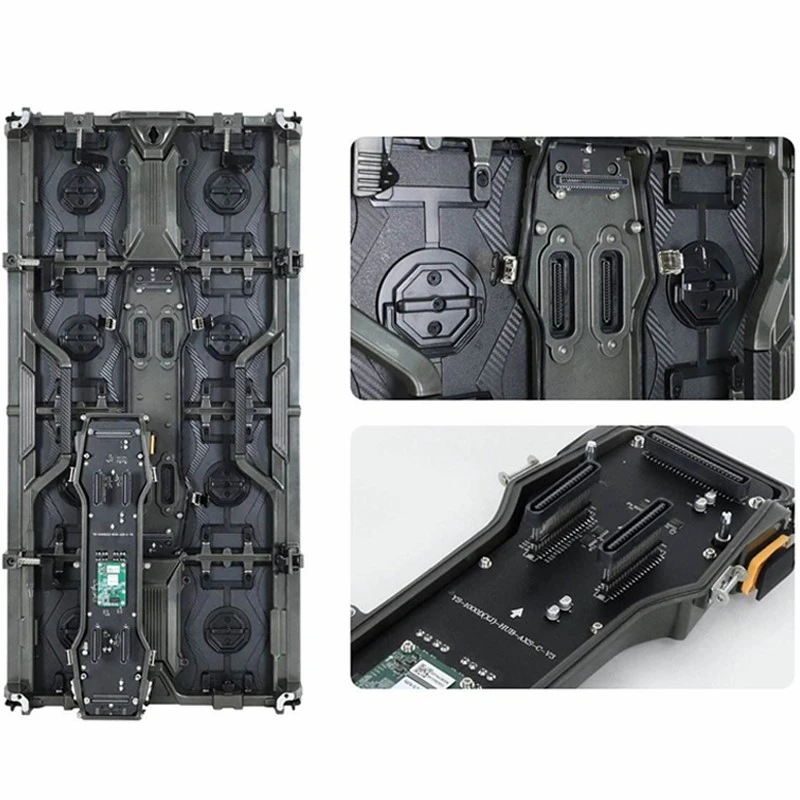

- Dual‑Access Service: Front magnetic panel removal and rear detachable power box keep maintenance simple.
- Curved & Corner Options: Optional arc locks and 45° beveled cabinets enable creative stage designs.
- 3840Hz Refresh & High Brightness: Broadcast‑ready visuals suitable for camera capture and bright environments.
- 140° Wide Viewing Angle: Ensures every audience member gets a clear, colour‑accurate view.
Technical Specifications
|
Specification |
Detail |
|
Cabinet Size |
500 × 500 mm |
|
Pixel Pitches |
P2.6, P2.9, P3.9, P4.8(outdoor) |
|
Refresh Rate |
3840 Hz |
|
Viewing Angle |
140°/140° |
|
Brightness Range |
1000–4500 cd/m² |
|
Maintenance |
Front + Rear |
|
Curve Support |
-15° to +15° (optional) |
|
Corner Support |
90° (optional) |
|
Weight |
~7.5 kg |
Application Scenarios

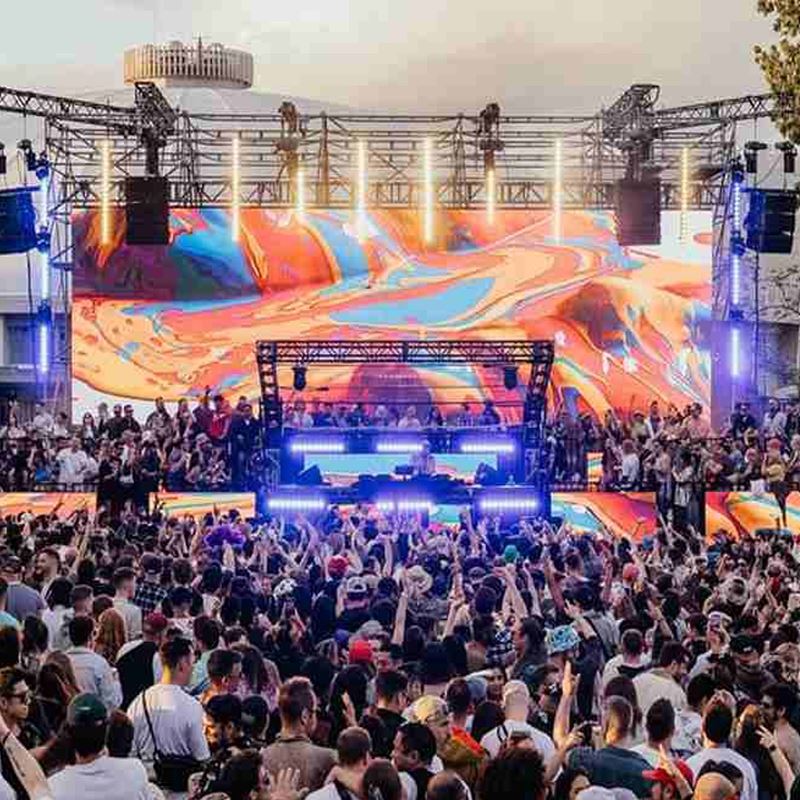

- Music Festivals: Large‑scale curved backdrops that wrap around the stage.
-
Corporate Conferences: Sharp, professional video walls for keynotes and product demos.
-
Sporting Events: High‑brightness outdoor screens for scoreboards and replays.
-
Exhibitions: Lightweight, easy‑to‑install booth displays.
-
Broadcast: Flicker‑free screens for TV studio backdrops.
Optional Accessories
- Curved arc locks
- 45° beveled corner cabinets
- IP65 outdoor protection
- Custom flight cases
-
Spare parts kits
Project Cases
- Summer Music Festival (Europe): 150㎡ curved wall, installed in 3.5 hours, operated flawlessly over 3 days of rain and sun.
- Global Tech Conference (USA): 80㎡ flat wall with corner wings, used for live product demonstrations and keynote presentations.
- Auto Show (Asia): 60㎡ suspended display, attracting record visitor engagement.
FAQ
Q1: Is the RD Series suitable for outdoor use?
Yes, with optional IP65 cabinets.
Q2: How does the quick‑lock system work?
Simply align cabinets and press the lock – no tools or screws required.
Q3: Can I install the screen in a corner?
Yes, with 45° beveled cabinets for seamless 90° installations.
Product Reference Photo
Product Reference Video
