ABXLED 600 Series Indoor COB LED Display – P0.78–P1.56, 30mm Ultra-Thin Cabinet, 16:9 Golden Ratio, Front Service
Product Overview
The ABXLED 600 Series is an indoor COB LED display built on a 600×337.5mm cabinet with a native 16:9 aspect ratio. It uses chip-on-board packaging instead of conventional SMD, which produces a smoother surface, higher contrast, and better protection against physical contact. The cabinet measures 30mm in depth and weighs 5.1kg, making it suitable for wall-mounted installations where depth and structural load are constrained.
Core Specifications
|
Parameter |
Specification |
|
Cabinet Size |
600mm × 337.5mm (16:9) |
|
Cabinet Thickness |
30mm |
|
Cabinet Weight |
5.1kg |
|
Pixel Pitch Options |
P0.78, P0.93, P1.25, P1.56 |
|
Packaging Technology |
COB (Chip-on-Board) |
|
Standard Resolutions |
2K, 4K, 8K via splicing |
|
Maintenance |
Full front service |
|
Module Connection |
HUB-based, wireless plug-and-play |
|
Module Replacement |
Electric vacuum clamp |
|
Aspect Ratio |
16:09 |
What Defines This Display

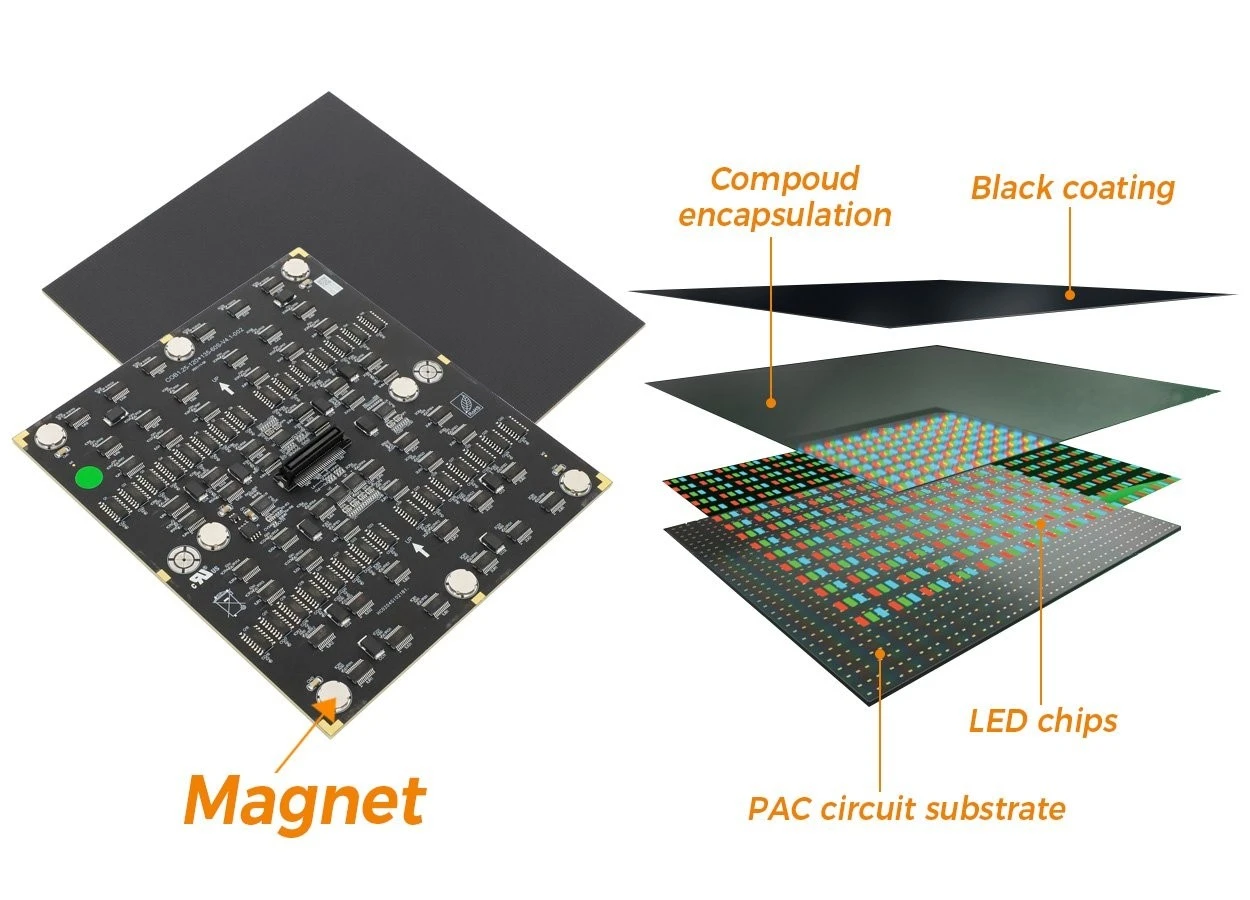

- COB packaging. LED chips are bonded directly to the board rather than mounted as individual packages. This produces a smoother surface, reduces the risk of damage from contact, and improves contrast compared to SMD modules at the same pitch.
- 16:9 native cabinet. The 600×337.5mm cabinet matches standard video aspect ratio without cropping or letterboxing. A 2×2 configuration produces 4K; larger arrays reach 8K. This matters for conference rooms and control rooms where source content is standard 16:9.
- 30mm depth, 5.1kg weight. The slim profile allows installation on walls that cannot support deeper cabinets. The low weight reduces structural requirements and simplifies handling during installation.
-

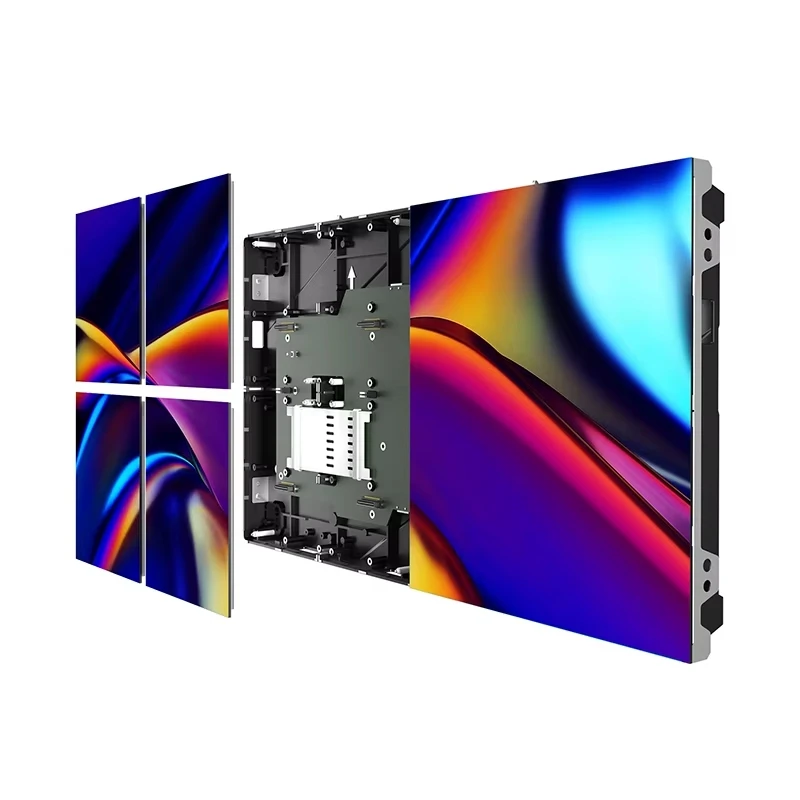

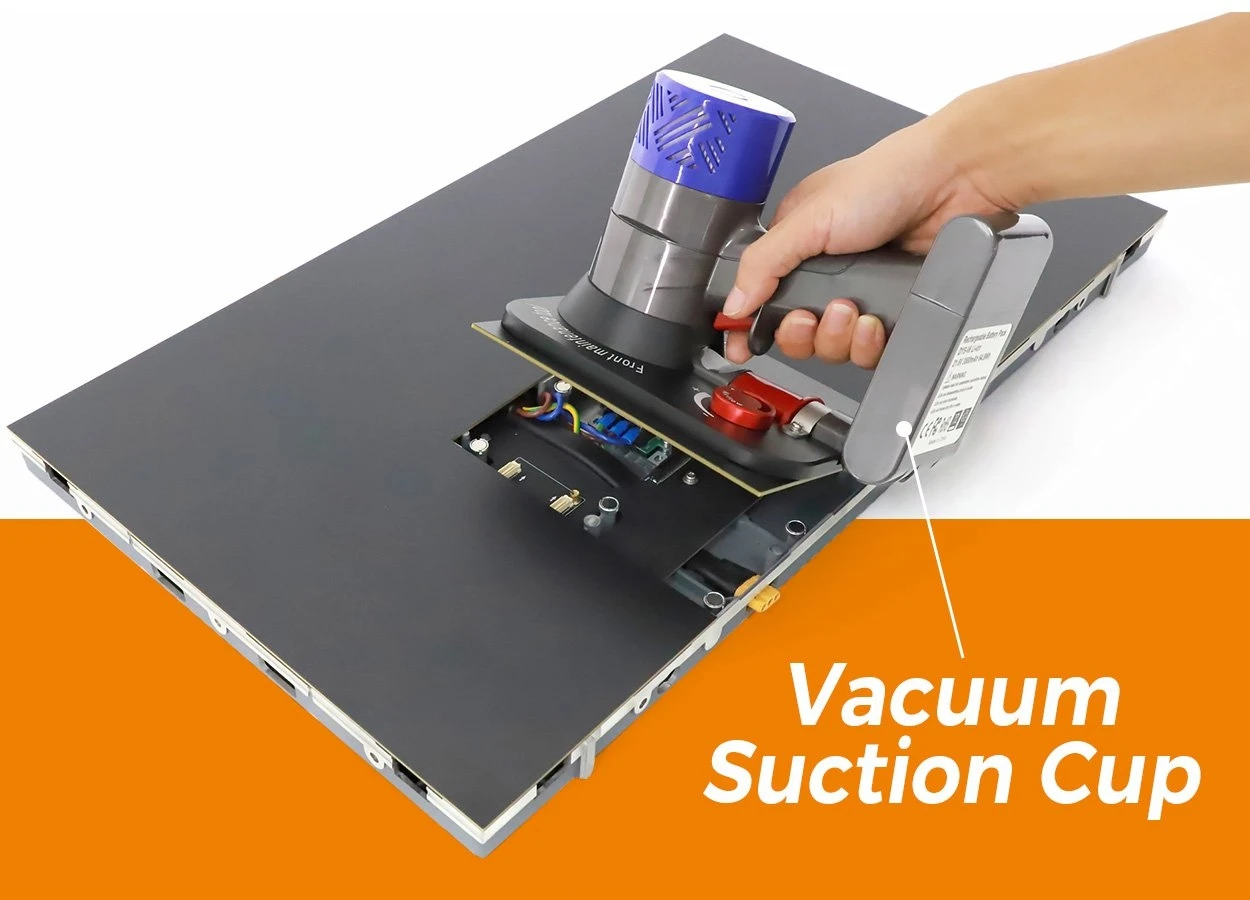

Full front service. Modules are accessed from the front using an electric vacuum clamp. No rear access is required, which means the display can be mounted flush against a wall.
-

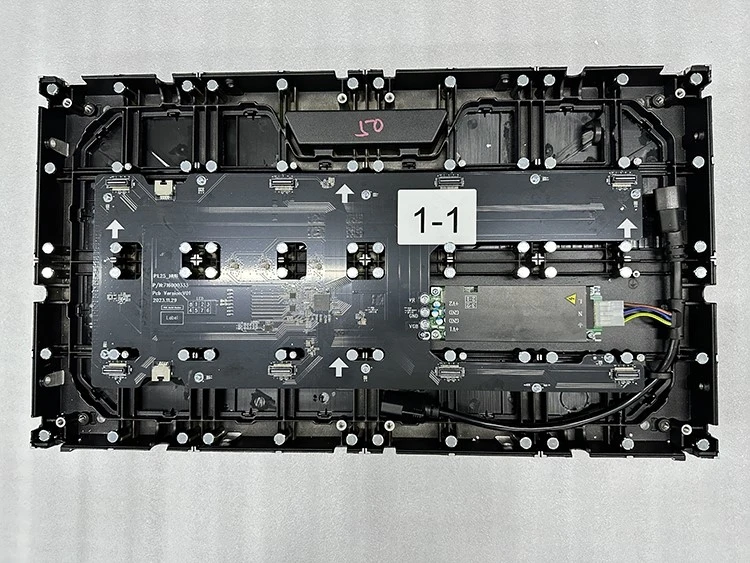

Wireless module connection. Data and power are delivered through a HUB connection with no separate DC power lines. This reduces cable clutter and simplifies module replacement.
Visual Performance
The 600 Series improves brightness and contrast through its fine pixel pitch. The COB surface produces a smoother image at close viewing distances and maintains color consistency across the display. The viewing angle and viewing distance are optimized for indoor environments where audiences sit or stand within a few meters of the screen.
Applications
Conference rooms, control rooms, broadcast studios, corporate lobbies, retail showrooms, museums, and other indoor environments requiring fine-pitch displays.
Project Cases
This seamless high‑definition LED screen is installed in a airport premium lounge area. With fine‑pitch technology, it delivers sharp, vivid images for close‑range viewing. It plays dynamic landscape videos, brand content and event messages. Optimized indoor brightness ensures comfortable viewing. Perfect for VIP lounges, hotel and corporate reception areas to enhance space ambiance and visitor experience.
FAQ
Q1: What is the cabinet size?
600mm × 337.5mm, native 16:9 aspect ratio.
Q2: How thick is the cabinet?
30mm.
Q3: How much does the cabinet weigh?
5.1kg.
Q4: What pixel pitches are available?
P0.78, P0.93, P1.25, P1.56.
Q5: Does it require rear access for maintenance?
No. Full front service with electric vacuum clamp.
Q6: What resolutions can be achieved?
2K, 4K, and 8K via cabinet splicing.
Q7: What is the module connection type?
HUB-based wireless plug-and-play.
