Indoor COB LED Displays for Conference Rooms, Control Rooms, and Broadcast Studios – Matching Fine Pitch to Room Function
Why Room Function Determines Pixel Pitch
Two rooms can have identical dimensions and still require different displays. A conference room is viewed from a seated distance of 3 to 6 meters. A control room is viewed from 1.5 to 3 meters for hours at a time. A broadcast studio is judged by what the camera sees, not what the eye sees. In each case, the correct pixel pitch is determined by the viewing condition, not the room size.
Conference Rooms – The 16:9 Advantage
Conference rooms run standard video content: presentations, video calls, and shared screens. A 16:9 native cabinet means the display matches the source without cropping. The 600×337.5mm cabinet is designed for this. For a typical boardroom with 3 to 6 meter viewing distance, P1.25 and P1.56 cover most installations. P0.93 is specified when the display is also used for detailed document review or data visualization.
Control Rooms – Close Viewing for Extended Periods

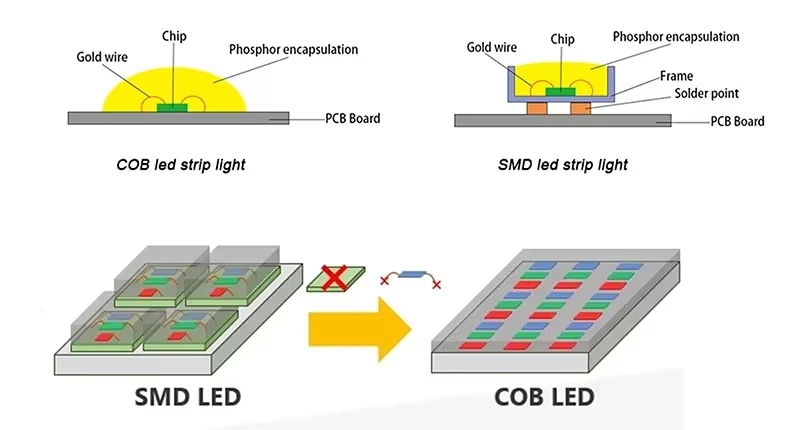

Control room operators sit close to the screen and watch it continuously. Two factors matter more than peak brightness: grayscale performance at low brightness, and surface smoothness. COB packaging produces a smoother surface than SMD, which reduces eye strain at close range. P0.78 and P0.93 are common in these environments. The front-service design matters here because control rooms rarely have rear access.
Broadcast Studios – The Camera Is the Judge

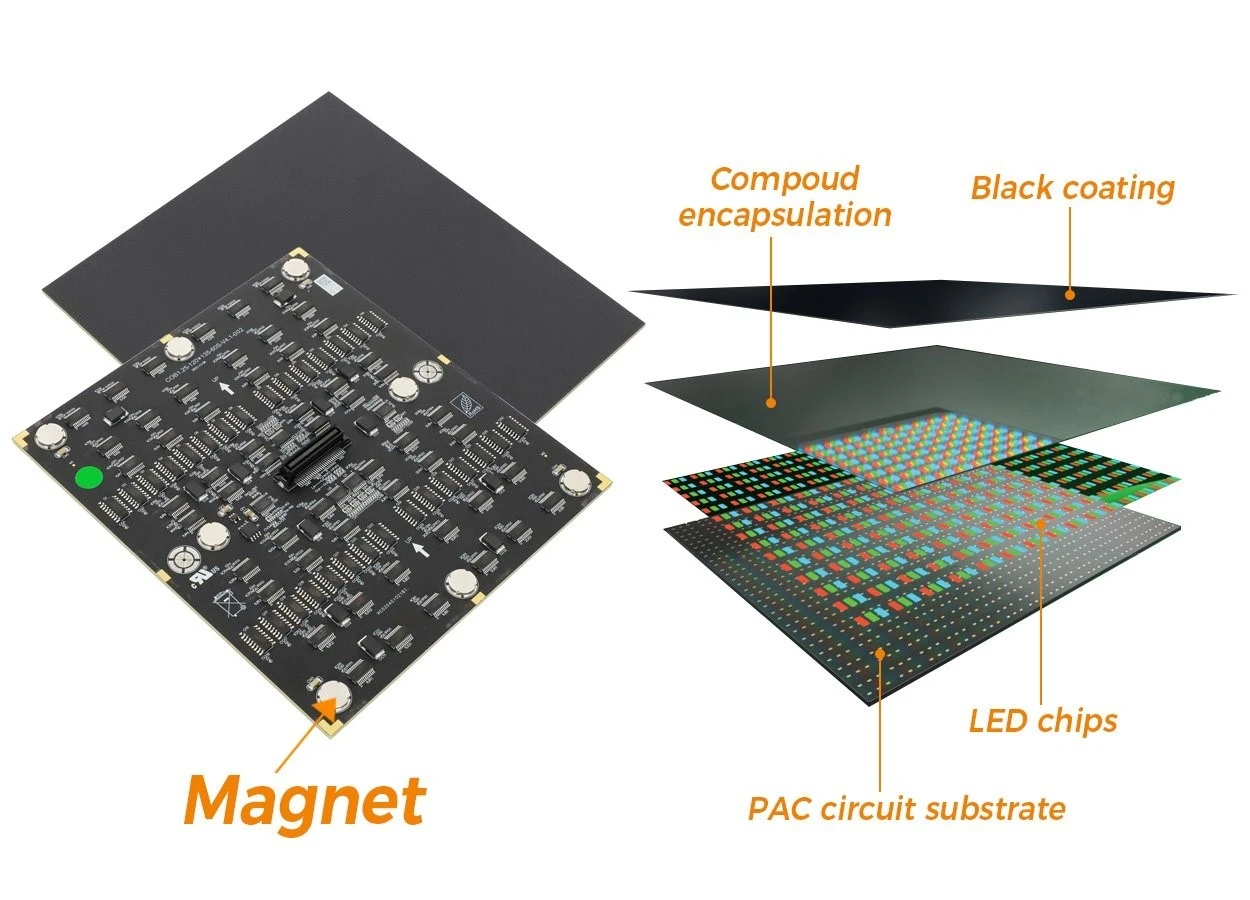

Studio displays must hold image stability under camera capture. Refresh stability and surface uniformity determine whether the display shows banding or moiré on camera. COB modules produce a more uniform surface than SMD, which reduces these artifacts. P0.93 and P1.25 are typical in studio backdrops and virtual production walls.

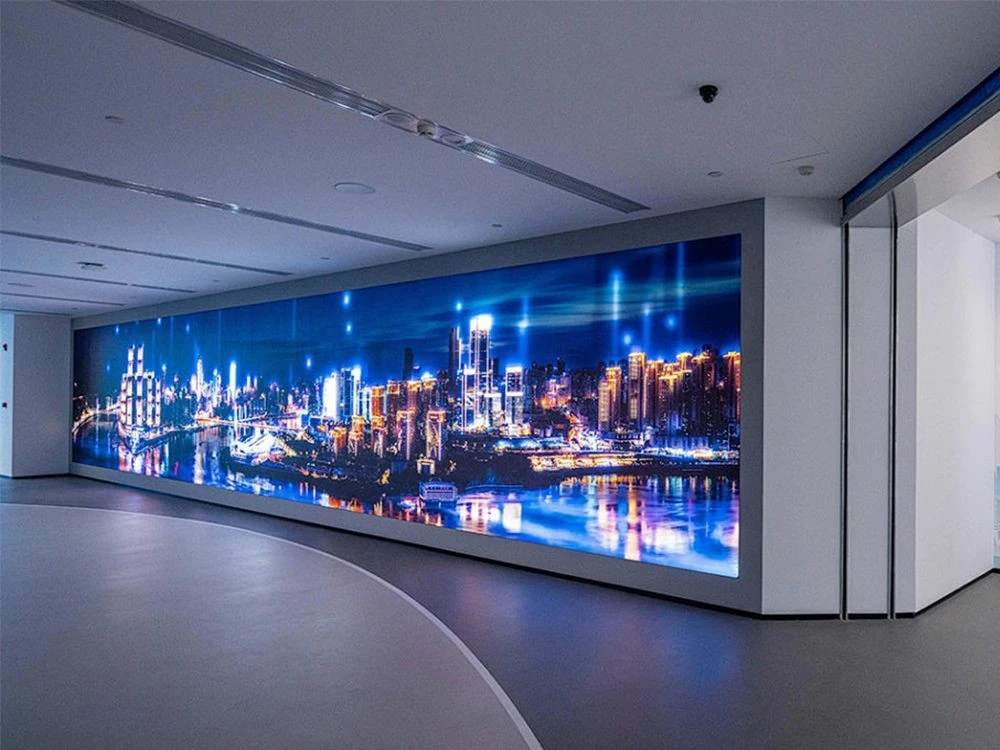

Corporate Lobbies and Showrooms – Impression at Standing Distance

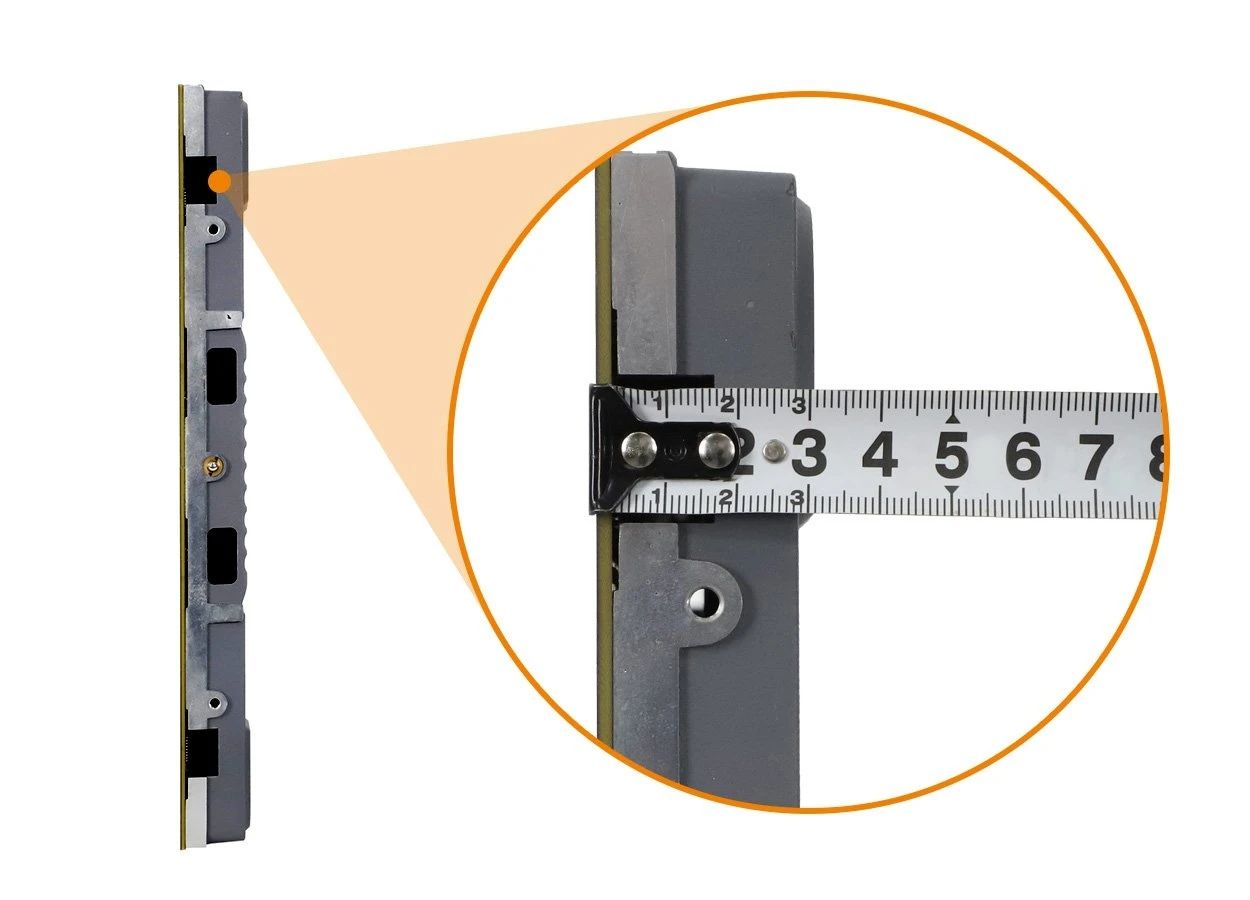

Lobby displays are viewed from standing distance and must look sharp under ambient daylight. P1.25 and P1.56 balance clarity and cost for this environment. The 30mm depth and 5.1kg weight make wall mounting practical without structural reinforcement.
Matching Pitch to Room Type
|
Room Type |
Typical Viewing Distance |
Recommended Pitch |
Key Constraint |
|
Control room |
1.5–3 m |
P0.78–P0.93 |
Low-brightness grayscale, surface smoothness |
|
Broadcast studio |
2–5 m |
P0.93–P1.25 |
Camera capture stability |
|
Conference room |
3–6 m |
P1.25–P1.56 |
16:9 source matching |
|
Corporate lobby |
3–8 m |
P1.25–P1.56 |
Ambient light, wall-mount depth |
|
Showroom |
2–6 m |
P0.93–P1.25 |
Close product detail |
Project Cases

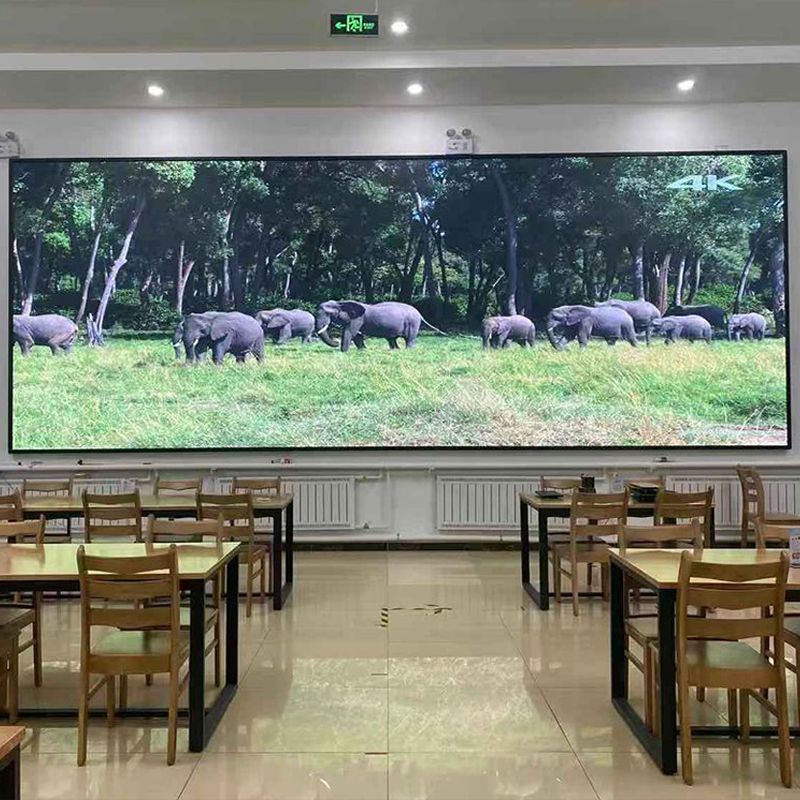

This large‑size indoor LED screen is mounted in the staff dining hall. It delivers bright, clear images for public viewing. Used for news broadcast, notice release, entertainment video playback and atmosphere improvement. Reliable performance fits long‑time daily operation in canteen environment. Widely applicable for factory canteens, campus dining halls and staff cafeterias.
What to Tell Us Before Ordering
Share the room type, viewing distance, whether the display will appear on camera, and whether rear access is available. These four answers determine pitch, cabinet configuration, and mounting method.
