Installing and Maintaining the ABXLED 600 Series COB Display – Front Service, Wireless Modules, and Wall-Mount Planning
What Installation Requires Before the Screen Arrives
A 30mm cabinet at 5.1kg is easier to install than a deeper, heavier display, but the wall and mounting surface still need to be checked. This page covers what to prepare, how the modules connect, and how maintenance works after installation.
Wall and Mounting Preparation
Confirm three things before installation:
Wall flatness. Fine-pitch displays show surface irregularities. The mounting surface should be level within standard tolerance for the pitch being installed. For P0.78 and P0.93, tighter tolerances apply.

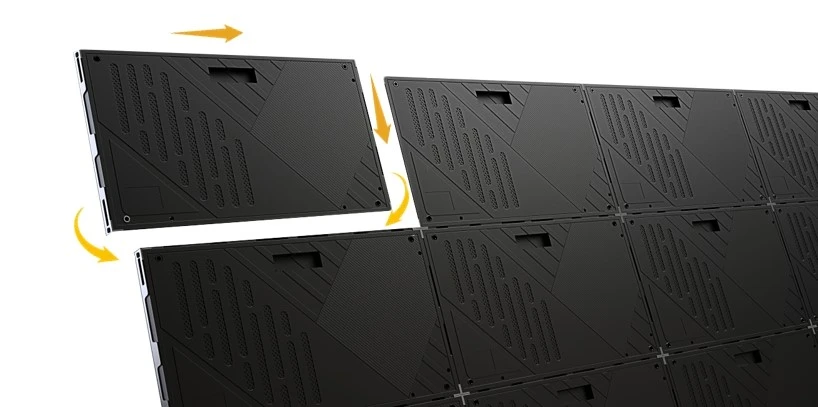

Mounting structure. Because the cabinet is front-service, the display can be mounted flush against the wall. This eliminates the need for rear clearance. Confirm the wall can support the total display weight, including cabinets, power supplies, and control hardware.
Power and signal routing. Confirm power distribution points and signal cable paths before cabinets are mounted. The wireless module connection reduces internal cabling, but external power and signal still need to be planned.
|
Parameter |
Specification |
|
Series |
600 Series – Indoor COB LED Display |
|
Cabinet Size |
600mm × 337.5mm (16:9 golden ratio) |
|
Cabinet Thickness |
30mm – ultra-thin |
|
Cabinet Weight |
5.1kg per cabinet |
|
Pixel Pitch Options |
P0.78, P0.93, P1.25, P1.56 |
|

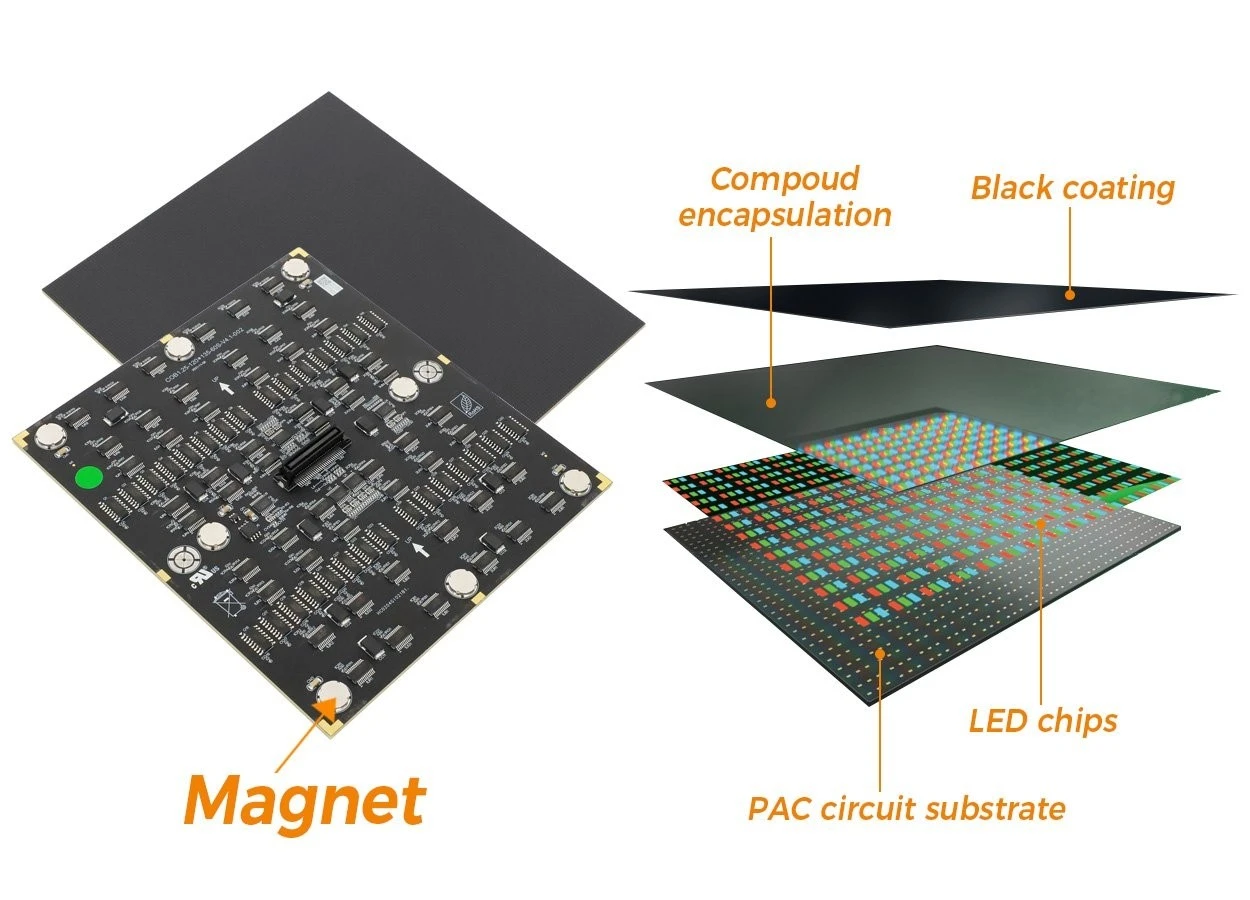

COB Technology |
Chip-on-Board packaging |
|

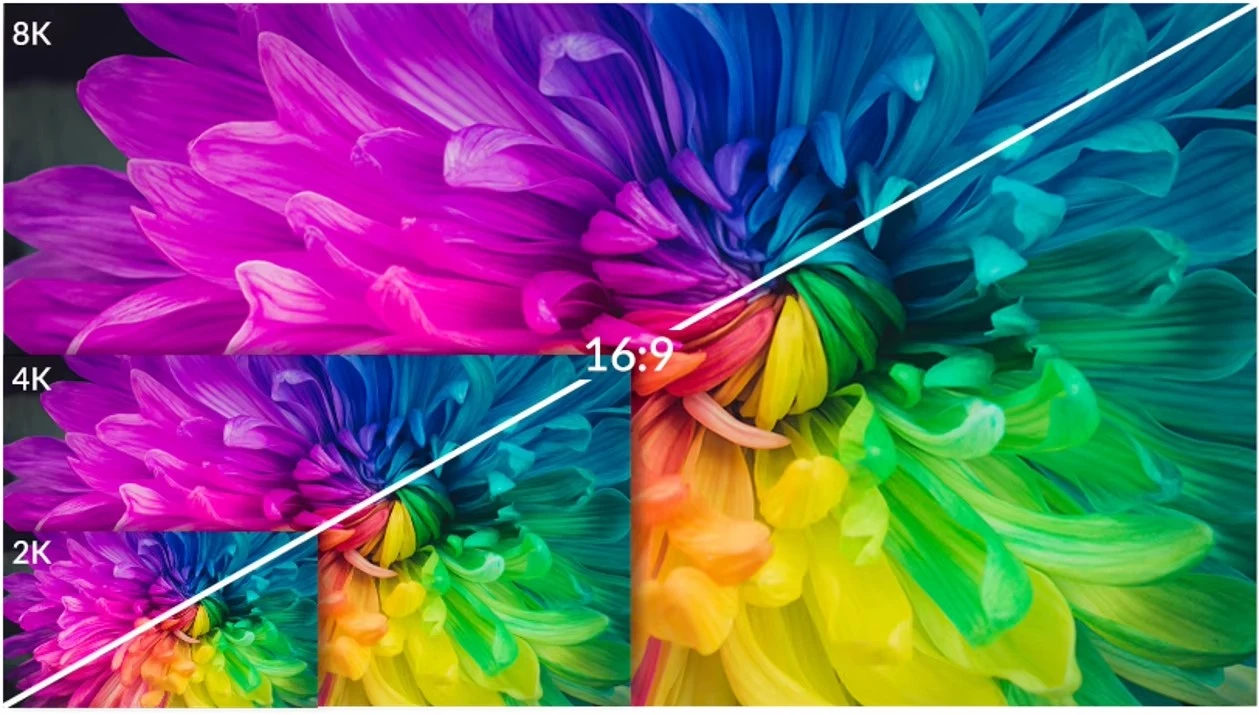

Standard Resolutions |
2K, 4K, 8K (configurable via splicing) |
|
Maintenance Access |
Full front maintenance |
|
Module Connection |
HUB connection – plug-and-play wireless design |
|
Module Replacement |
Electric vacuum clamp – tool-free |
|
Applications |
Indoor – conference rooms, control rooms, broadcast studios, retail, corporate lobbies |
How the Wireless Module Connection Works
Each module receives data and power through a HUB connection. There are no separate DC power lines running to individual modules. This simplifies installation because modules do not need individual power wiring, and it simplifies maintenance because a module can be removed without disconnecting separate power cables.
Module Replacement Procedure

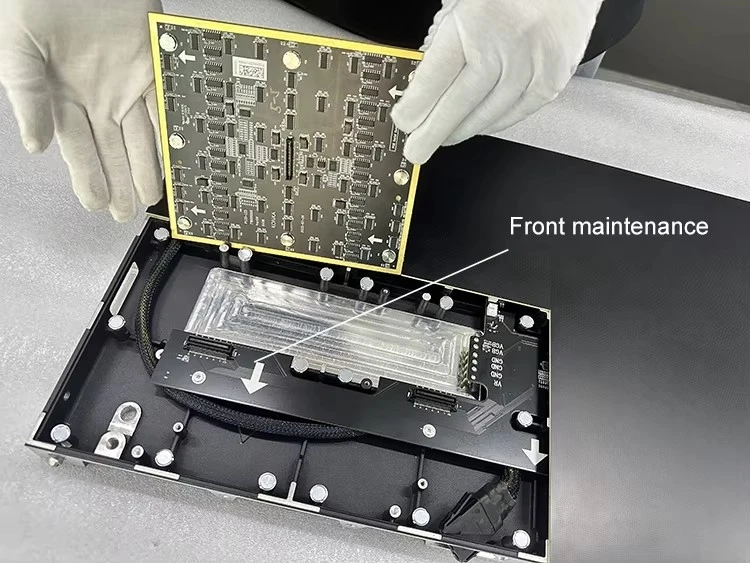

- The 600 Series uses full front service. The procedure is:
- Attach the electric vacuum clamp to the module surface.
- Release the module from the HUB connection.
-
Remove the module from the front.
-
Position the replacement module and reconnect to the HUB.
-
Confirm data and power are active.
-
The module weight and front-access design mean this can be performed by on-site staff without specialized training.
Routine Maintenance
- COB modules resist contact damage better than SMD, but routine care still matters:
- Cleaning. Use a soft, dry cloth or a screen-safe cleaner. Avoid abrasive materials that could scratch the COB surface.
- Inspection. Check for dead pixels and color uniformity periodically. COB modules maintain consistency well, but early detection of issues reduces repair scope.
-
Environmental checks. Confirm ambient temperature and humidity remain within the operating range. Verify ventilation around power supplies if the display is recessed into a wall.
Spare Parts Planning
For installations where downtime matters, keep spare modules on hand. Because modules are front-service and interchangeable within the same pitch, a small stock of spare modules covers most field failures without requiring a full cabinet replacement.
What ABXLED Provides
- Installation guidance and documentation
- Tutorial videos for module replacement and configuration
- Spare module kits on request
-
Technical support during commissioning
-
Warranty coverage for the display and control system
Project Cases
This large indoor LED screen is installed behind the winery reception counter. It plays brand welcome messages and vineyard scenery videos. It acts as a striking brand backdrop for the reception area. Delivers vivid image performance to impress visiting guests. Perfect for wineries, tasting rooms, retail and resort reception areas.
FAQ
Q1: Does the display require rear access?
No. Full front service. The display can be mounted flush against a wall.
Q2: Can on-site staff replace modules?
Yes. The electric vacuum clamp and HUB connection allow module replacement without specialized training.
Q3: How many spare modules should I keep?
For critical installations, a small stock covering 2–5% of total module count is typical.
Q4: What mounting methods are supported?
Wall mounting is standard. The 30mm depth and 5.1kg weight allow mounting on structures that cannot support deeper displays.
Q5: What is the warranty period?
Contact us for warranty terms and coverage details.
