Colorlight X12 Professional LED Controller Box – DVI & HDMI Inputs, 7.2 Million Pixel Load, 12× Gigabit Ethernet Outputs, Seamless Switching, and Broadcast-Level Scaling
Key Benefits

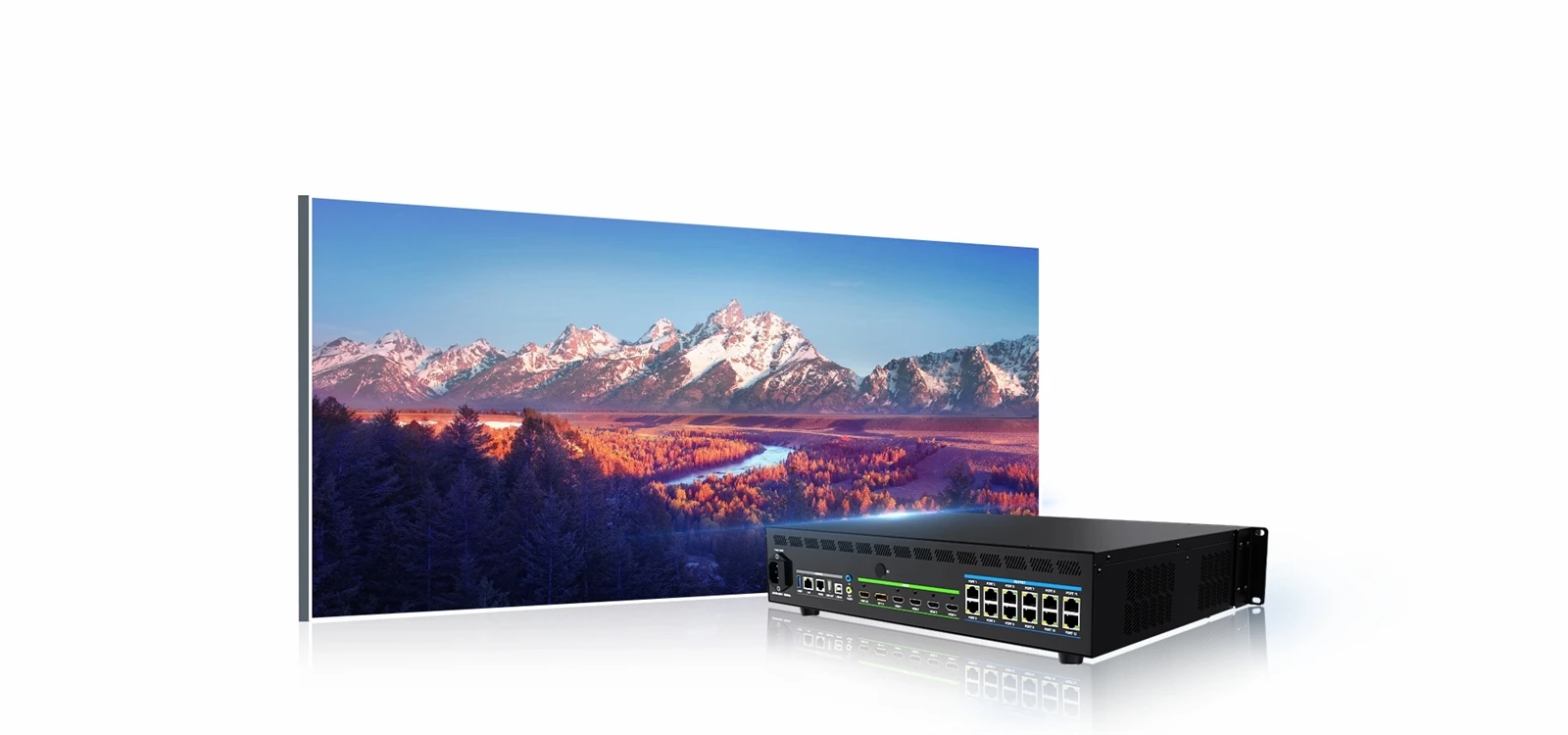

The Colorlight X12 is a professional-level control system and video processing equipment designed for LED display engineering applications. It features DVI and HDMI high-definition digital interfaces, supports seamless switching between multiple signals, and delivers broadcast-level scaling and multi-screen display capabilities. The X12 provides 1 channel DVI input and 3 channels HDMI 1.4 input – with a maximum load of 7.2 million pixels. The maximum width can reach 8,192 pixels, or the maximum height can reach 4,096 pixels. The maximum input resolution of a single channel is 1920×1200@60Hz, and the resolution can be set arbitrarily. The controller supports HDCP 1.4 protocol high-bandwidth digital content protection technology. For outputs, it provides 12-way Gigabit Ethernet port output with support for single or dual redundant backup – ensuring reliable, uninterrupted operation. Video sources can be switched, cropped, spliced, and zoomed arbitrarily, while the 3-screen display function allows window position and size to be adjusted freely. Brightness and color temperature adjustment are supported, along with contrast, hue, and saturation adjustment. The low brightness and high gray feature effectively maintains the complete display of gray scale under low brightness conditions. Dual USB 2.0 high-speed communication interfaces are provided for computer debugging and arbitrary cascading between the main control, while RS232 serial protocol control ensures flexible system integration. The Colorlight X12 is the ideal professional LED controller box for demanding engineering applications.
Main Features

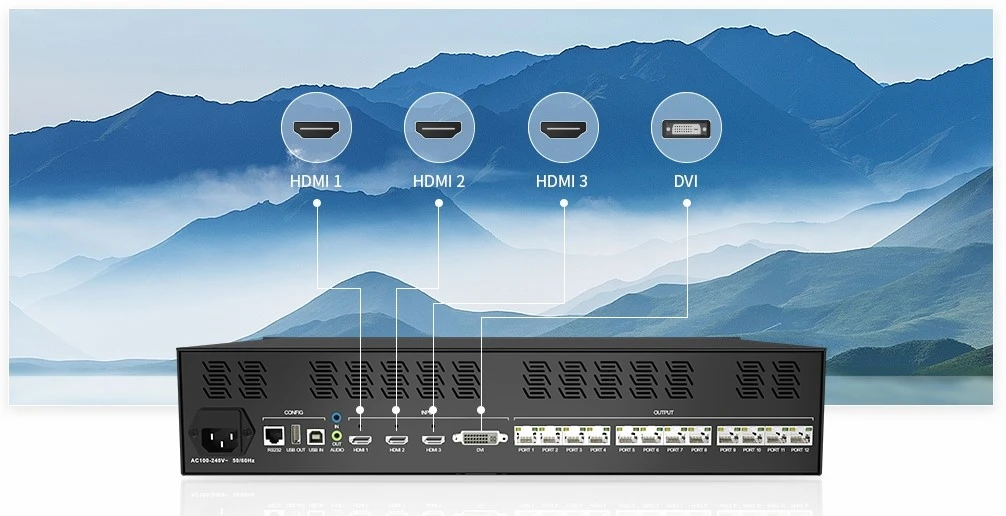

- Multiple Inputs: 1 channel DVI input and 3 channels HDMI 1.4 input.
-
Large Load Capacity: Maximum load of 7.2 million pixels – max width 8,192 pixels, or max height 4,096 pixels.
-
High Input Resolution: Single channel max 1920×1200@60Hz – resolution can be set arbitrarily.
-
HDCP 1.4 Protocol: High-bandwidth digital content protection technology.
-
12-Way Gigabit Ethernet Output: Supports single or dual redundant backup.
-
Versatile Video Processing: Video source can be switched, cropped, spliced, and zoomed arbitrarily.
-
3-Screen Display: Window position and size can be adjusted freely.
-
Color Adjustment: Brightness, color temperature, contrast, hue, and saturation adjustment.
-
Low Brightness & High Gray: Effectively maintains complete display of gray scale under low brightness.
-

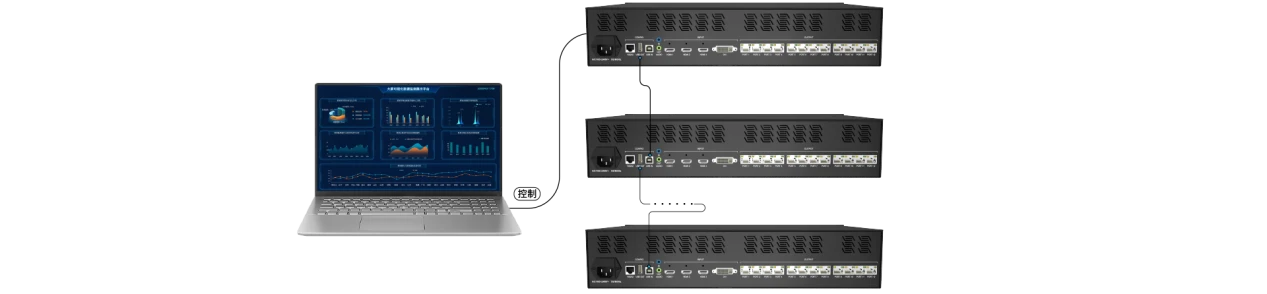

Dual USB 2.0 Interfaces: Computer debugging and arbitrary cascading between main controls.
-
RS232 Serial Protocol Control: Flexible system integration.
Technical Specifications
|
Parameter |
Specification |
|
Series |
Colorlight X12 |
|
Type |
Professional LED Controller Box |
|
Inputs |
1× DVI, 3× HDMI 1.4 |
|
Max Input Resolution |
1920×1200@60Hz per channel – arbitrary resolution setting |
|
HDCP |
HDCP 1.4 |
|
Max Loading Capacity |
7.2 million pixels – max width 8,192 pixels, or max height 4,096 pixels |
|
Outputs |
12× Gigabit Ethernet ports |
|
Backup |
Single or dual redundant backup |
|
Video Processing |
Switching, cropping, splicing, zooming |
|
Multi-Screen |
3-screen display – window position and size adjustable |
|
Color Adjustment |
Brightness, color temperature, contrast, hue, saturation |
|
Low Brightness |
High gray – complete gray scale display |
|
Communication |
Dual USB 2.0, RS232 |
|
Control |
Computer debugging, cascading |
Application Scenarios
-
LED Display Engineering: Professional control for complex LED installations.
-
Broadcast & TV: Broadcast-level scaling and multi-screen display.
-
Stage & Events: Seamless switching between multiple signals.
-
Large-Scale LED Displays: Up to 7.2 million pixels.
-
Multi-Screen Systems: 3-screen display with adjustable windows.
-
Control Rooms: Reliable operation with redundant backup.
Optional Accessories & Custom Options
-
Specification PDF available for download
-
Spare input/output modules
-
Rack-mount hardware
-
Extended warranty and technical support packages
-
Technical datasheets and user manuals available upon request
Project Cases

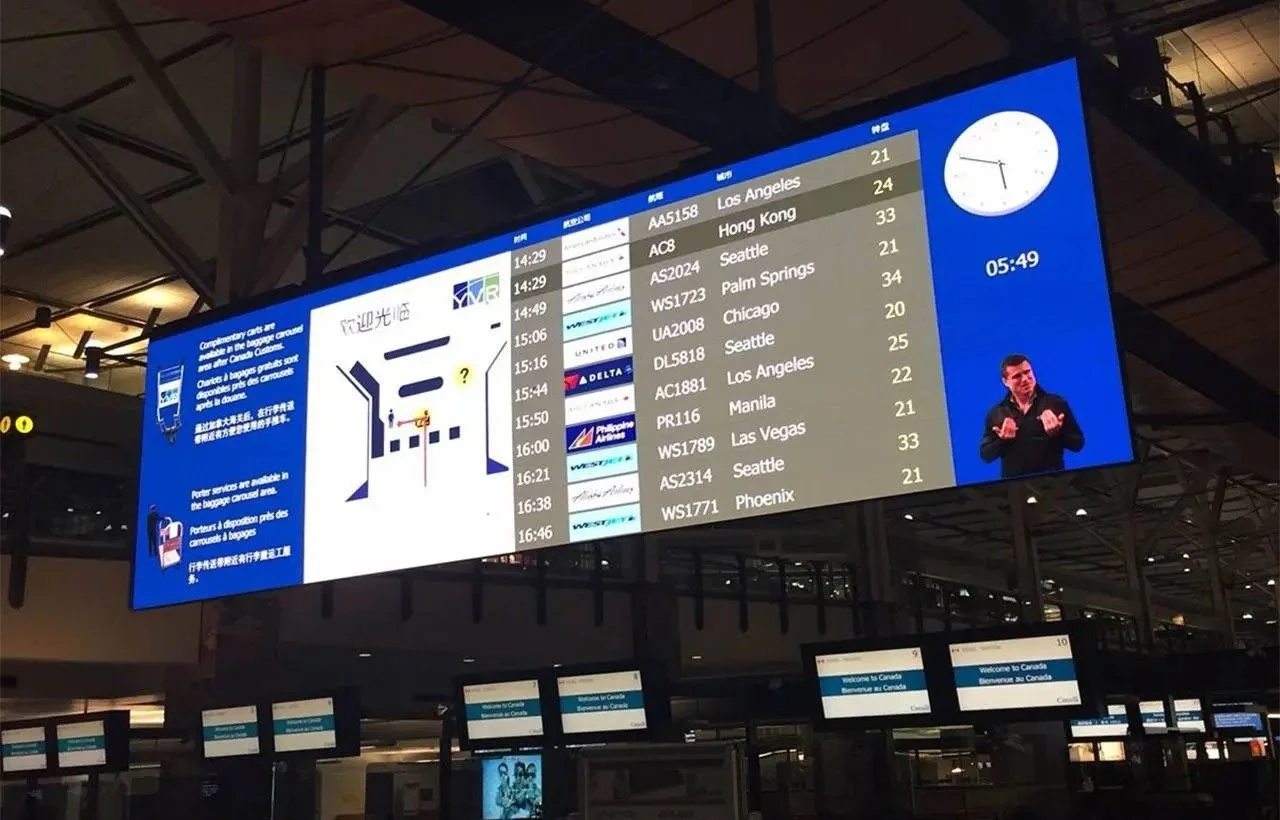

This large suspended LED display installed in airport terminal is controlled by the Colorlight X12 video processor. The processor supports multi-window split-screen output, which can simultaneously show flight schedules, welcome information, clock and guide graphics. The screen delivers stable, clear content for passengers in high-traffic public areas. It enables flexible content switching and long-hour continuous operation, meeting the 24/7 working requirement of transportation hubs. This solution is widely used in airports, railway stations and other public information release scenarios.
FAQ
Q1: What is the Colorlight X12?
A professional-level control system and video processing equipment for LED display engineering applications.
Q2: What inputs does the X12 support?
1 channel DVI input and 3 channels HDMI 1.4 input.
Q3: What is the maximum load?
7.2 million pixels – max width 8,192 pixels, or max height 4,096 pixels.
Q4: What is the maximum input resolution?
1920×1200@60Hz per channel – resolution can be set arbitrarily.
Q5: Does it support HDCP?
Yes – HDCP 1.4 protocol.
Q6: How many outputs does it have?
12-way Gigabit Ethernet port output with single or dual redundant backup.
Q7: Does it support multi-screen display?
Yes – 3-screen display with adjustable window position and size.
Q8: What color adjustments are supported?
Brightness, color temperature, contrast, hue, and saturation.
Q9: What communication interfaces are available?
Dual USB 2.0 and RS232 serial protocol control.
Q10: What is the warranty?
Contact us for warranty details and extended options.

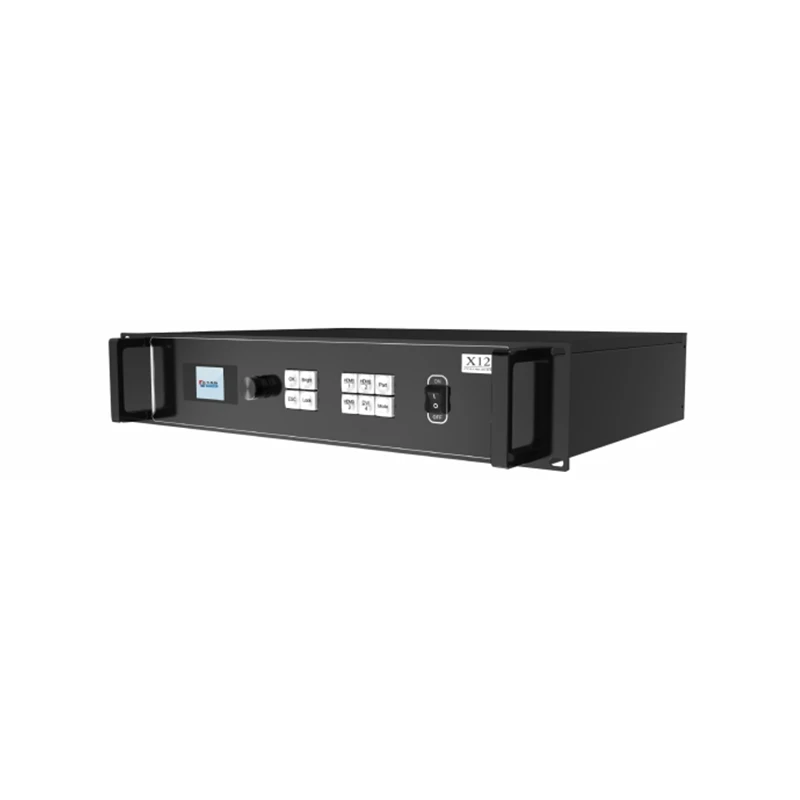

Product Reference Photo
