How to Specify an Outdoor 3D LED Screen – Energy Saving, IP Ratings, and the Costs Buyers Overlook
The Energy Saving Claim – What Actually Drives It

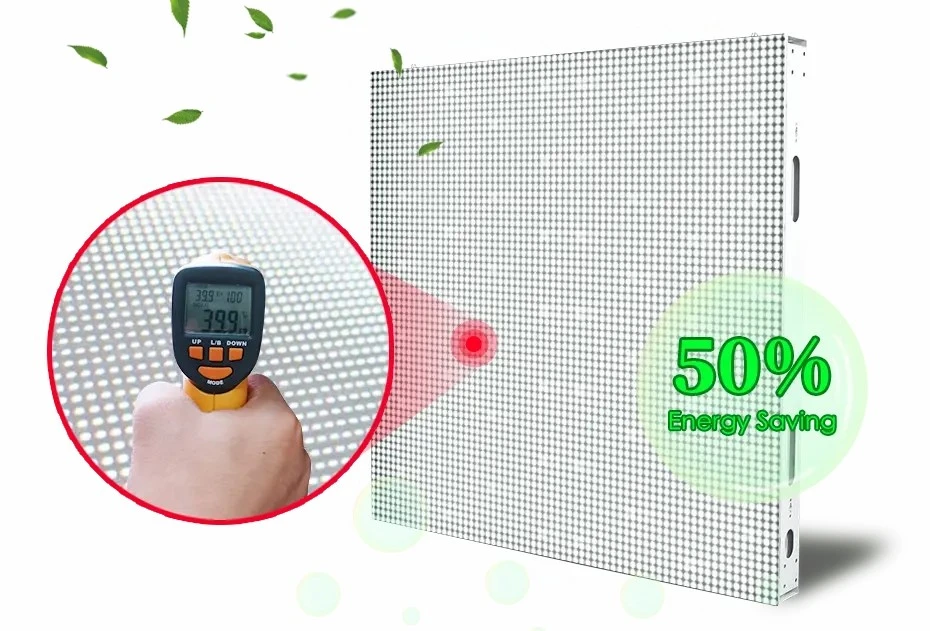

"50% energy saving" appears on many outdoor LED datasheets. The number is only meaningful if you know what produces it. In the OA Series, the saving comes from a common cathode power architecture. Instead of driving all three color channels from a shared supply, power is delivered separately to the red channel and the blue/green channel. Current is distributed more precisely to each lamp bead, and less energy is lost as heat.
The measurable result is panel operating temperature. A conventional outdoor panel runs around 50°C. The OA Series runs around 39°C. That 11-degree difference affects component lifespan, color stability, and cooling requirements.
IP65 vs IP66 – Why the Difference Matters Outdoors
Both ratings protect against dust and water, but IP66 withstands stronger water jets. For outdoor billboards, the practical difference appears in two situations: driving rain against the panel face, and pressure washing during maintenance. IP66 on both front and rear means the panel can be cleaned without disassembly and does not require additional weather housing.
Panel Weight and the Hidden Steel Frame Cost
A 26kg aluminum panel versus a steel equivalent changes more than shipping. It changes the steel frame required to hold the screen. Lighter panels need less structural steel, and buyers commonly report at least 30% reduction in frame cost. On retrofit projects where the mounting structure already exists, weight reduction often determines whether the project is feasible at all.
Pixel Pitch Selection for Outdoor Viewing
Outdoor viewing distances are longer than indoor, so the pitch calculation shifts.
|
Pixel Pitch |
Practical Outdoor Viewing Distance |
Typical Use |
|
P4.44 |
4–12 m |
Feature screens, close pedestrian traffic |
|
P5.7 |
6–18 m |
Mixed-traffic retail locations |
|
P6.667 |
8–25 m |
Theme parks, large plazas |
|
P8 |
12–35 m |
Roadside billboards |
|
P10 |
20–50 m |
Highway and long-distance viewing |
Choosing a finer pitch than the site requires adds cost without visible improvement. Choosing a coarser pitch than the audience distance allows produces visible pixel structure.
Maintenance Access and Total Cost

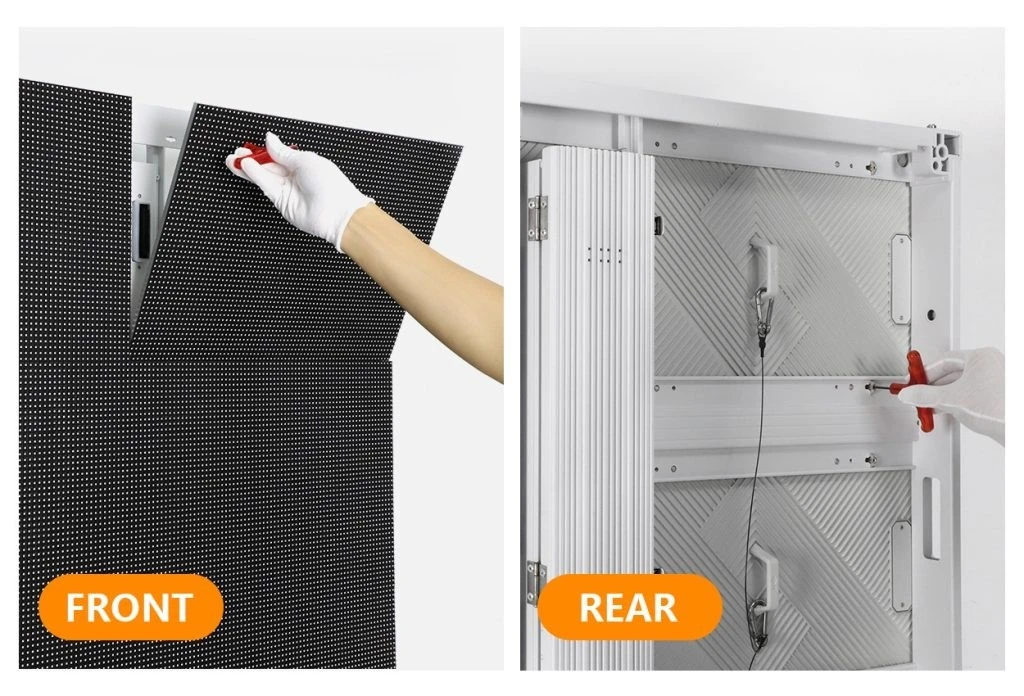

The 480×320mm module releases from the front with a tool, and the same operation works from the rear. This matters because outdoor screens are often mounted where rear access is difficult. A panel that requires rear access may need a service corridor or lift equipment, adding cost that does not appear in the panel price.
Questions to Ask Every Outdoor LED Supplier
- Is the IP rating applied to both front and rear, or front only?
- What is the panel weight, and what steel frame reduction does it allow?
- What is the measured operating temperature at full brightness?
-
Is the energy saving figure based on common cathode design or a different architecture?
-
What is included in the 3-year warranty, and what is excluded?
-
Can the panel be serviced from both sides?
FAQ
Q1: What is the minimum order quantity?
2 pieces.
Q2: What is the supply capacity?
3,000 square meters per month.
Q3: What certifications does the panel carry?
CE, RoHS, FCC, LVD.
Q4: What payment methods are accepted?
Credit card, T/T, Western Union, PayPal.

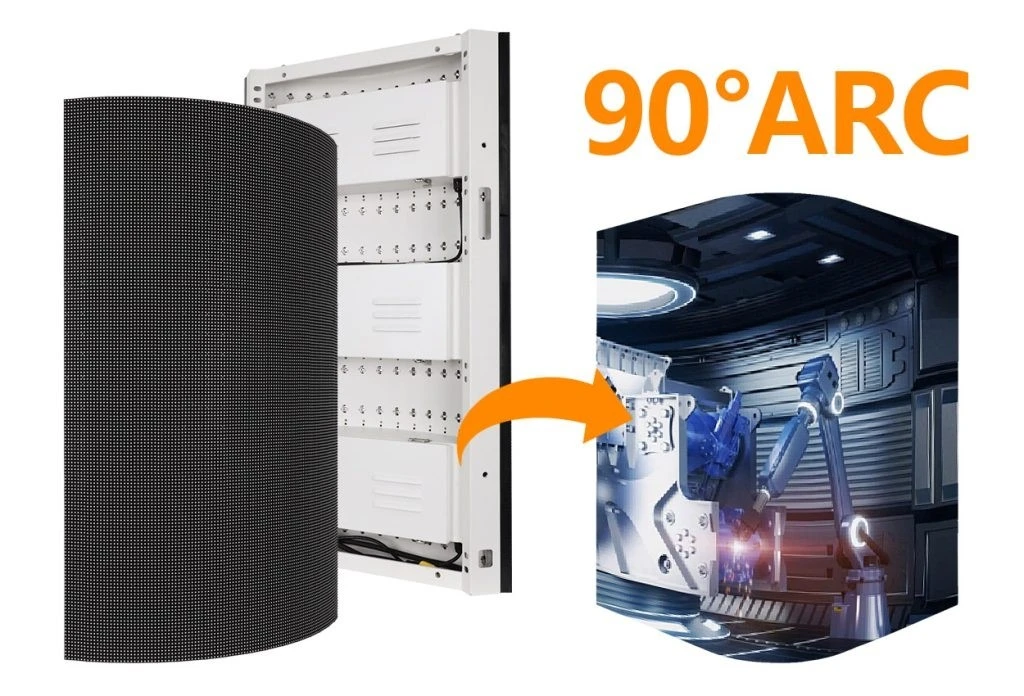

Q5: Can the screen be curved?
Yes. With the optional equipment, panels can form a seamless curved display for naked-eye 3D effects.
Project Cases

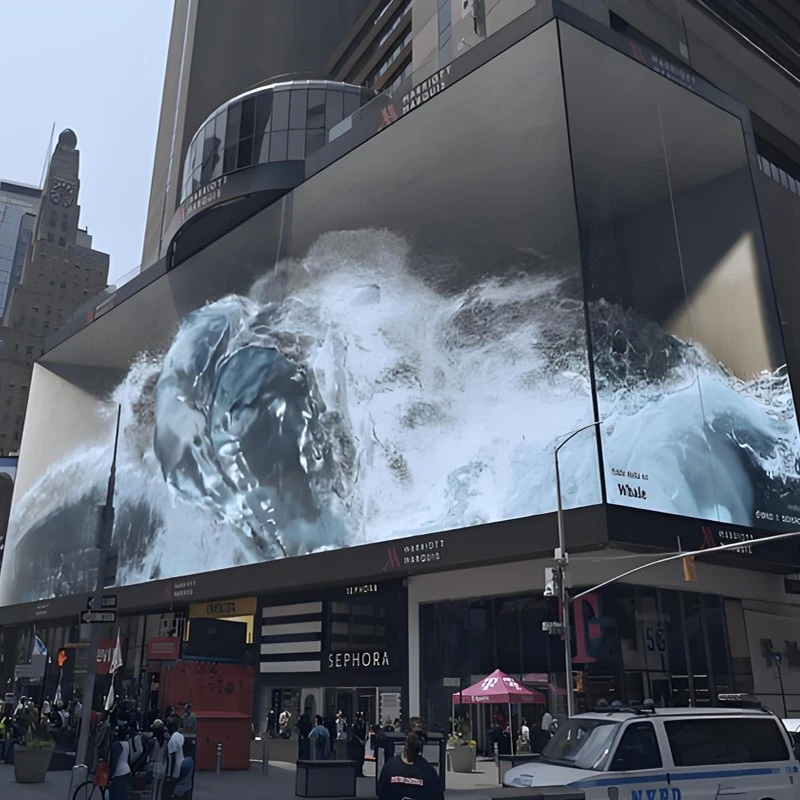

This giant corner naked-eye 3D LED screen is mounted on the exterior facade of a landmark commercial building in a busy downtown square. The seamless right-angle spliced panel presents a stunning visual of a whale bursting out of surging seawater, creating a realistic immersive 3D illusion for passers-by. Featuring ultra-high brightness, delicate grayscale and wide viewing angle, it retains excellent display effect under strong natural daylight. Integrated with urban architecture, this landmark digital screen attracts massive foot traffic, triggers social media sharing, and creates tremendous commercial publicity value for brands in core city business districts.
