Outdoor 3D LED Billboards for Seaside Sites, Theme Parks, and Pedestrian Malls – Matching Panel Spec to Site Conditions
Why Outdoor LED Projects Fail at the Site Level
Most outdoor LED failures are not display failures. They are site-mismatch failures. A panel specified for an inland shopping center behaves differently on a seaside promenade. A screen sized for a 6-meter viewing distance underperforms on a highway where viewers pass at 40 meters. This page walks through four common outdoor environments and what each one actually demands from the panel.
Seaside and Coastal Installations – Corrosion Is the Real Enemy
Salt air attacks steel frames and unprotected electronics. This is where aluminum construction matters. The OA Series uses a die-cast aluminum chassis that does not rust, and the IP66 rating seals both faces. For coastal sites, the practical specification is IP66 front and rear plus aluminum housing. Steel cabinets require additional coating and still degrade faster.
Pedestrian Malls and Shopping Centers – Viewing Distance Varies by Hour
A shopper walking past at 3 meters sees pixel structure. The same shopper standing 15 meters away sees a clean image. In mixed-traffic locations, P5.7 and P6.667 cover most of the audience, while P4.44 is reserved for feature screens where close viewing is expected. The 7680Hz refresh rate matters here because pedestrians film screens with phones, and lower refresh rates produce visible scan lines in their videos.
Theme Parks and Entertainment Districts – Content Runs All Day

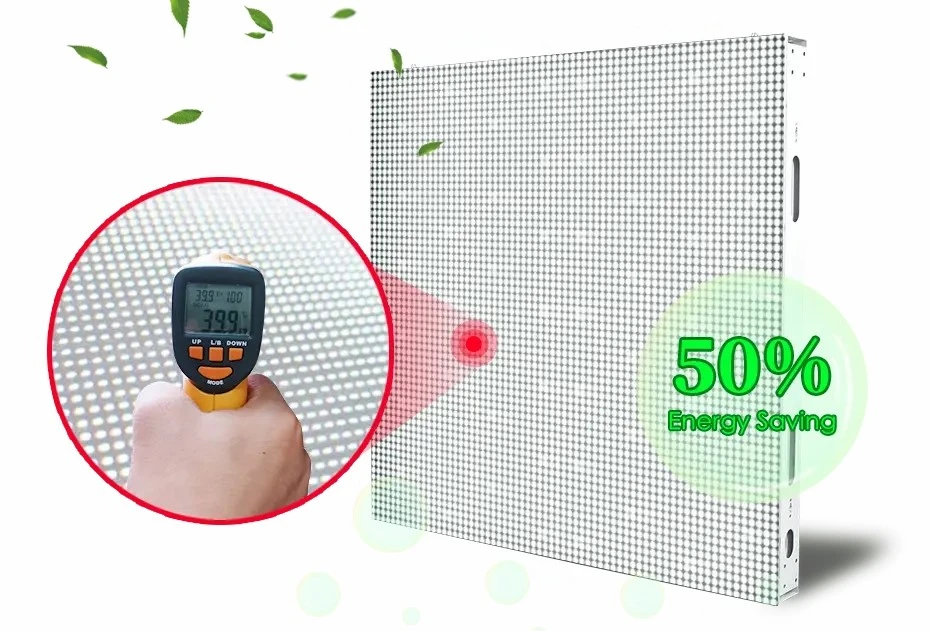

Theme park screens typically operate 12–16 hours daily. Heat buildup is the limiting factor. The common cathode design keeps the panel at around 39°C rather than 50°C, which extends component life and reduces the need for active cooling. The 50% energy saving is not a marketing figure in this context - it is the difference between a viable and an unviable electricity bill at scale.
Highway and Long-Distance Billboards – Size and Brightness Dominate
At highway viewing distances, fine pixel pitch adds cost without visible benefit. P8 and P10 are the practical choices. The constraint shifts to structural load and wind resistance. The 26kg panel weight reduces steel frame requirements, which matters when the screen is mounted on an existing structure with limited load capacity.
Matching Panel Spec to Site Type
|
Site Type |
Typical Viewing Distance |
Recommended Pitch |
Key Constraint |
|
Seaside promenade |
5–20 m |
P6.667–P8 |
Corrosion resistance |
|
Pedestrian mall |
3–15 m |
P5.7–P6.667 |
Mixed viewing distance |
|
Theme park |
5–25 m |
P6.667–P8 |
Continuous operation, heat |
|
Highway billboard |
20–50 m |
P8–P10 |
Structural load, wind |
|
Feature/close-view |
3–8 m |
P4.44 |
Pixel structure visibility |
What to Tell Us Before Ordering
Share the site location, average viewing distance, daily operating hours, and mounting structure. These four answers determine pitch, panel size, and frame requirements.
Project Cases

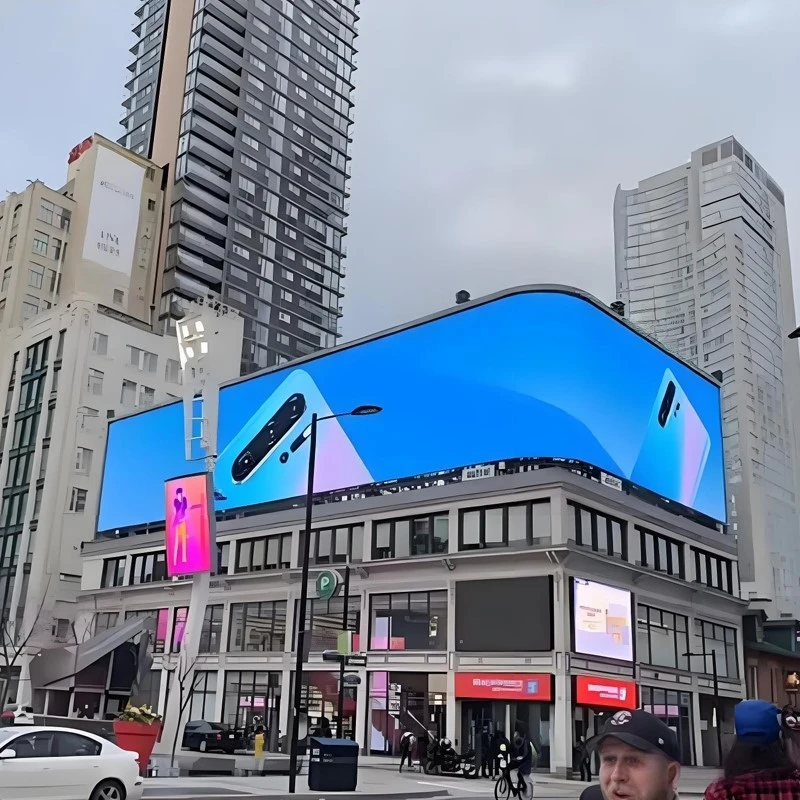

This large curved outdoor LED display wraps around the corner of a multi-story commercial building in a bustling city centre. The seamlessly curved panel showcases vibrant smartphone advertising content with smooth colour gradients, delivering sharp visuals to audiences from multiple street directions. Equipped with high brightness and stable weatherproof structure, the screen performs reliably under changing outdoor daylight conditions. Perfectly fitted along the building's architectural curve, this LED billboard serves as a premium landmark advertising medium in busy downtown districts. It maximizes exposure for brand campaigns, capturing the attention of heavy pedestrian and vehicle traffic.
Product Reference Photo
Product Reference Video
