Shenzhen ABXLED Industrial Co., Ltd. is one of the leading manufacturers and suppliers of outdoor led screen in China. We are committed to providing high quality customized products with competitive price. If you're going to wholesale advanced outdoor led screen, welcome to get quotation from our factory.
ABXLED OA Series – Engineering Excellence: Fire-Proof Aluminum Panel, 50% Energy-Saving, IP65 Waterproof, and -40°C to +80°C Working Range for Extreme Outdoor 3D Advertising
Key Benefits
The ABXLED OA Series is engineered for the most demanding outdoor advertising applications, combining fire-proof aluminum LED modules with exceptional energy efficiency and extreme climate durability. The aluminum frame construction is non-flammable, easy to clean, and 100% recyclable – setting a new standard for safety and sustainability in outdoor LED displays. The ultra-light 25kg cabinet and 92mm ultra-thin profile reduce structural load and simplify installation, while the 50% energy-saving design keeps operating temperature at just 39°C – significantly lowering electricity costs. With IP65 waterproof protection on both front and rear, rustproof aluminum construction, and a working temperature range of -40°C to +80°C, the OA Series performs reliably in any environment – from coastal saltwater locations to desert heat and arctic cold. Optional curved equipment enables stunning naked-eye 3D visual effects, making this display the ideal choice for immersive outdoor advertising.
Main Features
- Fire-Proof Aluminum LED Modules: Non-flammable, 100% recyclable – superior safety and sustainability.
- 50% Energy-Saving: Advanced aluminum heat dissipation – operating temperature only 39°C.
- Ultra-Light & Ultra-Thin: 25kg per cabinet, 92mm total thickness – easy installation.
-
IP65 Waterproof (Front & Rear): Fully dustproof and waterproof – rustproof aluminum for harsh environments.
-
Wide Working Temperature: -40°C to +80°C – reliable in extreme climates.
-

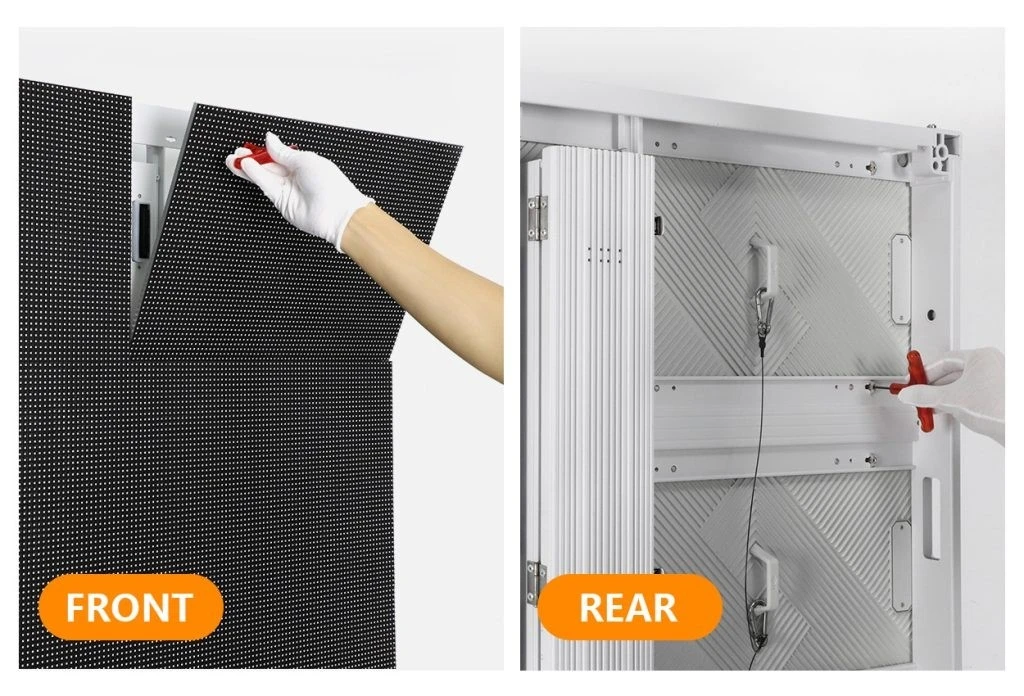

Front & Rear Maintenance: Tool-based module assembly and disassembly from both sides.
-
Naked-Eye 3D Capability: Optional curved equipment for seamless 3D displays.
-
CE, RoHS, FCC, LVD Certified: Guaranteed safety and compliance.
-
3-Year Warranty: Comprehensive coverage with lifetime module repair support.

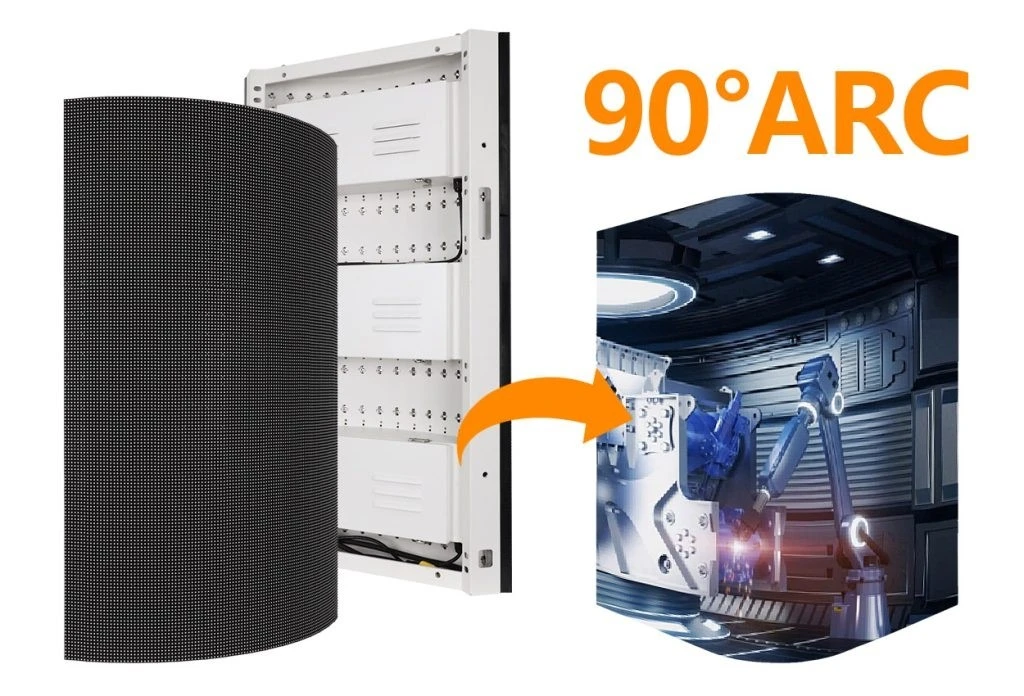

3D and Curved Configuration
By adding the optional equipment, the OA Series panels can form a seamless curved display, producing naked-eye 3D effects. All models support this configuration.
Technical Specifications
|
Parameter |
Specification |
|
Panel Material |
Aluminum – fire-proof, recyclable |
|
Cabinet Weight |
25kg |
|
Cabinet Thickness |
92mm |
|
Module Size |
480×320mm |
|
Protection |
IP65 (front & rear) |
|
Energy Savings |
50% |
|
Operating Temp |
-40°C to +80°C |
|
Display Temp |
39°C (vs. 50°C conventional) |
|
Certifications |
CE, RoHS, FCC, LVD |
Application Scenarios
- Extreme climate outdoor advertising
- Coastal and seaside locations
- Building facades and architectural displays
-
Shopping mall exteriors
-
Event and festival installations

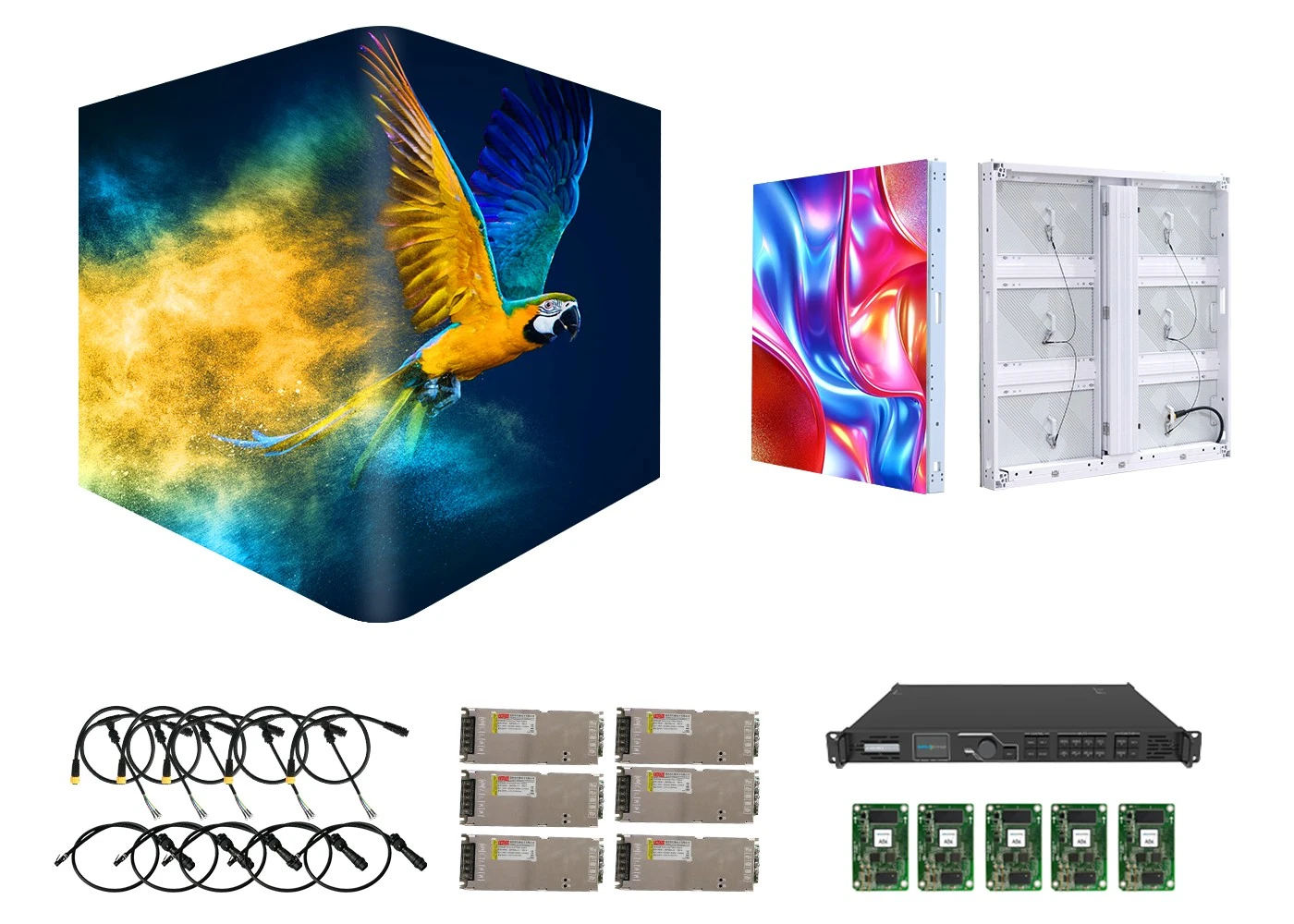

Optional Accessories & Custom Options
- Naked-eye 3D curved equipment
- Custom cabinet sizes
- Wall-mounting, hanging, and standing hardware
-
Spare module kits, power supplies, controller cards
-
Free LOGO printing
-
Extended warranty
-
Door-to-door delivery (DDP)
Project Cases

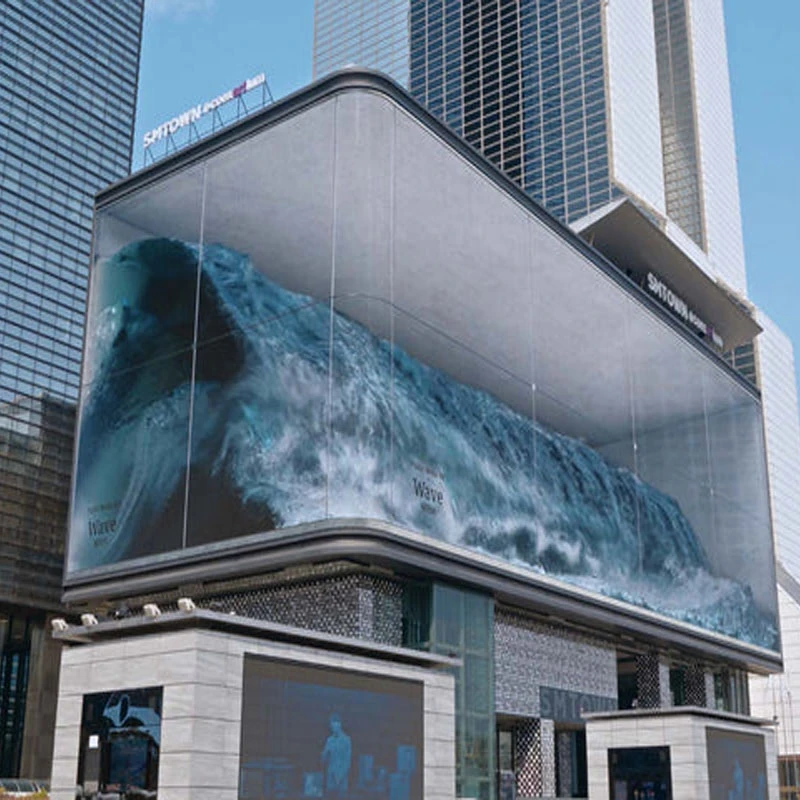

This large curved corner naked-eye 3D LED screen is installed on the facade of a downtown commercial building. The seamless wraparound display presents a spectacular giant ocean wave effect, creating a powerful immersive visual illusion as if seawater is crashing out from the screen. Featuring high brightness, wide viewing angle and outstanding grayscale performance, it maintains vivid and delicate imagery even under strong daylight. Integrated with the building's architectural contour, this 3D LED solution serves as a landmark media for shopping centres. It helps brands attract massive pedestrian attention, generate social media buzz and greatly enhance commercial value for urban landmark projects
FAQ
Q1: What is the energy savings?
50% compared to conventional displays.
Q2: What is the working temperature range?
-40°C to +80°C.
Q3: What is the protection rating?
IP65 front and rear.
Q4: Is the display fire-proof?
Yes – aluminum modules are non-flammable.
Product Reference Photo
Product Reference Video
